Premium rework station with pneumatic pump (13 pages)
Summary of Contents for jbc RBS
Page 1

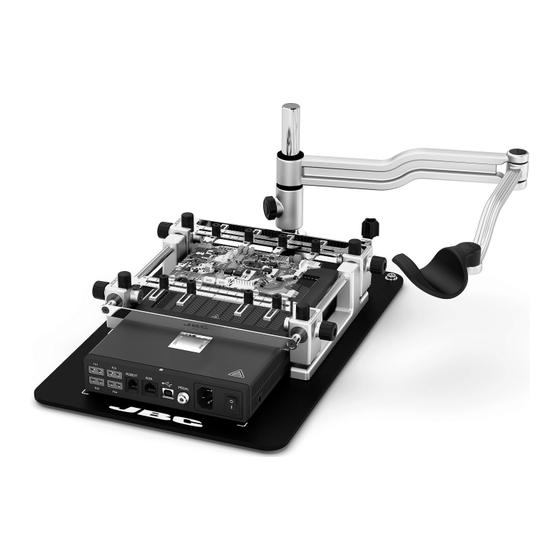

Rework Bench for PCBs up to 13 x 13 cm / 5 x 5 in This Plug & Play Guide corresponds to the following references: Ref. RBS-9A (100 V) RBS-1A (120 V) RBS-2A (230 V) Station Station Video Guide More Information at the...
Page 2
Packing List The following items are included according to purchased station reference: Preheater Set Articulated Hand Rest for PCBs up to 13 x 13 cm / 5 x 5 in ........1 unit for PHSEK Preheater Set ............1 unit Ref.
Page 3
para manuales - color gris 200 mm Exploded View 130 mm 130 mm 100 mm PHSS Support for PCB 80 mm 60 mm 50 mm 40 mm PHSE Preheater Unit Articulated Hand Rest for PHSEK Preheater Set Console...
Page 4
Specifications Rework Bench for PCBs up to 13 x 13 cm / 5 x 5 in Ref. RBS-9A Ref. RBS-1A Ref. RBS-2A - Package Dimensions / Weight: 495 x 415 x 395 mm / 14.70 kg (L x H x W) 19.49 x 16.34 x 15.55 in / 32.41 lb...
