NAD M2 Owner's Manual
  1. Manuals
  2. Brands
  3. NAD Manuals
  4. Amplifier
  5. M2 - CONNECTING A SUBWOOFER
  6. Owner's manual

NAD M2 Owner's Manual

Direct digital amplifier
Hide thumbs Also See for M2:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Manual
M2
®
Direct Digital Amplifier
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for NAD M2

Summary of Contents for NAD M2

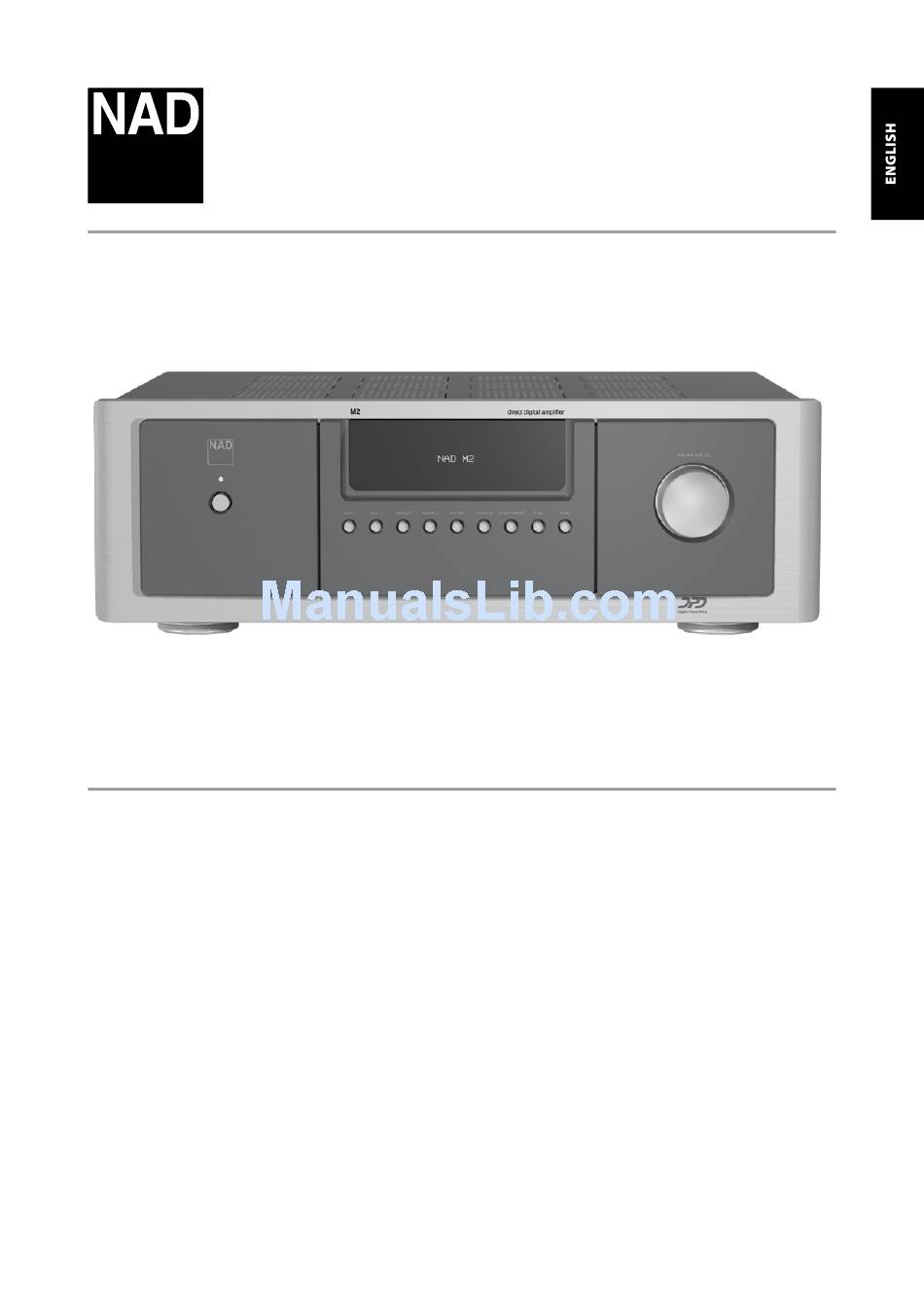

  • Page 1 ® Direct Digital Amplifier Owner’s Manual...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Save theSe inStructionS for later uSe. 14 outdoor antenna grounding - If an outside antenna or cable system follow all warningS and inStructionS marked on the is connected to the product, be sure the antenna or cable system is audio equipment.
  • Page 3 Changes or modifications to this equipment not expressly approved by warning NAD Electronics for compliance could void the user’s authority to operate TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS this equipment.
  • Page 4 Your model number (now, while You can See it) The model and serial number of your new M2 are located on the back of the cabinet. For your future convenience, we suggest that you record these numbers here: Model no: .

  • Page 5: Getting Started

    Please save the box and all of the packaging in which your M2 arrived. NAD M2 Direct Digital Amplifier, we provide the following QUICKSTART Should you move or otherwise need to transport your M2, this is by far the instructions to get you underway.

  • Page 6: Identification Of Controls

    10 11 1 StandbY led: This indicator will light up amber when M2 is in 10 balanced: Select the source connected to the BALANCED L and standby state. When M2 is at ON state, this indicator will illuminate blue.

  • Page 7: Renaming A Source Input

    Output level is fixed and the M2’s Volume Control is • You can terminate the renaming process by pressing any other front panel buttons (except “loop”, “menu” or the current source input being bypassed.

  • Page 8: Rear Panel

    ATTENTION! Please make sure that the M2 is powered OFF or unplugged before making any connections. It is also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections. 1 balanced: Connect XLR audio source to these connectors. Ensure The processed signal from the Mac or processor is then sent out that proper pin configurations are followed –...

  • Page 9: Spade Connectors

    +12V trigger input. This IMPORTANT NOTICE output will be 12V when the M2 is ON and 0V when the unit is either OFF or in standby mode. Do not use any substitute fuses of different types, ratings or values.
  • Page 10 There maybe other grounding conductor points in your home. Consult with a licensed electrician to properly locate or correctly install a grounding conductor in your home. NAD is not responsible for any malfunction, damage or costs associated with the installation, connection or grounding of your M2.
  • Page 11 T 585 and DVD section of L 54, VISO FIVE and VISO TWO. cd plaYer control (for use with compatible nad cd or Sacd/cd players) : Set the DEVICE SELECTOR to “1” in order to gain access to these buttons. repeat: Repeat track, file or whole disc.

  • Page 12: Troubleshooting

    • IR transmitter window on the remote control or IR • Check IR windows and ensure clear line-of- receiver window on the front panel is obstructed. sight from remote control to M2. • M2 front panel is in very bright sunlight or ambient • Reduce sunlight/room lighting. light.

  • Page 13: Specifications

    20.2 kg Shipping weight 25.8 kg * - Gross dimensions include feet, volume knob and extended speaker terminals. Specifications are subject to change without prior notice. For updated documentation and features, please log onto www.NADelectronics.com for the latest information about M2.
  • Page 14 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
