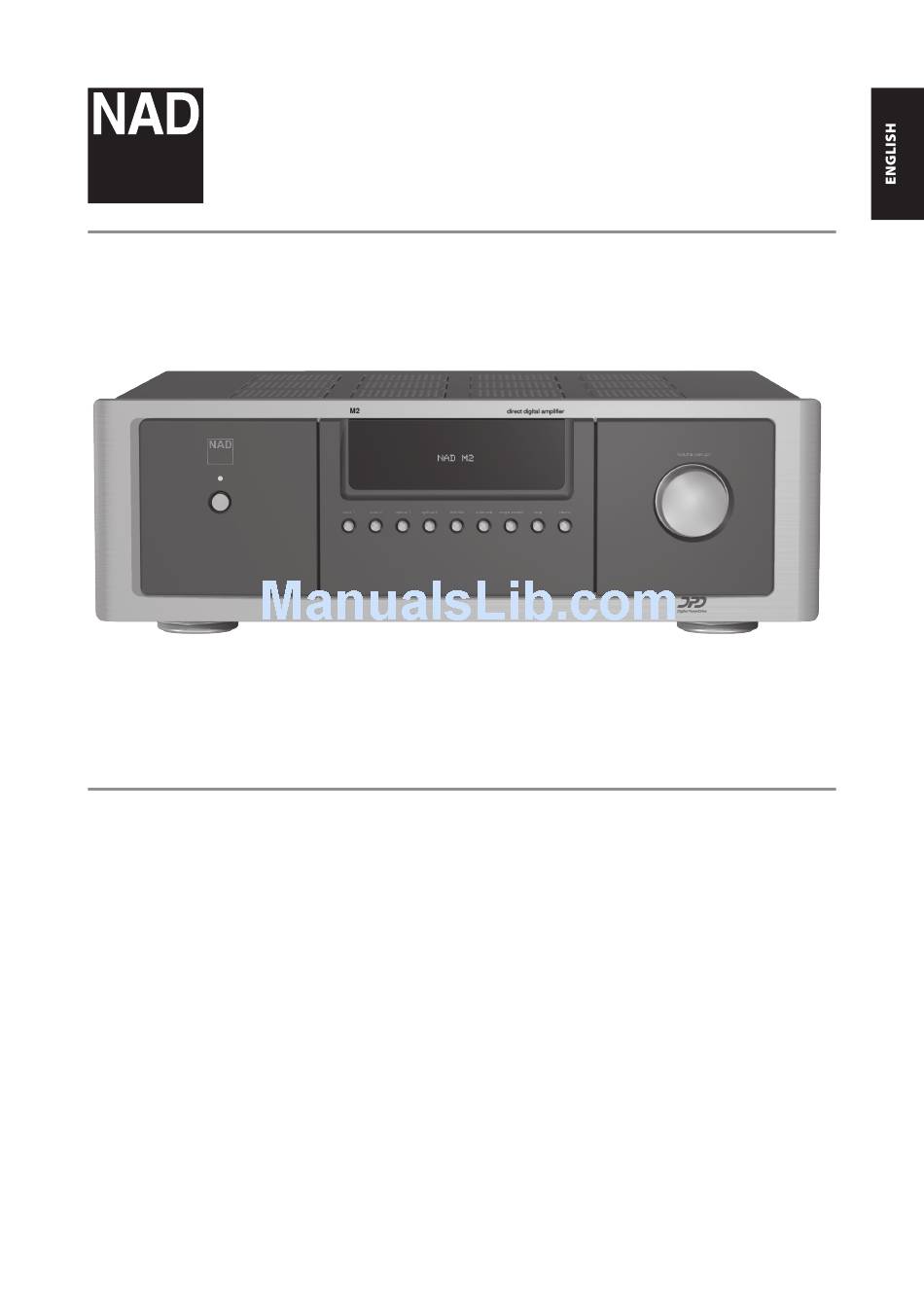

  • Page 1 ® Direct Digital Amplifier Owner’s Manual...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR LATER USE. 14 Outdoor Antenna Grounding - If an outside antenna or cable system FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE is connected to the product, be sure the antenna or cable system is AUDIO EQUIPMENT.
  • Page 3 Changes or modifications to this equipment not expressly approved by WARNING NAD Electronics for compliance could void the user’s authority to operate TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS this equipment.

  • Page 4: Notes On Environmental Protection

    RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new M2 are located on the back of the cabinet. For your future convenience, we suggest that you record these numbers here: Model no: .

  • Page 5: Getting Started

    Please save the box and all of the packaging in which your M2 arrived. NAD M2 Direct Digital Amplifier, we provide the following QUICKSTART Should you move or otherwise need to transport your M2, this is by far the instructions to get you underway.

  • Page 6: Identification Of Controls

    FRONT PANEL 10 11 1 STANDBY LED: This indicator will light up amber when M2 is in 10 BALANCED: Select the source connected to the BALANCED L and standby state. When M2 is at ON state, this indicator will illuminate blue.

  • Page 7: Renaming A Source Input

    (“B” from the alphabetical amplifier. Output level is fixed and the M2’s Volume Control is list). The ranges of characters available are 0-9, _ (space) and A-Z.

  • Page 8: Rear Panel

    REAR PANEL ATTENTION! Please make sure that the M2 is powered OFF or unplugged before making any connections. It is also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections. 1 BALANCED: Connect XLR audio source to these connectors. Ensure The processed signal from the Mac or processor is then sent out that proper pin configurations are followed –...
  • Page 9 +12V trigger input. This replace the fuse with the same type, size, and specification. output will be 12V when the M2 is ON and 0V when the unit is either OFF or in standby mode.
  • Page 10 M2. • The grounding wire is not supplied with your M2. DIGITAL POWERDRIVE The M2 uses NAD’s proprietary Digital PowerDrive™ amplifier technology that allows substantial additional power for short periods of time. Research has shown that the peak to average power required to faithfully reproduce music can be a factor of ten for well recorded performances.
  • Page 11 IDENTIFICATION OF CONTROLS M2 REMOTE CONTROL 1 ON: Switch M2 ON. 2 OFF: Switch M2 OFF. 3 COAX 1-2, OPT 1-2, AES/EBU: Select Coaxial, Optical or AES/EBU digital source input. 4 PRO LOOP: Activate or deactivate “loop” feature. 5 BALANCED: Select BALANCED source input.

  • Page 12: Troubleshooting

    • IR transmitter window on the remote control or IR • Check IR windows and ensure clear line-of- receiver window on the front panel is obstructed. sight from remote control to M2. • M2 front panel is in very bright sunlight or ambient • Reduce sunlight/room lighting. light.

  • Page 13: Specifications

    Net weight 20.2kg Shipping weight 25.8kg *- Gross dimensions include feet, volume knob and extended speaker terminals. Specifications are subject to change without prior notice. For updated documentation and features, please log onto www.NADelectronics.com for the latest information about M2.
  • Page 14 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
