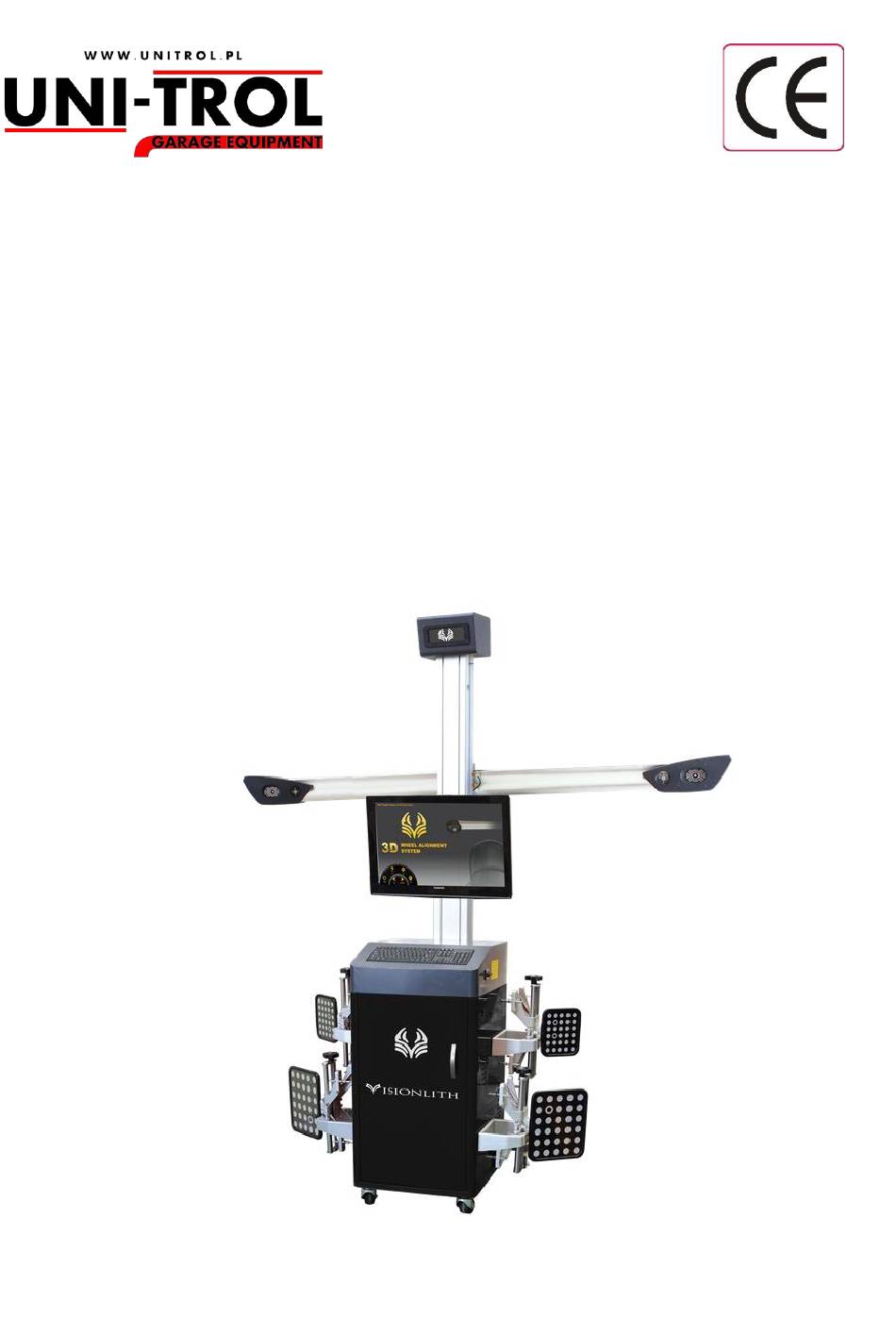

- Page 1 3D WHEEL ALIGNMENT INSTALLATION MANUAL Version 1.1 VISIONLITH...
- Page 2 SAFETY INSTRUCTIONS IMPORTANT!! SAVE THESE INSTRUCTIONS Risk of electrical shock. • Do not operate equipment with a damaged power cord or if the equipment has been dropped or damaged, until it has been examined by a qualified service person. • If an extension cord is necessary, a cord with a current rating equal to or greater than that of the equipment should be used.
- Page 3 Chapter Ⅰ Installation Environment Installation Site Equipment Working Environment 1.1.1 Working Conditions • Temperature：-10℃~45℃。 • Relative humidity：≦90%。 • Power：AC220×（1±10%）V，50/60×（1±2%）Hz。 • Ambient pressure：70kPa—106kPa。 1.1.2 Working Requires • Do not use the equipment in dusty places. Keep the working area and equipment clean.
- Page 4 Working Space Requirements best working zone space of four-wheel aligner shall 6800mm*4000mm*3000mm, as shown in the following Fig. L1 = L2 ， L3 = L4 L=2.0m-3.0m ,...
- Page 5 Alignment Platform Requirements 1.3.1 The two platforms level requires Parameter Best range Maximum range a. Level difference between ≦2mm ≦10mm platforms b. Front and Rear level difference in the ≦4mm ≦4mm single platform c. Diagonal level difference between two ≦4mm ≦10mm platforms Recommendation platform...
- Page 6 Chapter Ⅱ Hardware Installation Products Type with Explosion Diagram cabinet clamp holder monitor beam transition block column Power supply unit column cap column cover camera beam control board cover cabinet base plate control board trundle target with clamp...
- Page 7 2. Packing List Checking 2.1. Before installation, please check the goods carefully. See whether the outer package is damaged, the goods is complete or same as the goods list. If anything abnormal occurs, please timely communicate with us for solution. （Note：the package quantity should be according to the real contract）.
- Page 8 Pay attention: Please make sure all sticker Equipment series number should be same. Remove the packaging After inspection, open the outer packaging of the equipment in sequence.
- Page 9 3. Assembly of wheel alighment 3.1. Fix wheels to the cabinet base plate 3.2. Fix the column on the big base with the corresponding bolts. (Applicable to V type ) Other type columns are fixed with anchor bolts...
- Page 10 3.3. Align the screws on the column with the holes in the cabinet 3.4. Mount the cabinet on cabinet base plate and fix screw 3.5. Remove plastic cover from back column...
- Page 11 3.6. After open the case, carry out the Column and placed horizontally with slide rails upwards. Install the beam adapter on the corresponding bolt, then fixed it with nuts 3.7. Put the camera cables, power cables and signal cables through the adapter block, and then fixed beam to it with T-bolts tighten（Applicable to III、IV、V types as shown in square）...
- Page 12 3.10. Before installing the column cap, if it’s electrical aluminum column, please make sure the steel wire rope on the guide wheel and remove the bolt to fix the counterweight. 3.11. Fix the back cap to the top of column with the hexagon screws M4*4. (For all types) 3.12.
- Page 13 3.13. TV installation Install TV on the specify position, TV hanging board is adjustable (apply to all types with TV) Pay attention: after connect with power, adjust TV setting to full screen, please refer the following picture :...
- Page 14 3.14. Install computer PC and connect to electronic power box Cables and wires connection refers to the below diagram: main cable from camera connect to USB 3.0 (Blue) and to the 5pin socket in power box Connect keyboard and mouse Connect USB HASP Autodata for USB 3.15.
- Page 15 3.16. Lubricate the slides in the elevator moving areas 4. The software is installed and ready to go 4.1 Printer installation Put the printer in specified position of the cabinet, install and adjust the printer according to the manual that comes with it. Note: please pay attention to the page size with A4.
- Page 16 5. Ground Connection Connection of ground wire: connect all the ground wires of computer host power supply、 electrics control box to ground wire connection port of column or cabinet.Ground wire connection port is connecting to ground pin by a 10m length ground wire, making sure earth connection reliable and prevent the affection of static.
- Page 17 6. Steering Wheel Holder and Brake Pedal Depressor Steering wheel holder Brake Pedal Depressor (explosive view)
- Page 18 Chapter III Equipment Testing Connection Checking and Power Test 1.1 To open the switch on column or cabinet, voltage protector works well (range AC 185~275V). Waiting for 55s, green light on voltage protector is on and equipment power supply works normally. See below picture: Switch Voltage protector Column / Cabinet...
