NAD C725BEE Specifications

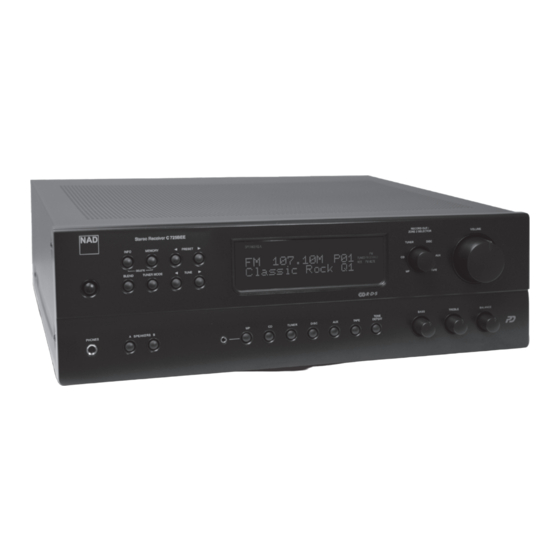

C 725BEE Stereo Receiver
> P O S I T I O N I N G
The NAD C 725BEE is in a category of one; unique in both performance and capability. Most receivers available today are digital surround sound
AV Receivers. While these are appropriate for Home Theatre use, with very few exceptions they cannot match the performance of a good stereo
amp when driving stereo speakers. The C 725BEE, by contrast, is an analogue design based entirely on our award winning C 325BEE Integrated
Amplifier. By combining all the most desirable features in a one box solution, we can offer the performance of separate high end components and
the convenience of a receiver.
> F E A T U R E S
• 50W x 2 Continuous Power into 8 ohms
• 102W, 148W, 205W, IHF Dynamic
power into 8, 4 and 2 ohms, respectively
• PowerDrive TM
• AM/FM Tuner with 40 station presets
• RDS data service for FM
• Controls and Plays DAB (Band III and Band L)
with Optional DB 1 Module
(230V Version Only)
• Multisource Zone 2 with independent line
level output
• Speaker A and B switching
• SR 8 System Remote control
• ZR 5 Zone Remote
• Front Panel MP Input for attaching
portable MP3 Players
• Data port for use with optional
NAD dock for iPod
All this performance and convenience comes at a far more affordable price than separate components would cost.
• Headphones socket
• Relay Input Switching
• Toroidal Power transformer
• 7 Line inputs
• All discrete circuitry utilizing Class A
gain modules
• Short signal path from input to output
• All sockets Gold plated
• Tone controls defeat switch
• Main-amp input & pre-amp output
• Subwoofer Output
• Soft Clipping
• IR In & Out
• 12 volt trigger output
• RS-232 serial interface connects to
advanced control and automation systems
• <1 watt Standby Consumption
TM
> D E T A I L S
Performance
This is a true BEE (Bjorn Erik Edvardsen) design
with all his latest developments including:
PowerDrive, Distortion Canceling Circuit, BEE
Clamp and an all new and more highly refined
circuit layout. Based on a high current toroidal
transformer – the same type found on our own
high end Masters Series – the C 725BEE can
provide a healthy, ultra low distortion 50 watts
of continuous power.
But more importantly, on a short term dynamic
basis (which is the way music reproduction
demands the power to be delivered) the
C 725BEE can provide as much as 200 watts
depending on the characteristics of the
loudspeaker being driven. If, for any reason,
more power is asked for than the C 725BEE
can provide the exclusive Soft Clipping circuit
prevents the harsh grating sound of hard
clipping distortion.
continued>
