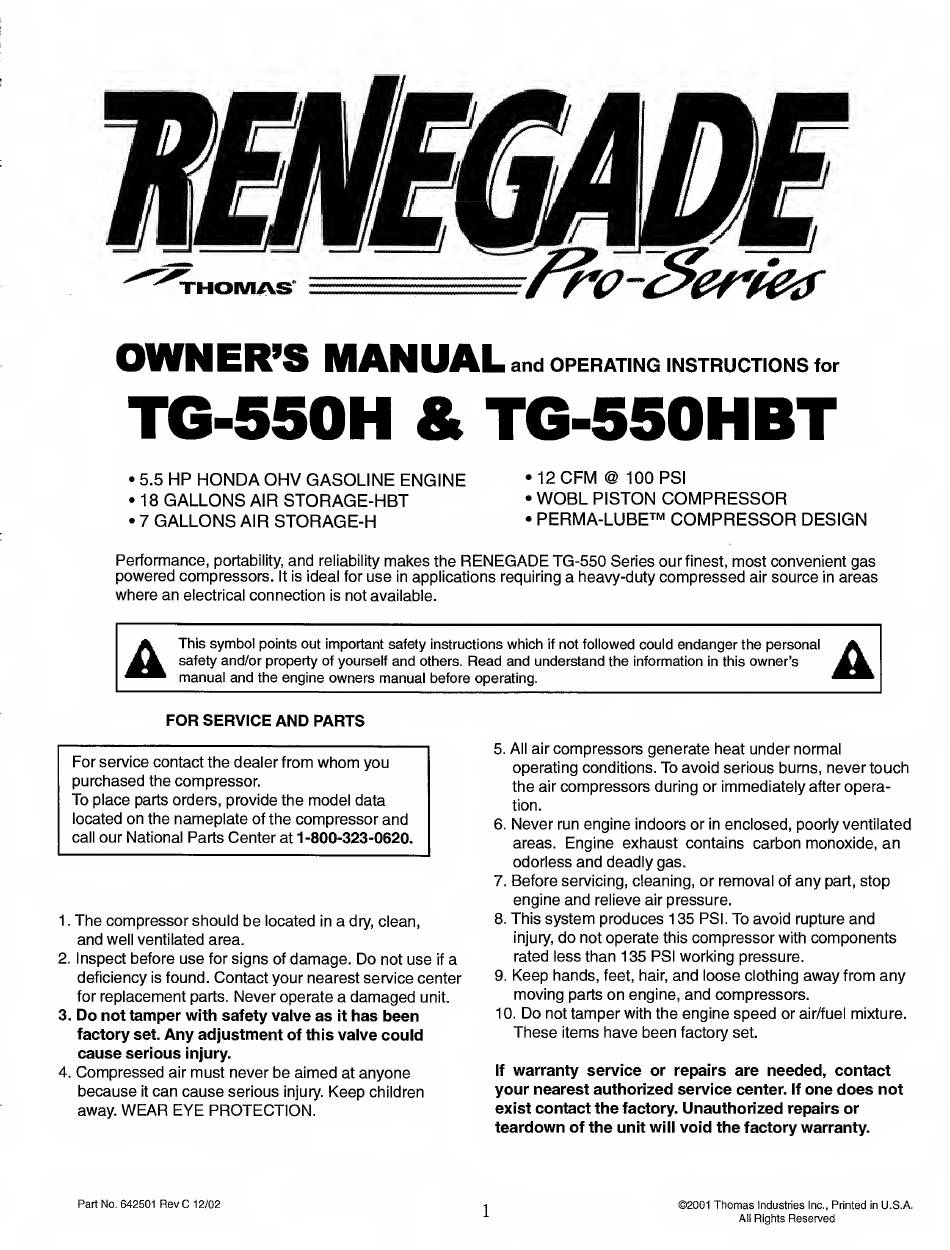

Thomas Renegade PRO TG-550H Owner's Manual

THOMAS'
fro
-c^erter
OWNER'S
MANUAL
and
OPERATING INSTRUCTIONS
for
TG-550H
&
TG-550HBT
5.5
HP
HONDA OHV
GASOLINE ENGINE
18
GALLONS
AIR
STORAGE-HBT
7
GALLONS
AIR
STORAGE-H
•12CFM
@
100 PSI
•
WOBL
PISTON
COMPRESSOR
•
PERMA-LUBE™ COMPRESSOR
DESIGN
Performance,
portability,
and
reliability
makes
the
RENEGADE
TG-550
Series our
finest,
most
convenient gas
powered compressors.
It
is
ideal
for
use
in
applications requiring
a heavy-duty compressed
air
source
in
areas
where an
electrical
connection
is
not available.
A
This
symbol
points out important safety
instructions
which
if
not followed could
endanger
the personal
safety
and/or property
of
yourself
and
others.
Read
and
understand the information
in
this
owner's
manual and
the engine owners manual
before operating.
A
FOR
SERVICE
AND
PARTS
For service contact the dealer from
whom
you
purchased the compressor.
To
place
parts orders,
provide the model data
located
on
the
nameplate
of
the
compressor and
call
our
National Parts
Center
at
1-800-323-0620.
1
.
The
compressor
should
be
located
in
a
dry,
clean,
and
well ventilated area.
2.
Inspect before use
for
signs
of
damage.
Do
not
use
if
a
deficiency
is
found.
Contact your nearest
service center
for
replacement
parts.
Never
operate
a
damaged
unit.
3.
Do
not
tamper
with safety valve as
it
has been
factory
set.
Any
adjustment
of this
valve could
cause
serious
injury.
4.
Compressed
air
must
never
be aimed
at
anyone
because
it
can cause
serious
injury.
Keep
children
away.
WEAR
EYE PROTECTION.
5. All air
compressors
generate heat under normal
operating
conditions.
To
avoid serious burns,
never touch
the
air
compressors
during or immediately
after
opera-
tion.
6.
Never
run
engine
indoors or
in
enclosed,
poorly ventilated
areas.
Engine exhaust contains carbon monoxide,
an
odorless
and
deadly gas.
7.
Before
servicing, cleaning,
or removal
of
any
part,
stop
engine and
relieve
air
pressure.
8.
This
system produces 135
PSI.
To
avoid rupture
and
injury,
do
not
operate
this
compressor
with
components
rated less
than
1
35 PSI working
pressure.
9.
Keep
hands,
feet, hair,
and
loose
clothing
away
from
any
moving
parts
on engine,
and
compressors.
10.
Do
not
tamper
with
the engine
speed
or
air/fuel
mixture.
These
items
have been
factory
set.
If
warranty service
or repairs are
needed, contact
your
nearest authorized service center.
If
one does
not
exist contact the
factory.
Unauthorized
repairs or
teardown
of
the
unit
will
void the factory warranty.
Part No.
642501
RevC
12/02
1
©2001 Thomas
Industries
Inc.,
Printed
in
U.S.A.
All
Rights
Reserved
