VADO MATRIX AXCES AX-MAT-100/CC-CP Installation & User Manual page 5

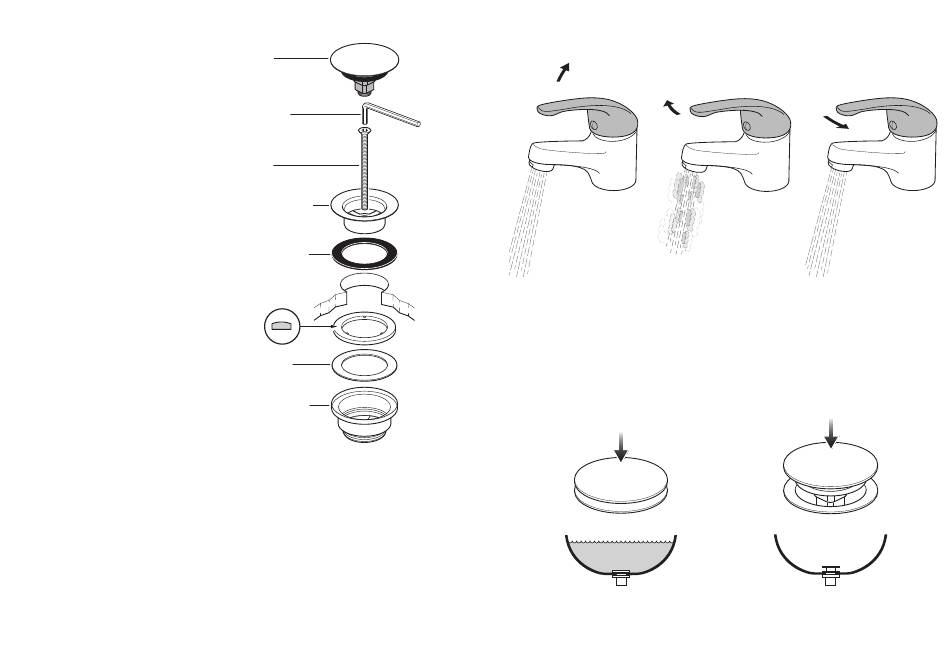

Installation clic-clac waste
Disassemble the push waste.
Unscrew the plug from the waste flange.
Remove the bolt from the waste flange
and body.
Slide the flange seal over the waste
flange, and push the bolt down through
the waste flange.
Place the waste flange with seal through
the hole in the basin and position.
From beneath place the washer then the
base ring into the waste body (note the
curved surface of the base ring should be
to the top).
Position the waste body and bolt the
flange into the waste body until tight
using the hex key.
CAUTION: Do not over tighten as this may
damage the parts and/or the basin.
Screw in the plug into the flange.
Check for leaks.
8
Plug
Hex key
Bolt
Waste flange
Flange seal
Base ring
Washer
Waste body
Operation - mixer
On
Hot
Moving the mixer lever Moving the mixer lever
upwards will increase the from right to left will
flow of water. increase the water
Operation clic-clac waste
Push down to close the plug.
Cold
Moving the mixer lever
from left to right will
decrease the water
temperature. temperature.
Push down again to open the plug.
9
