Razor ECO-SMART Replacement Procedures

Tools Required:
A. Phillips head screwdriver
B. 5mm Allen wrench
C. 10mm open wrench
D. 8mm open wrench
WARNING
CAUTION: To avoid potential shock or other injury, turn power switch OFF and
disconnect charger before removing or installing the batteries. Failure to follow these steps
in the correct order may cause irreparable damage.

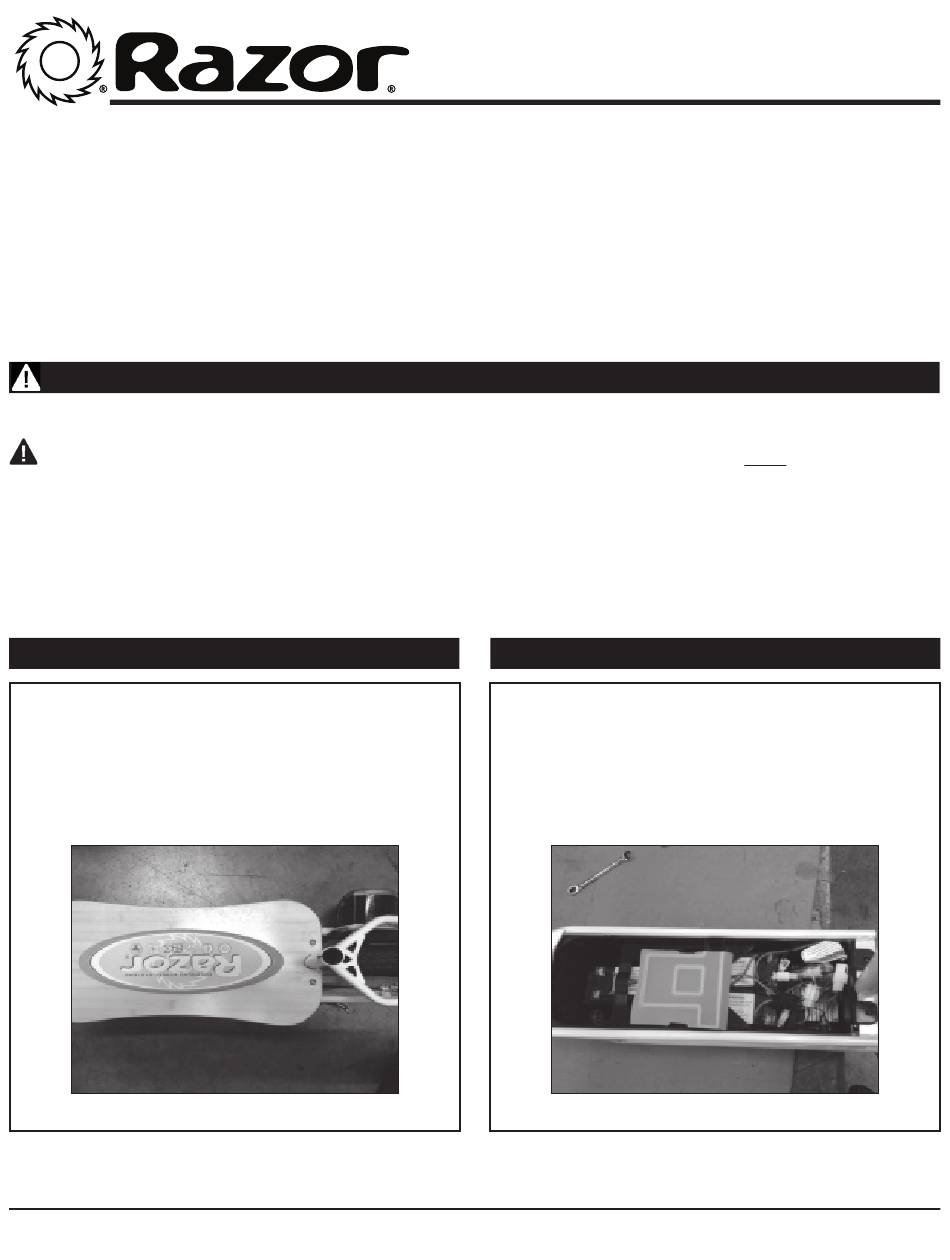

Step 1
Remove the four hex screws on the deck using a
5mm Allen wrench(note) the two screws on the
front are held by size 10mm nuts.
Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
( )
Not included
Figure 1
MOTOR REPLACEMENT PROCEDURES
Step 2
Remove the deck from the unit and lift and
remove the plastic battery holder.
ECO-SMART
Figure 2
1
