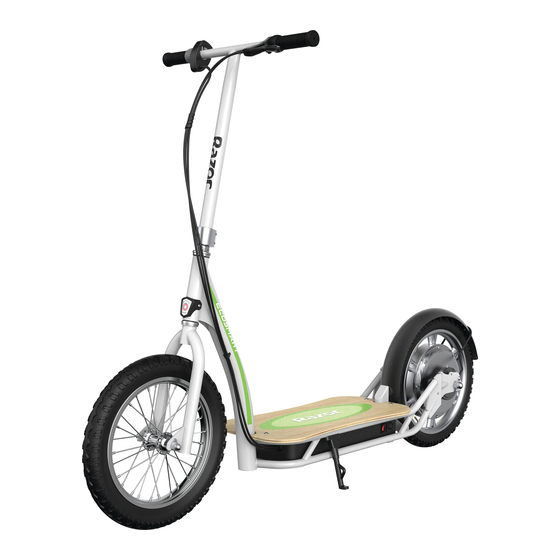

Razor ECO SMART Replacement Procedures

Tools Required:
A. Phillips head screwdriver
B. Flat head screwdriver
C. 5mm Allen wrench
D. 3mm Allen wrench
E. 10mm open wrench
WARNING
CAUTION: To avoid potential shock or other injury, turn power switch OFF and
disconnect charger before removing or installing the batteries. Failure to follow these steps
in the correct order may cause irreparable damage.
Step 1
Turn the unit off, and using a 5mm Allen wrench
and a 10mm open wrench remove the four bolts
on your deck, the bolts at the front are held by
two 10mm nuts.
Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00am - 5:00pm Pacific Time.
( )
Not included
Figure 1
THROTTLE REPLACEMENT PROCEDURES
Step 2
Disconnect the batteries and remove from the
tray to get better access to the throttle.
ECO SMART
Figure 2
1
