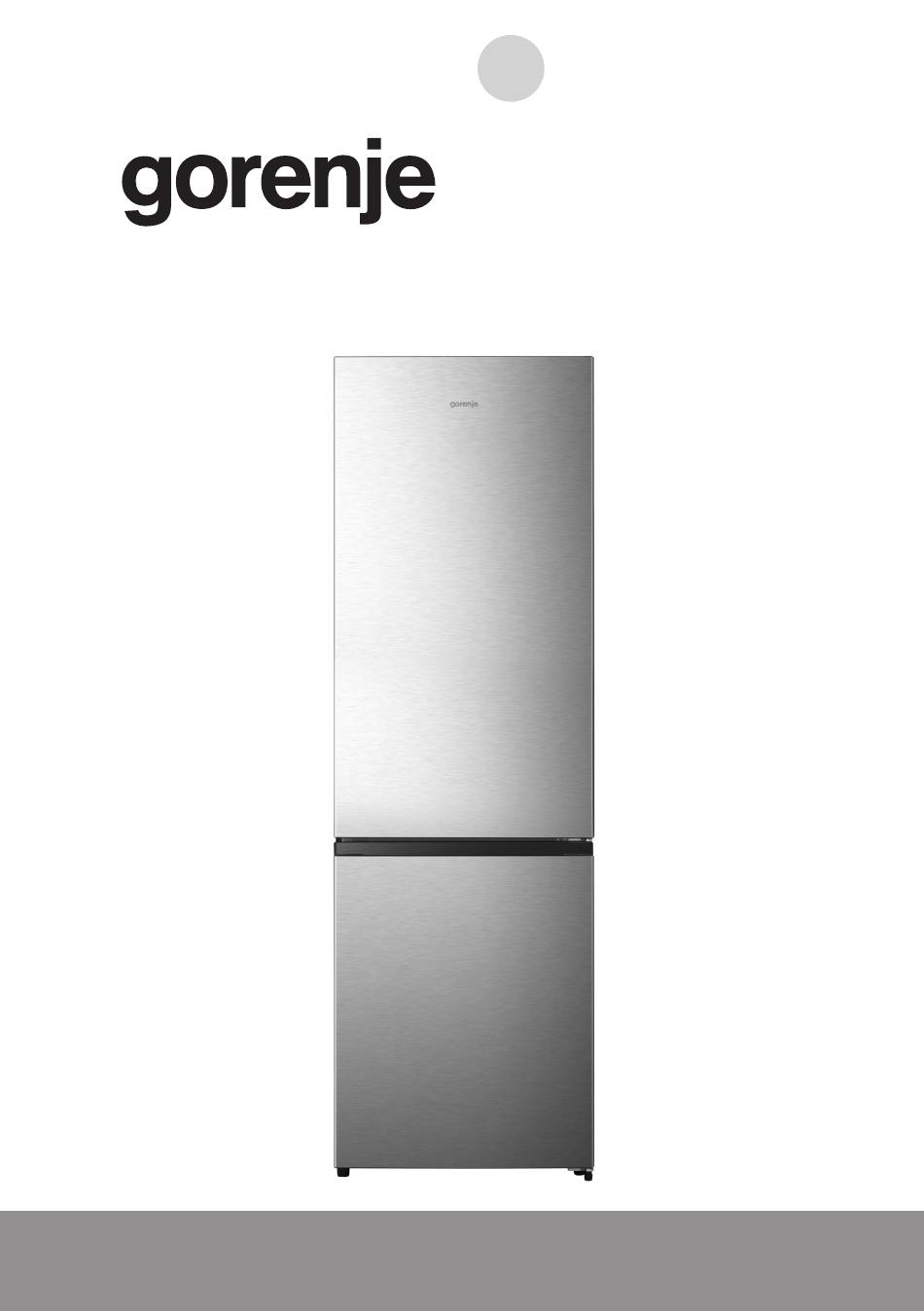

- Page 1 INSTRUCTION MANUAL FOR REFRIGERATOR- FREEZER www.gorenje.com www.gorenje.com...
- Page 2 Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. http://www.gorenje.com Important safety warning...
- Page 3 CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 SAFETY AND WARNING INFORMATION APPLIANCE 11 INSTALLING YOUR NEW APPLIANCE DESCRIPTION 13 APPLIANCE DESCRIPTION 14 CHANGING THE DOOR OPENING DIRECTION 22 OPERATING THE APPLIANCE 24 USING YOUR APPLIANCE 28 HELPFUL HINTS AND TIPS DEFROSTING AND CLEANING 30 CLEANING AND CARE...
- Page 4 IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features.
- Page 5 According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 6 • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
- Page 7 flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.
- Page 8 • You must not operate the appliance without the interior lighting lamp cover. • The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C.
- Page 9 • Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.
- Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
- Page 11 INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the first time, you should review the following tips. Ventilation of appliance In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat.
- Page 12 Leveling of appliance • For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted, You can adjust them by your fingers or a suitable spanner. • To allow the doors to self-close, tilt back the top backwards for abaut 10 mm. 1 1 0 0 m m m m...
- Page 13 APPLIANCE DESCRIPTION 1. Cabinet 2. Control unit&LED light 3. Glass shelves 4. Convert FreshZone 5. Crisper cover 6. Convert FreshZone 7. Upper drawer 8. Middle drawer 9. Lower drawer 10. Adjustable feet 11. Refrigerator door 12. Refrigerator door gasket 13. Upper rack 14.
- Page 14 CHANGING THE DOOR OPENING DIRECTION The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires. Warning! When reversing the door, the appliance must not be connected to the mains.
- Page 15 1. Stand the refrigerator upright. Open the upper door to take out all door racks (to avoid racks damaged) and then close the door. Door racks 2. Remove part 1, loose part 2 from the top right side of refrigerator. 1 self-tapping screw 2 upper hinge cover...
- Page 16 3. Remove screws 1 and hinge 2. 1 Special flange screws 2 Upper hinge 4. Remove the upper door from the middle hinge by carefully lifting the door straight up. Then place the upper door on a smooth surface with its upper cover upwards.
- Page 17 6. Remove part 1 from the top left side of upper cover. Then remove part 3 from the top right side of upper cover. Install part 1 of the top right side of upper cover. 1 Corner cover (left) 3 Corner cover (right) 7.
- Page 18 9. Place the lower door on a smooth surface with its panel upwards. Loose screw 3 and take down part 2 and part 1. Install replacement door stopper-left 4 provided (in the plastic bag) and part 2 (stop block) to the left side with screw 3.
- Page 19 12. Remove part 3 from the lower hinge pin, loose out the lower hinge pin, change it to the reverse hole site, and then tighten into position, then install part 3 on the lower hinge pin. 13. Replace the items remount in step 11, change part 1 to left and then fix them with screws 4.
- Page 20 15. Move the upper door to an appropriate position, and then fix part 2 by screws 1 Special flange screws 2 Upper hinge 16. Fix part 1 by screw 2 refer to step 2. 1 Upper hinge cover 2 Self-tapping screw...
- Page 21 17. Open the upper door, mount door racks and then close it. Note: If your appliance has handle, you have to reverse handle by follow instructions below. Remove the upper door and place it on a smooth surface with its panel upwards.
- Page 22 OPERATING THE APPLIANCE User your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the display panels showed in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off.
- Page 23 2. Mode You can select different modes according to your requirements by pressing the A key on the display panel, and the corresponding icon will be illuminated. 3. Super Freeze Super Freeze will quickly lower the temperature within the freezer so food will freeze faster.
- Page 24 USING YOUR APPLIANCE Your appliance is supplied with a number of accessories and this section describes how best to use them. Door rack It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the racks. Shelf in Refrigerator chamber There are three shelves in refrigerator chamber, and they can be taken out to be cleaned.
- Page 25 Fruit and vegetable bin with humidity control • The bin at the bottom of the refrigerator is intended for storing fruit and vegetables. It provides humidity and prevents the food from drying out. The bin has integrated humidity regulator which allows setting the humidity level. •...
- Page 26 To avoid contamination of food, please respect the following instructions • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Page 27 ≤ –6 * – Seafood (fish, shrimp, shellfish), Freezer freshwater aquatic products and meat products (recommended time is 1 month – nutrition values and taste decrease with time). Not suitable for freeing fresh food. 0 star –6 ≤ 0 Fresh pork, beef, fish, chicken, some packaged processed foods, etc.
- Page 28 HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) •...
- Page 29 Hints for freezing • When first staring-up or after a period out of use. Before putting the food in the compartment, let the appliance run at least 2 hours on the higher settings. • Prepare food in small portions to enable it to rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
- Page 30 CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Warning! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.
- Page 31 TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself.
- Page 32 Problem: Possible cause & Solution It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: • Temperature setting is set colder than necessary. The motor runs • Large quantity of warm food has recently been continuously stored within the appliance.
- Page 33 Gorenje, d.o.o. Partizanska 12 SI - 3320 Velenje, Slovenija info@gorenje.com...
