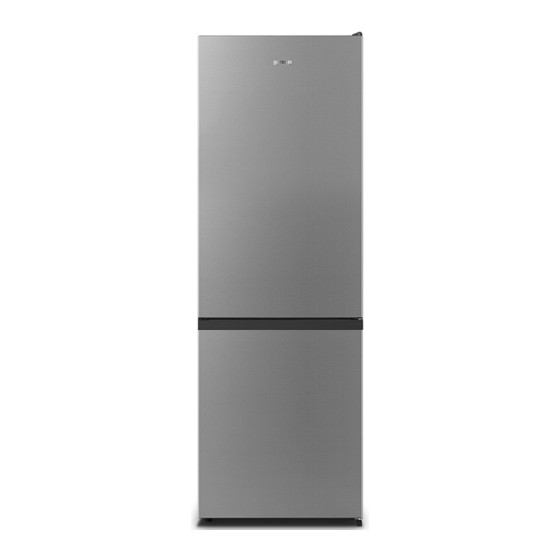

Gorenje NRK6182PS4 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EN

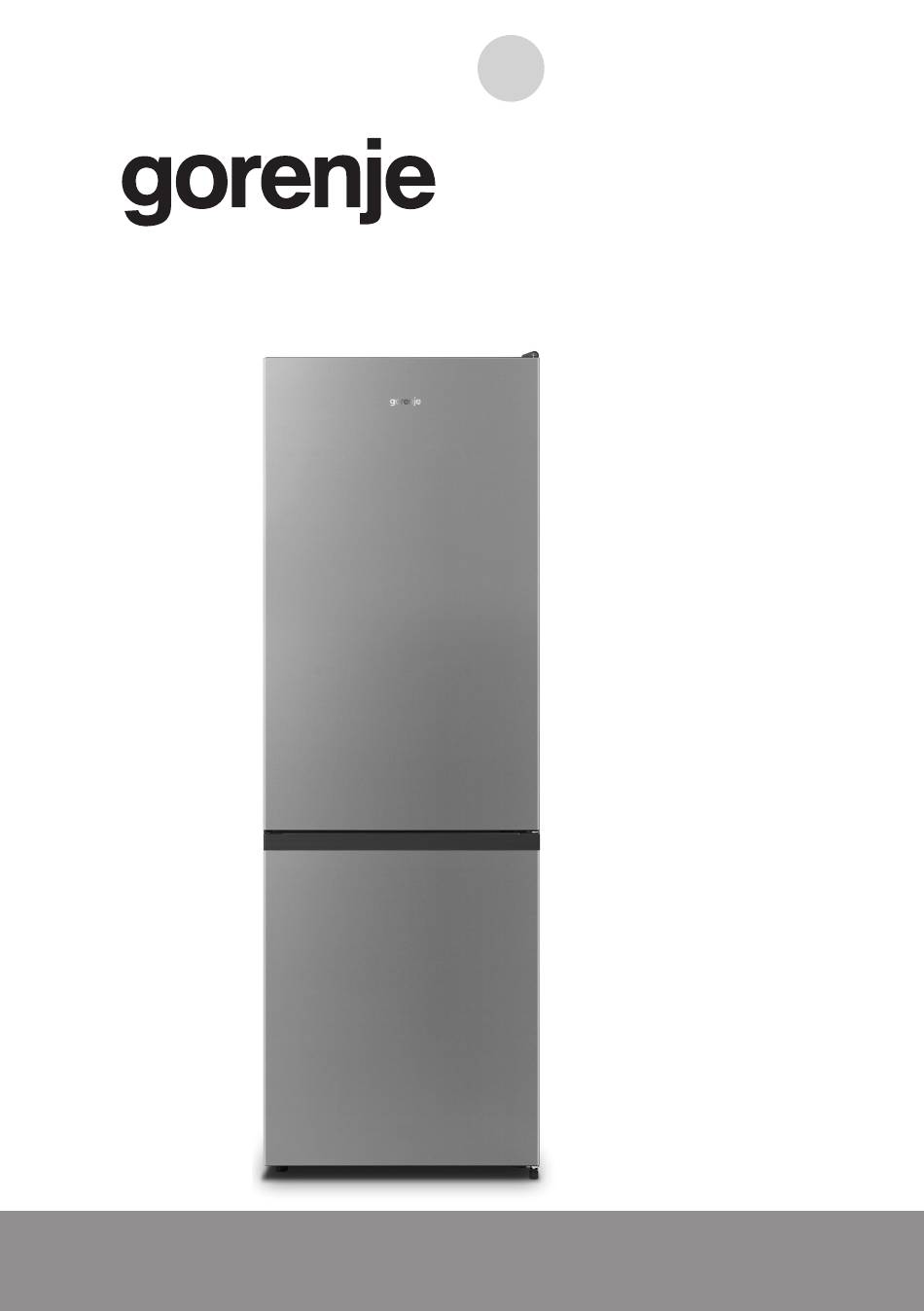

INSTRUCTION MANUAL
FOR REFRIGERATOR-
FREEZER
www.gorenje.com
www.gorenje.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NRK6182PS4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gorenje NRK6182PS4

Summary of Contents for Gorenje NRK6182PS4

  • Page 1 INSTRUCTION MANUAL FOR REFRIGERATOR- FREEZER www.gorenje.com www.gorenje.com...
  • Page 2 Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. http://www.gorenje.com Important safety warning...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 SAFETY AND WARNING INFORMATION APPLIANCE 11 INSTALLING YOUR NEW APPLIANCE DESCRIPTION 13 APPLIANCE DESCRIPTION 15 CHANGING THE DOOR OPENING DIRECTION 21 OPERATING THE APPLIANCE 25 USING YOUR APPLIANCE 29 HELPFUL HINTS AND TIPS DEFROSTING AND CLEANING 31 CLEANING AND CARE...

  • Page 4: Important Notes And Precautions

    IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features.
  • Page 5 According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
  • Page 6 • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
  • Page 7 flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.
  • Page 8 • You must not operate the appliance without the interior lighting lamp cover. • The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C.
  • Page 9 • Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.
  • Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.

  • Page 11: Installing Your New Appliance

    INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the first time, you should review the following tips. Ventilation of appliance In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat.
  • Page 12 Note: • This appliance performs well within the climate class showed in the table below. It may not work properly if being left at a temperature above or below the indicated range for a long period. Class Temperature from +10 °C to +32 °C from +16 °C to +32 °C from +16 °C to +38 °C •...

  • Page 13: Appliance Description

    APPLIANCE DESCRIPTION View of the appliance (control panel) 1. LED light 2. Door switch 3. Glass shelf 4. Fridge wind channel 5. Control panel 6. Crisper cover 7. Crisper 8. Upper freezer drawer 9. Middle freezer drawer 10. Lower freezer drawer 11.
  • Page 14 View of the appliance (display panel) 1. Display panel 2. Door switch 3. Glass shelf 4. Crisper cover 5. Crisper 6. Upper freezer drawer (Serving tray optional) 7. Middle freezer drawer 8. Lower freezer drawer 9. Adjustable bottom foot 10. Upper rack 11.

  • Page 15: Changing The Door Opening Direction

    CHANGING THE DOOR OPENING DIRECTION The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires. Warning! When reversing the door, the appliance must not be connected to the mains.
  • Page 16 1. Stand the refrigerator upright. Open the upper door to take out all door racks (to avoid damage) and then close the door. 2. Remove part (1), then take down part (2) from the top right side of refrigerator. Unscrew screws (3) by a 8 mm socket driver or a spanner, and remove hinge (4).
  • Page 17 4. Loose screw (3) and take down part (2) and part (1), Install replacement door stopper-left (4) (provided in the plastic bag) and part (2) (stop block) to the left side with screw (3). Keep part (1) with the appliance for future reference. Door stopper 2 Stop block 3 Self tapping...
  • Page 18 7. Change screw hole covers on middle cover plate from left to right (as shown in figure below). screw hole covers screw hole covers 8. Lay the refrigerator on soft foam packaging or similar material. Remove both adjustable bottom feet parts, and the lower hinge part by unscrewing the special flange self-tapping screws.
  • Page 19 11. Replace the lower hinge part to the left side and fixing it with the special flange self-tapping screws. Replace the adjustable bottom feet parts to another side and fixing it. 12.Transfer the lower door to the property position, adjust the lower hinge part, make the hinge axis into the lower hole of the lower door, then tight the bolts.
  • Page 20 14.Transfer the upper door to the appropriate position. Secure the door`s level, make the middle hinge axis into the lower hole of the upper door. 15.Move the upper door to an appropriate position, and then fix part (4) by screws (3).(Please hold the upper door by hand when installing).Install the upper hinge cover (2) on the left corner by screw (1).

  • Page 21: Operating The Appliance

    OPERATING THE APPLIANCE CONTROL UNIT 1 (control panel) SWITCHING THE APPLIANCE ON To switch on: rotate the A dial clockwise.
  • Page 22 ADJUSTING THE TEMPERATURE • To set the desired temperature, rotate the A dial in clockwise direction, i.e. to the right. • A change in the environment temperature will affect the temperature in the appliance. Adjust the setting with the A dial accordingly. Positions towards the longer lines mean a lower temperature in the appliance (cooler).
  • Page 23 CONTROL UNIT 2 (display panel) User your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the display panels showed in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working.
  • Page 24 2. Mode You can select different modes according to your requirements by pressing the A key on the display panel, and the corresponding icon will be illuminated. 3. Super Freeze Super Freeze will quickly lower the temperature within the freezer so food will freeze faster.

  • Page 25: Using Your Appliance

    USING YOUR APPLIANCE Accessories Movable shelves/trays • Various glass, plastic storage shelves or wire trays are included with your appliance - different models have different combinations and different models have different features. • The walls of the refrigerator are equipped with a series of runner so that the shelves can be positioned as desired.
  • Page 26 Install the door shelf Firstly hold the two side of the door shelf tightly, fit the door shelf along the guides on the door, then push it down to the right place. Vegetable drawer • The drawer is suitable for storing fruit and vegetables. Ice-cube tray (some models) •...
  • Page 27 To avoid contamination of food, please respect the following instructions • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
  • Page 28 ≤ –6 * – Seafood (fish, shrimp, shellfish), Freezer freshwater aquatic products and meat products (recommended time is 1 month – nutrition values and taste decrease with time). Not suitable for freeing fresh food. –6 ≤ 0 0 star Fresh pork, beef, fish, chicken, some packaged processed foods, etc.

  • Page 29: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) •...
  • Page 30 Hints for freezing • When first staring-up or after a period out of use. Before putting the food in the compartment, let the appliance run at least 2 hours on the higher settings. • Prepare food in small portions to enable it to rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.

  • Page 31: Cleaning And Care

    CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Warning! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

  • Page 32: Troubleshooting

    TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself.
  • Page 33 Problem: Possible cause & Solution It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: • Temperature setting is set colder than necessary. The motor runs • Large quantity of warm food has recently been continuously stored within the appliance.

  • Page 34: Disposal Of The Appliance

    Gorenje, d.o.o. Partizanska 12 SI - 3320 Velenje, Slovenija info@gorenje.com...
