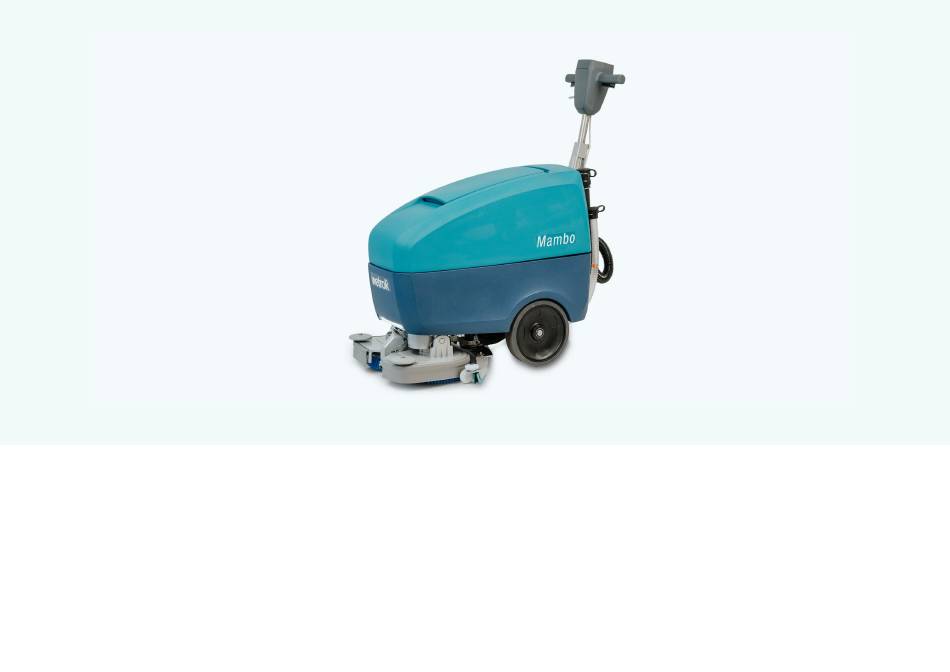

  • Page 1 Wetrok Discomatic Mambo Operating instructions (Translation of original manual)
  • Page 2 ▪ These operating instructions provide all information necessary for operation, maintenance and care. It is integrated part of the machine and must be passed on to an eventual new owner. ▪ Wetrok supplies it’s customers with this booklet on the internet under www.techinfo.wetrok.com Seite 2...
  • Page 3 Table of Contents Dear Customer Maintenance and repair General After operation Table of Contents Maintenance and care of the dosing system Symbols Troubleshooting Intended Use Technical specifications Emergency Disposal Guarantee provisions Safety Transport Scope of delivery Storage Copyright Machine overview Machine overview Display Accessories...
  • Page 4 Symbols DANGER Check For an immediate threat that could lead to severe bodily injury or death. No household refuse. Dispose of in accordance with applicable laws and regulations. WARNING For a possible threat that could lead to severe bodily injury or death. Battery 36 V ATTENTION In compliance with the European directives for safety and EMC.
  • Page 5 ▪ Switch off the machine, if available press the emergency stop switch. ▪ Alert for further assistance. ▪ Immediately apply recognised first-aid measures. After incidents, do not resume operation with the machine until it has been inspected by Wetrok or a Wetrok authorized partner. Seite 5...
  • Page 6 ▪ Damage resulting from natural wear, overloading or improper handling are likewise not covered by the warranty. ▪ Complaints will only be acknowledged if the machine has been repaired each time by Wetrok or a Wetrok authorized partner. ▪ The warranty period is generally 2 years (except for rechargeable batteries and consumables.
  • Page 7 ▪ The electrical security needs to be ensured during the whole life cycle completeness on a regular bases. ▪ Faults and damage must be immediately notified to the Wetrok Service Agent. of the machine. ▪ Protective guards must not be dismantled nor bypassed.
  • Page 8 Copyright This set of operating instructions is property of Wetrok AG as concerns copyright. It is only entrusted to buyers of this machine. All rights, particularly the right to reproduce or trans‐ late, belong to Wetrok AG. Violation obligates compensation for damages. We reserve all other statutory claims. The language of the original edition of these instructions is German.
  • Page 9 Machine overview 1. Dirty water tank 2. Dirty water tank cover 3. Pole adjustment 4. Operating lever 5. Splash guard 6. Wheel support 7. Fresh water tank 8. Brush housing Seite 9...
  • Page 10 Machine overview 1. Bumper wheels 2. Lift suction nozzle 3. Display 4. Suction nozzle / Suction lips 5. Wheel 6. Fresh water Emptying 7. Dirty water emptying 8. Charging socket and opening lever Seite 10...
  • Page 11 = Selection option (water or chemicals) active (flashing) Adjust using button 4 (-), button 7 (+) 6. Machine ON/OFF 7. Suction active/inactive Accessories Accessories Find more information on our products and product range at: www.wetrok.com 51400 Universal filler hose 1 items 69281 Quick Refill Mambo 1 items 52093 HEPA filter Mambo compl.
  • Page 12 Consumables Pads Suction lips 51100 Pad for drive pulley 1 items 52130 NR rear working lip 1 pair 52606 Scrubbing pad red 22 1 items 52131 NR forward suction lip 1 pair Scrubbing pad 52607 1 items blue 22 52132 PUR rear working lip 1 pair Scrubbing pad...
  • Page 13 Before commissioning / Initial commissioning SAFETY ▪ Delivery, or instructions on safety regulations, handling and maintenance, in addition to initial commissioning, are normally undertaken by an approved expert. Where this is not the case, the operator is responsible for instructing the users. ▪...
  • Page 14 Charging SAFETY Ventilate the room during charging. Plug in at the machine Regularly control the level of charging. ▪ Fully charge the battery before the first use. ▪ The battery is fully charged when the display is dark when the charging cable is still plugged in.
  • Page 15 ▪ Turn off the machine and disconnect from the mains before changing the brushes and Pad-drive pulleys / pad. ▪ The machine was tested with Wetrok cleaning agents. Only use Wetrok cleaning agents to ensure working without problems. ▪ When using cleaning and care products, observe the producer's hazard warnings. We recommend to always wear protective goggles, protective clothing and safety shoes.
  • Page 16 ▪ Express reference is made to the hazards when using highly inflammable, combustible, toxic, health-threatening, corrosive or irritant substances. ▪ The machine was tested with Wetrok cleaning agents and must only be used with these products to ensure that it works without problems.
  • Page 17 One tank of water/chemicals is sufficient with average water dosing for about 30-45 minutes. Overload protection: If the brush motor is blocked during operation, the machine is switched off automatically! Be switching the machine OFF-/ON again, you can continue your work. Fresh water hose is under pressure (max.
  • Page 18 Preparation with dosing system ATTENTION Fill up fresh water tank Fill up with chemicals with water Overflowing water can lead to material damage. ▪ Supervise filling via hose coupling at all times. Fill up water Adjust desired using Quick Refill dosage Example: = Level 3...
  • Page 19 Commissioning Use shaft adjustment lever to properly position shaft depending on operator Lower suction bar height Activate operating lever; Switch on machine activates all the functions Press button chosen Press brush button; all cleaning Work functions are activated Adjust water quantity Function active: keep pressed for >...
  • Page 20 ▪ Our products have been inspected for safety at the factory. To ensure their operational safety and to maintain their value, a service must be carried out once every twelve months or after 500 hours of operation. Service may only be performed by Wetrok or by Wetrok authorized specialists.
  • Page 21 After operation ATTENTION WARNING Do not clean the machine with high pressure or steam or strong liquid jet. If the machine is tilted there is an increased danger of injury! Prevent direct contact with water. Switch off all functions (switch off button); button must be "OFF".
  • Page 22 Fresh and dirty water tank Remove the hose of the dirty Empty fresh and dirty water tank water tank from the bracket Remove the hose of the fresh Empty dirty water tank water tank from the bracket Tilt the dirty water tank to clean out Empty fresh water tank the remaining water Seite 22...
  • Page 23 Rinse out and clean fresh and Rinse out the dirty water tank dirty water tank Rinse out fresh water tank; Remove coarse dirt sieve leave tank open to dry Seite 23...
  • Page 24 Clean brushes and suction nozzle Clean brushes and suction nozzle Clean the brush housing Remove the scrubbing brushes Remove suction nozzle Rinse the scrubbing brushes Clean the suction nozzle Seite 24...
  • Page 25 Change the suction lips (as required) Change the suction lips Unlocking magnetic suction nozzle Remove magnetic suction nozzle Turn or replace suction lips Seite 25...
  • Page 26 Clean the fresh water filter (as required) Clean or replace the fresh Clean the filter screen or water filter replace the fresh water filter Unscrew the viewing pane for the Screw in the filter screen filter (anticlockwise) and viewing pane Seite 26...
  • Page 27 MAINTENANCE Once a year the hoses must be replaced. This replacement may be done only by Wetrok or by a Wetrok authorized specialist. When using basic cleaner, it is essential to rinse the system with fresh water. Failure to do so may result in deposits and clogging of the system.
  • Page 28 Insufficient amount of water/cleaning agent dosage too low Increase amount of water/cleaning agent dosage Wrong cleaning materials/methods Check product instructions or ask Wetrok customer service Suction motor button inactive Activate suction motor Suction hose not hooked up to suction nozzle...
  • Page 29 (only for dosing system) Stick intake hose with stopper into the canister with the hose Intake hose slipped out of canister extending to the bottom of the canister For all other faults and damages please contact Wetrok or Wetrok authorised specialists. Seite 29...
  • Page 30 Technical specifications Technical specifications Technical specification Nominal voltage Underclearance 730 mm Vacuum 90 mbar Theoretical power 1720 m 0.62 N/cm Brush pressure Operating width 430 mm 31.5 Width of suction nozzle, folded 605 mm Brush rpm 200 min Fresh water tank 36 l LiFePo9 Battery type...
  • Page 31 Disposal Packaging and cleaning agents must be disposed of according to national laws and provisions. Machine must be disposed of according to national laws and provisions. Transport Temperature must not be below 5 °C nor exceed 40°C when transporting and storing machine. The machine may only be stored indoors.
  • Page 32 Seite 32...
  • Page 33 Tel 0800 20 48 68 Wetrok GmbH Maybachstrasse 35, D-51381 Leverkusen Tel +49 2171 398-0 Wetrok Polska S.A. ul. La¸czyny 4, PL-02-820 Warszawa Tel +48 22 331 20 50 Wetrok AB Bergkällavägen 32, S-192 79 Sollentuna Tel +46 8 444 34 00...
