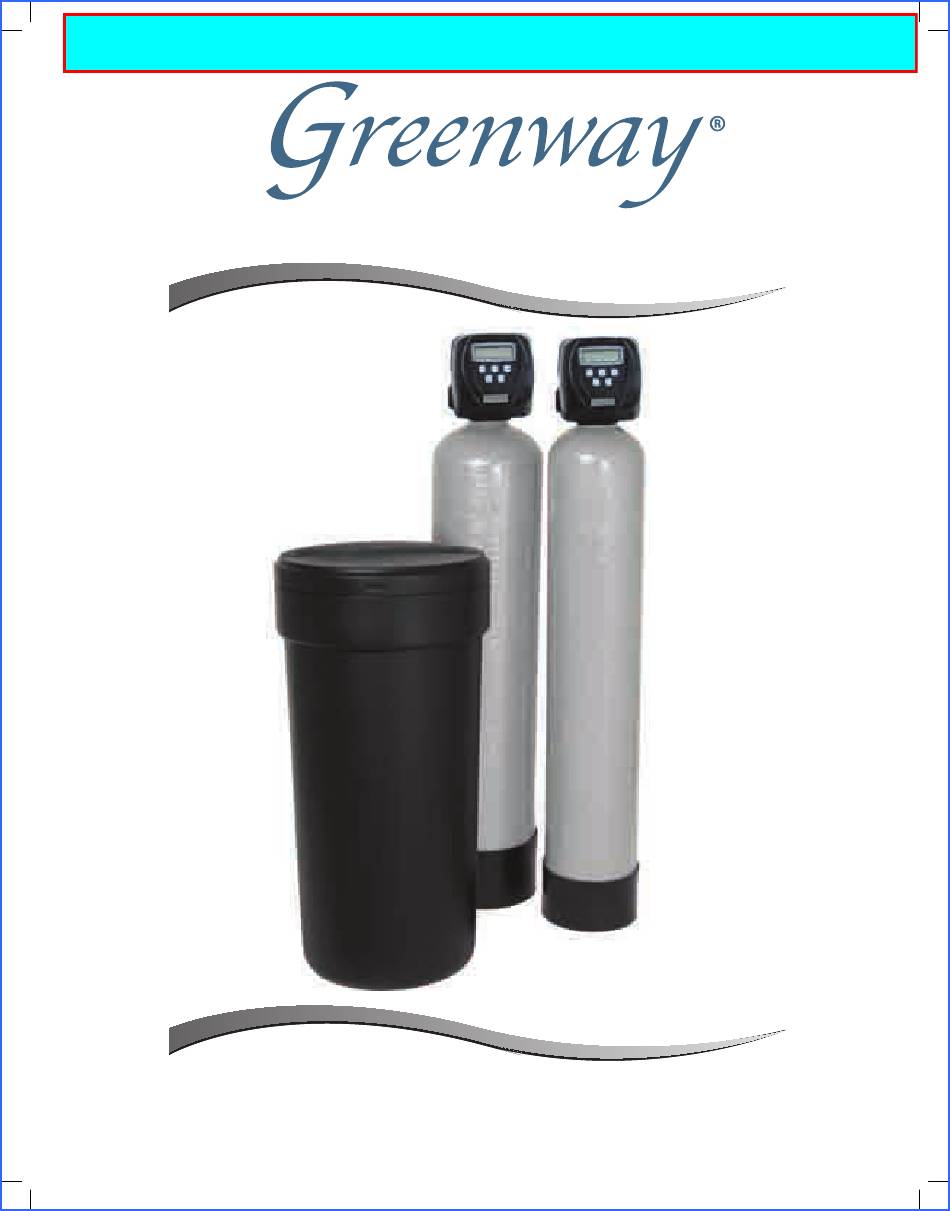

- Page 1 CLICK ANYWHERE on THIS PAGE to return to GREENWAY WATER SOFTENERS at InspectApedia.com GWSC Series Water Technologies Metered Water Softeners Water Technologies Water Technologies Installation Instructions & Owner’s Manual...
- Page 2 able of onTenTs Preinstallation Instructions for Dealers Page Bypass Valve Page Installation Page Programming Procedures for Water Softeners Page Operating Displays for the Softener Page Start-up Instructions Page Specifications Page Troubleshooting Guide Page 10-11 Replacement Parts Page 12-17 Quick Reference Guide Page Back Cover Your Water Test Hardness...
- Page 3 reinsTallaTion nsTruCTions ealers The manufacturer has set the water treatment unit’s sequence of cycles, cycle times, salt dose, exchange capacity, and gallon capacity. For water softeners the salt dose refill time has been preset. The dealer should read this page and guide the installer regarding hardness, day override, and time of regeneration, before installation: For the installer , the following must be used:...
- Page 4 Normal Operation Position: The inlet and outlet handles point in the direction of flow indicated by the engraved arrows on the control valve. Water flows through the control valve for normal operation of a water softener or filter. During the regeneration cycle this position provides regeneration water to the unit, while also providing untreated water to the distribution system (Fig. 1). 2. Bypass Position: The inlet and outlet handles point to the center of the bypass. The system is isolated from the water pressure in the plumbing system. Untreated water is supplied to the building (Fig.
- Page 5 nsTallaTion GeNeRal INSTallaTION & SeRVICe WaRNINGS The control valve, fittings and/or bypass are designed to accommodate minor plumbing misalignments. There is a small amount of “give” to properly connect the piping but the water softener is not designed to support the weight of the plumbing. Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may be used on black “O” Rings, but is not necessary. Avoid any type of lubricants, including silicone, on red or clear lip seals. Do not use pipe dope or other sealants on threads. Teflon tape must be used on the threads of the ®...
- Page 6 5. INleT/OuTleT PlumBING: Be sure to install Bypass Valve onto main control valve before beginning plumbing. Make provisions to bypass outside hydrant and cold hard water lines at this time. Install an inlet shutoff valve and plumb to the unit’s bypass valve inlet located at the right rear as you face the unit. There are a variety of installation fittings available. They are listed under Installation Fitting Assemblies, page 17. When assembling the installation fitting package (inlet and outlet), connect the fitting to the plumbing system first and then attach the nut, split ring and “O” Ring. Heat from soldering or solvent cements may damage the nut, split ring or “O” Ring. Solder joints should be cool and solvent cements should be set before installing the nut, split ring and “O” Ring. Avoid getting solder flux, primer, and solvent cement on any part of the “O” Rings, split rings, bypass valve or control valve. If the building’s electrical system is grounded to the plumbing, install a copper grounding strap from the inlet to the outlet pipe. Plumbing must be done in accordance with all applicable local codes. 6.
- Page 7 rogramming roCeDures for aTer ofTeners 1. Set time of day: Time of day should only need to be set after extended power outages or when daylight saving time begins or ends. If an extended power outage occurs, the time of day will flash on and off indicating that the time should be reset. STeP 1 – Press SET CLOCK. STeP 2 – C urrent Time (hour): Set the hour of the day using the t or s buttons. AM/PM toggles after 12:00. Press to go to step 3.
- Page 8 2. Programming cont’d: STeP 4 – R egeneration Time (Hour): Set the hour of day for regeneration using the t or s buttons. AM/PM toggles after 12:00. The default time is 2:00 a.m. Press to go to step 5. next STeP 5 – N ext Regeneration Time (Minutes): Set the minutes of day for regeneration using the buttons. Press to exit Installer Displays/Settings. DoWn next PeraTing isPlays for The ofTener 1. G eneral Operation: When the system is operating one of two displays will be shown. Pressing will alternate between the displays.
- Page 9 2. m anual Regeneration: Sometimes there is a need to regenerate the system sooner than when the system calls for it, usually referred to as manual regeneration. There may be a period of heavy water usage because of guests or a heavy laundry day. To initiate a manual regeneration immediately, press and hold the button for three seconds. The regeN system will begin to regenerate immediately. The control valve may be stepped through the various regeneration cycles by pressing the button. regeN To initiate a manual regeneration at the preset delayed regeneration time, when the regeneration time option is set to 0, press and release .
- Page 10 TarT nsTruCTions for aTer ofTeners The system is now ready for filling with water. For the purpose of filling the softener, leave the unit in the bypass position until the 4th step, then repeat steps 1-6 with the unit full. Do not open the bypass at this time, it will be filled in the backwash position. Once the unit is filled with water (step 2) then open the bypass. 1. W ith the softener in the bypass mode (fig. 2 on page 2) and the control valve in normal operation where the display shows either the time of day or the gallons remaining: Manually add 3 GALLONS of water to the regenerant tank. NOTE: If too much water is put into the brine tank during softener start up it could result in a salty water complaint after the first regeneration.
- Page 11 18”(w) x 36”(h) 18”(w) x 36”(h) All GWSC Series units are factory set for Medium Salting. Iron removal may vary depending on form of iron, pH, and other local conditions. The peak flow rates listed above do not represent the maximum service flow rate used for determining the softener capacity and efficiency ratings.
- Page 12 roubleshooTing uiDe ofTeners PROBlem CauSe CORReCTION A. transformer unplugged A. reconnect transformer 1. Timer does not B. no power at outlet B. repair or use working outlet display time of C. defective transformer C. replace transformer D. defective PC board D. replace PC board A. outlet is on a switch A.
- Page 13 PROBlem CauSe CORReCTION A. motor not operating A. replace motors B. no power at outlet B. repair outlet or use working outlet C. defective transformer C. replace transformer 6. Valve stalled in D. defective PC board D. replace PC board regeneration E. broken drive gear or drive cap assy. E. replace gear or drive cap assy. F. broken piston retainer F. replace drive cap assy. G. broken main or regenerant piston G.
- Page 14 ePlaCemenT arTs fRONT COVeR aND DRIVe aSSemBlY Item No. Part No. Description Qty. YY.WS.CV3175CC-01 Front cover assembly CC YY.WS.CV3107-1 Motor YY.WS.CV3106-1 Drive bracket & spring clip YY.WS.CV3108CC PC board, CC YY.WS.CV3110 Drive gear, 12 x 36 YY.WS.CV3109 Drive gear cover YY.WS.CV3002CC Drive assembly, CC not shown YY.WS.CV3186 Transformer, 110V-12V PISTON aSSemBlY Item No. Part No. Description Qty. YY.WS.CV3005 Spacer stack assembly YY.WS.CV3004 Drive cap assembly YY.WS.CV3135 O-ring 228 YY.WS.CV3011...
- Page 15 ePlaCemenT arTs INjeCTOR aSSemBlIeS Item No. Part No. Description Qty. YY.WS.CV3176 Injector cap YY.WS.CV3152 O-ring 135 YY.WS.CV3177 Injector screen YY.WS.CV3010-1z Injector assembly plug YY.WS.CV3010-1E e injector assembly, WhiTe YY.WS.CV3010-1F f injector assembly, blue not shown YY.WS.CV3170 O-ring 011, lower O-ring 013, lower not shown YY.WS.CV3171 * The injector plug and the injector each use one lower and one upper o-ring RefIll PORT aSSemBlY...
- Page 16 ePlaCemenT arTs DRaIN lINe aSSemBlY 3/4” Item No. Part No. Description Qty. YY.WS.CH4615 Locking clip, elbow YY.WS.CPKP10TS8-BULK Insert, 5/8” tube YY.WS.CV3192 Nut, 3/4” drain elbow YY.WS.CV1358-01 Drain elbow assembly, 3/4” NPT YY.WS.CV3163 O-ring 019 YY.WS.CV3159-01 DLFC retainer assembly YY.WS.CV3162-007 0.7 DLFC for 3/4” elbow YY.WS.CV3162-010 1.0 DLFC for 3/4” elbow YY.WS.CV3162-013 1.3 DLFC for 3/4” elbow YY.WS.CV3162-017 1.7 DLFC for 3/4” elbow YY.WS.CV3162-022 2.2 DLFC for 3/4” elbow YY.WS.CV3162-027 2.7 DLFC for 3/4” elbow YY.WS.CV3162-032 3.2 DLFC for 3/4” elbow YY.WS.CV3162-042 4.2 DLFC for 3/4” elbow YY.WS.CV3162-053...
- Page 17 ePlaCemenT arTs WaTeR meTeR & meTeR PluG Item No. Part No. Description Qty. YY.WS.CV3151 Nut, 1” QC Meter assembly, includes YY.WS.CV3003 items 3 &4 YY.WS.CV3118-01 Turbine assembly YY.WS.CV3105 O-ring 215 YY.WS.CV3003-01 Meter plug assembly SafeTY flOaT aSSemBlY Item No. Part No. Description YY.WS.CH4650-01 474 safety elbow 3/8” YY.WS.CH4655 474 .5 gpm flow control YY.WS.CH4615 Elbow locking clip...
- Page 18 ePlaCemenT arTs BYPaSS ValVe Item Part No. Description Qty. YY.WS.CV3151 Nut, 1” quick connect YY.WS.CV3150 Split ring YY.WS.CV3105 O-ring 215 YY.WS.CV3145 Bypass rotor, 1” YY.WS.CV3146 Bypass cap YY.WS.CV3147 Bypass handle YY.WS.CV3148 Bypass rotor seal retainer YY.WS.CV3152 O-ring 135 YY.WS.CV3155 O-ring 112 YY.WS.CV3156 O-ring 214...
- Page 19 nsTallaTion iTTing ssemblies 3/4” & 1” PVC SOlVeNT elBOW 1” PVC male NPT elBOW Item Item Part No. Description Qty. Part No. Description Qty. YY.WS.CV3007- YY.WS.CV3007 1” PVC male NPT elbow assy. 3/4” & 1” PVC solvent elbow assy. YY.WS.CV3151 Nut, 1” quick connect YY.WS.CV3151 Nut, 1” quick connect YY.WS.CV3150 Split Ring YY.WS.CV3150 Split Ring YY.WS.CV3105 O-ring 215 YY.WS.CV3105 O-ring 215 YY.WS.CV3149 Fitting YY.WS.CV3189 Fitting 1”...
- Page 20 uiCk eferenCe uiDe general operation When the system is operating, manual regeneration one of three displays will be NOTE: For softeners, if brine tank does not contain salt, fill with salt and shown: Time of day, gallons wait at least 2 hours before regeneration. If you need to initiate a manual of treated water available, or regeneration, either immediately, or the same night at the preprogrammed gallons per minute.
