Summary of Contents for TCL onetouch 5041
- Page 2 > IMEI. Making a call ........... 15 Obtaining warranty service Answer or decline a call ......16 First follow the advice in this guide or go to www.tcl.com/ Accessing voicemail ....... 16 global/en/service-support-mobile.html. Then check hotlines Contacts ............17 and repair centre information through www.tcl.com/global/en/...
- Page 3 Convert ............ 22 9.13 Regulatory & Safety ........ 34 SIM Toolkit ..........22 9.14 Privacy and User Terms ......34 9.15 Version info ..........34 Message ............23 10 My files ............34 Write message ........23 Send a multimedia message ....24 11 Troubleshooting ..........
- Page 4 Your mobile ......1.1 Keys and connectors 1. OK key • Confirm an option (press the middle of the key) • Press: access to the app list (from Home screen) 2. Left soft key • Confirm an option • Press: access to the app list (from Home screen) 3.
- Page 5 5. End key 9. “#” key • Return to Home screen • Idle screen • Press: end a call • Press: Input "#" • Long press: Vibrate mode on/off 6. Navigation key • In edit mode • Move to top, bottom, left or right menus. •...
- Page 6 1.2 Getting started T314D： 1.2.1 Set up ① With the device facing down, remove the back cover by using your fingernail to carefully lift the cover from the device body. ② To insert SIM card or micro SD card, push the SIM card or micro SD card into the card slot with the gold-colored contacts facing down.Power off your phone before inserting or removing the SIM/micro...
- Page 7 1.2.2 Power on your phone Charging the battery Connect the battery charger to your phone and plug To turn your phone on, hold down the End key until the into the socket. phone powers on. It will take a few seconds before the Left soft key to screen lights up.
- Page 8 1.4 App list 1.4.1 Status bar The Status bar appears at the top of your Home Press the Left soft key or OK key from the Home screen. Icons indicate your phone’s status and new screen to access the App list. notification alerts appear in the Status bar.
- Page 9 Emergency call Call logs ....... If your phone has network coverage, dial the emergency number and press the Call key to make an emergency call. 2.1 Making a call 2.2 Answer or decline a call Dial the desired number, press the Call key to place the call, or press the Right soft key from Home screen to select a contact from Contacts.
- Page 10 3.2 Adding a contact Contacts ....... In your contacts list screen, select Options > New to add new contacts with detailed information. 3.1 Consult your Contacts Contacts enables quick and easy access to the contact you want to reach. You can access this function through any of the following methods: •...
- Page 11 3.4 Deleting a contact Import/ Export • Copy In your contacts list screen, press the Left soft key to access Options, select Delete, and press the OK key Copy contacts from phone or SIM card to your desired to delete. location.
- Page 12 4.6 Convert Tools ......Convert supports weight conversion and length conversion. in Audio automatically. 4.1 Alarm 4.7 SIM Toolkit Your phone has a built-in alarm clock with snooze This menu provides convenient SIM card management feature. You can set up to three alarms with different features, such as SIM card services, SIM applications.
- Page 13 5.2 Send a multimedia message Message ....... MMS enables you to send video clips, images, photos,contacts and sounds. From the Message screen, select Options > Add and select the attachment. Use the messaging feature to send and receive text An SMS will be converted to MMS automatically when (SMS/MMS) messages.
- Page 14 Settings Camera ....... • SIM1/SIM2 Message centre You can view your message centre number here. Your mobile phone is equipped with a camera for • Message validity period taking photos and shooting videos. You can set your message validity period as 1 hour, 6 hours, 24 hours, 72 hours, 1 week or Maximum.
- Page 15 Gallery ......Settings ...... Gallery acts as a media player for you to view photos To access this function, press the OK key from the and play videos. In addition, a set of further operations Home screen and select Settings. to pictures and videos are available for selection.
- Page 16 9.5 Layout • Restore factory settings This feature allows you to reset your device to its There are two layouts for your option: Super icon original factory state. Before initiating the restoration mode and 3*3 mode. In Super icon mode, each option process, it is important to note that all data and is presented with large and eye-catching icons, while personalized settings will be permanently deleted.
- Page 17 • Modify the phone password • Hide ID With Hide ID, you can selectively conceal or mask Change the phone's password . your identity when interacting with others, ensuring * You will need to set a password before accessing your anonymity and safeguarding your sensitive data. this function.
- Page 18 9.8 Network settings 9.13 Regulatory & Safety Within this menu, you can set Network selection, View information about your phone, such as Product Network type and Network information. Model, Manufacturer Name, IMEI, CU Reference, etc. 9.9 Connections 9.14 Privacy and User Terms Within this menu, you can set Data account, Data You can view Privacy and User Terms under this roaming, Data roaming, etc.
- Page 19 My phone can't charge properly Troubleshooting ..... • Make sure you are using a standard battery and the charger from the box. • Make sure your battery is inserted properl. It must Before contacting the service centre, you are advised be inserted before plugging in the charger.
- Page 20 • Make sure your phone is switched on and connected subscription includes this service. to a network (check if the network is overloaded or • Make sure this feature does not require an TCL unavailable). accessory. • Check your subscription status with your operator When I select a number from my contacts, the (credit, SIM card valid, etc.).
- Page 21 I am unable to add a contact to my contacts How can I transfer data between my phone and • Make sure that your SIM card contacts are not full; delete some files or save the files in the phone •...
- Page 22 Audio AMR-NB, AMR-WB, MID Specifications ....supported formats Mocor (RTOS) Video 3gp, MJPG supported Memory 128MB ROM + 64MB RAM formats Dimensions 113*48*14.5 mm Battery Capacity: 1030 mAh (LxWxT) Expansion Slot Dual SIMs + SD card Weight Note: Specifications are subject to change without Display 1.8”...
- Page 23 Licences ......The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TCL Communication Ltd. and its affiliates is under licence. Other trademarks and trade names are those of their respective owners.
Need help?
Do you have a question about the onetouch 5041 and is the answer not in the manual?
Questions and answers

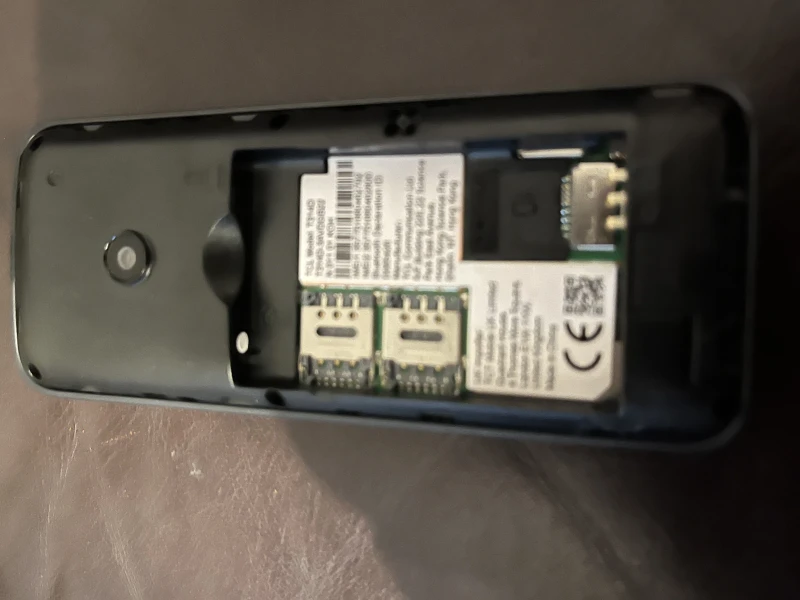

Install simcard
To install a SIM card in a TCL OneTouch 5041:
1. Power off the phone.
2. Remove the back cover.
3. Insert the SIM card into the SIM card slot with the gold-colored contacts facing down.
4. Insert the battery by aligning the gold contacts in the battery cavity.
5. Reattach the back cover by aligning the tabs and pressing it into place.
Ensure the SIM card is properly inserted before turning the phone back on.
This answer is automatically generated
Hi, I wonder if I can turn off the microphone when the device (Nokia TCL Onetouch 5041) is on the stand by mode to avoid hackers who eavesdrop on phones?
tcl onetouch 5041 Swedish language manual
The micro SIM card is too big and the nano SIM is too small
To use a micro SIM card with the TCL onetouch 5041, follow these steps:
1. Power off your phone before inserting or removing the SIM card.
2. Push the micro SIM card into the card slot with the gold-colored contacts facing down.
3. Insert the battery by connecting the gold contacts in the device battery cavity.
4. Carefully align the back cover with the tabs and press it into place.
Your phone will power on even without a SIM card, but inserting one allows full functionality.
This answer is automatically generated
Where does the SIM card go?
The SIM card slot on the TCL OneTouch 5041 is located inside the phone. To insert the SIM card, power off the phone, then push the SIM card into the card slot with the gold-colored contacts facing down.
This answer is automatically generated
