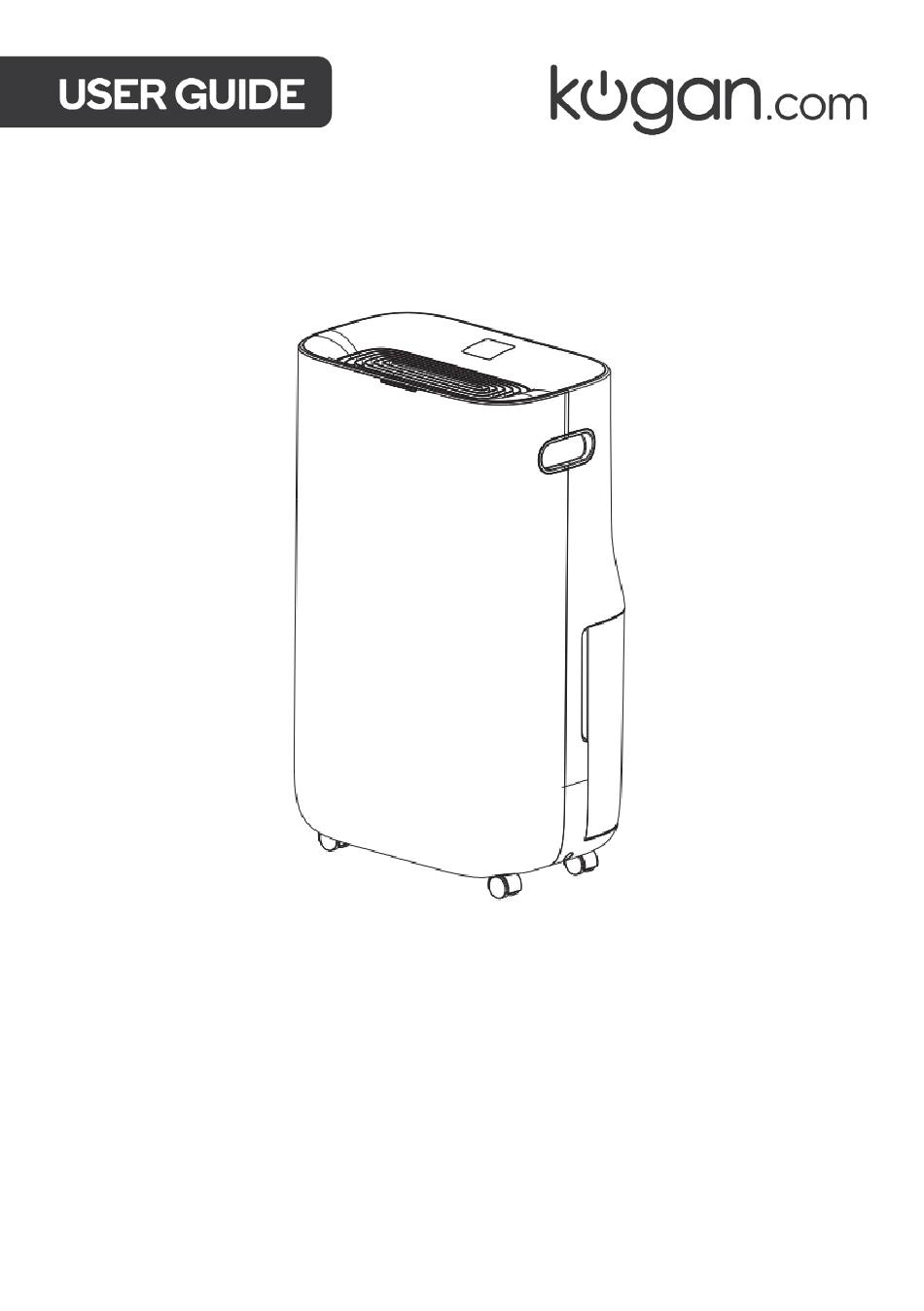

- Page 1 KOGAN SMARTERHOME™ 20L DEHUMIDIFIER KASMDHM20FA...
- Page 2 Safety & Warnings Overview Installation Connect to SmarterHome™ App Operation Cleaning & Care Specifications Troubleshooting...
- Page 3 • In case of any abnormality, turn off the dehumidifier, disconnect the plug, and contact help.Kogan.com for support. Abnormal operation may result in failure of the dehumidifier, electric shock, fire, or similar hazards. • Never attempt to turn off the dehumidifier by disconnecting the plug.
- Page 4 • Maximum refrigerant charge amount: 60g. • The dehumidifier must be installed in accordance with national wiring regulations. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • This dehumidifier is not intended for use by persons (including children) with reduced...
- Page 5 • For continuous draining, ensure that the drain hose is set properly without a rising slope. • Be careful that a heating dehumidifier is not exposed to the wind from the dehumidifier. • Do not use the dehumidifier as a chair or footstool. •...
- Page 6 OVERVIEW Front Control Panel Humidity Indicator Handle Rear Air Intakes Water tank...
- Page 7 INSTALLATION For efficient operation of the dehumidifier, maintain the recommended spacing as shown below. Up: 30cm or more Note: If there is interference with TV sets, radios, or other devices, keep them at least 70 cm away from the dehumidifier.
- Page 8 CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’.
- Page 9 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (the ‘Wi-Fi’ indicator flashes rapidly and the unit beeps). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the ‘Mode’...
- Page 10 Ensure that the device is in pairing mode, with the ‘Wi-Fi’ indicator flashing rapidly, and tap ‘Confirm light is rapidly flashing’. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
- Page 11 OPERATION WARNING: To avoid damaging the power cord, do not pinch the cord in a door. Prevent children from getting in a closet when using the dehumidifier in the closet. Control Panel Power Button Indicators: Water full Child lock Defrost Sleep Dehumidification Wi-Fi...
- Page 12 Buttons: Child lock Press and hold for 5 seconds to lock/unlock. Timer Can be set from 0 to 24 hours. • Press the ‘Fan’ button to activate the fan; the indicator will illuminate. • When the compressor is off, the fan speed can be adjusted.
- Page 13 Operating the Dehumidifier Plug the dehumidifier into an electrical outlet. I f the water tank is full, the ‘Full Water’ indicator will be the only one illuminated. E nsure the water tank is correctly positioned. P ress the ‘Power’ button. ...
- Page 14 Setting the Timer B efore programming, ensure the timer function is not already activated (the indicator must be off). Press the ‘Timer’ button to set the timer. W hen the timer is programmed, the ‘Timer’ indicator and ‘Hr’ will illuminate. ...
- Page 15 Room Temperature This dehumidifier does not have a cooling function. During operation, it generates heat, causing the room temperature to increase by 1°C to 4°C. The temperature may rise even more when used in enclosed spaces like closets. Additionally, the room temperature can increase further if doors and windows are closed, other dehumidifiers are in use, or due to sunlight.
- Page 16 Installing the Air Filter on the Back Cover Remove the air filter from the polyethylene bag and place it on the back filter. Fit the air filter into the four catches on the back cover. Active carbon filter holder Place the filter holder on the cover with its flat surface facing up, ensuring the holder’s convex portions are upward.
- Page 17 Water Tank Placement • Make sure the water tank is correctly positioned. • The dehumidifier will not operate if the water tank is full or not properly set. Removing the water tank: Gently pull the water tank towards you by holding the concave part of the tank.
- Page 18 CLEANING & CARE WARNING: To avoid of the risk of electric shock, never connect and disconnect the plug with wet hands. Cautions • Turn off the dehumidifier and disconnect the power plug before performing cleaning or maintenance. • Do not remove the float lever from the water tank. When the Dehumidifier is Not in Use for a Long Time Unplug the dehumidifier, bundle the power cord, and hang the bundled cord at the back of the dehumidifier as shown.
- Page 19 Water Tank Pull out the water tank and remove it. Wash the inside of the tank with water. Avoid scrubbing strongly with a brush to prevent scratches. Do not remove the float lever from the tank. Wipe off the outside of the tank with a cloth and replace it as it was. Handle...
- Page 20 Back and Side Air Intakes (Maintenance Every 2 Weeks) The dehumidifying capacity will decrease if the air filter becomes clogged. Back Cover: Remove the back cover from the dehumidifier and take out the filter holder. Remove the air filter and the back filter. Use a vacuum cleaner or pat the filters lightly to dislodge dust.
- Page 21 SPECIFICATIONS Power Supply 220V-240V∿(50Hz) Dehumidifier Capacity 20L/Day (30°C/80%) Maximum Input Power 420W Maximum Input Current 1.91A Water Tank Capacity 6.5L Net Weight 14.5kg Dimensions 340 x 240 x 570mm Room Temperature 5°C-32°C Refrigerant R290 /60g Fuse AC250V 3.15A...
- Page 22 TROUBLESHOOTING Problem Points to be checked Measures to be taken Insert the plug into an Check to see if the power electrical outlet fully and plug is disconnected. securely. Check to see if the water tank Empty the water out of the is full of water.
- Page 23 Normal Occurrences Phenomenon Reason Operation stops occasionally. The dehumidifier is defrosting. • The dehumidifier volume is less when the room temperature is low. Dehumidified volume is small. • The dehumidifier stops dehumidifying because the humidity in the room drops to 60% or less.
- Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
