Summary of Contents for Kogan KADEHUM6LFA

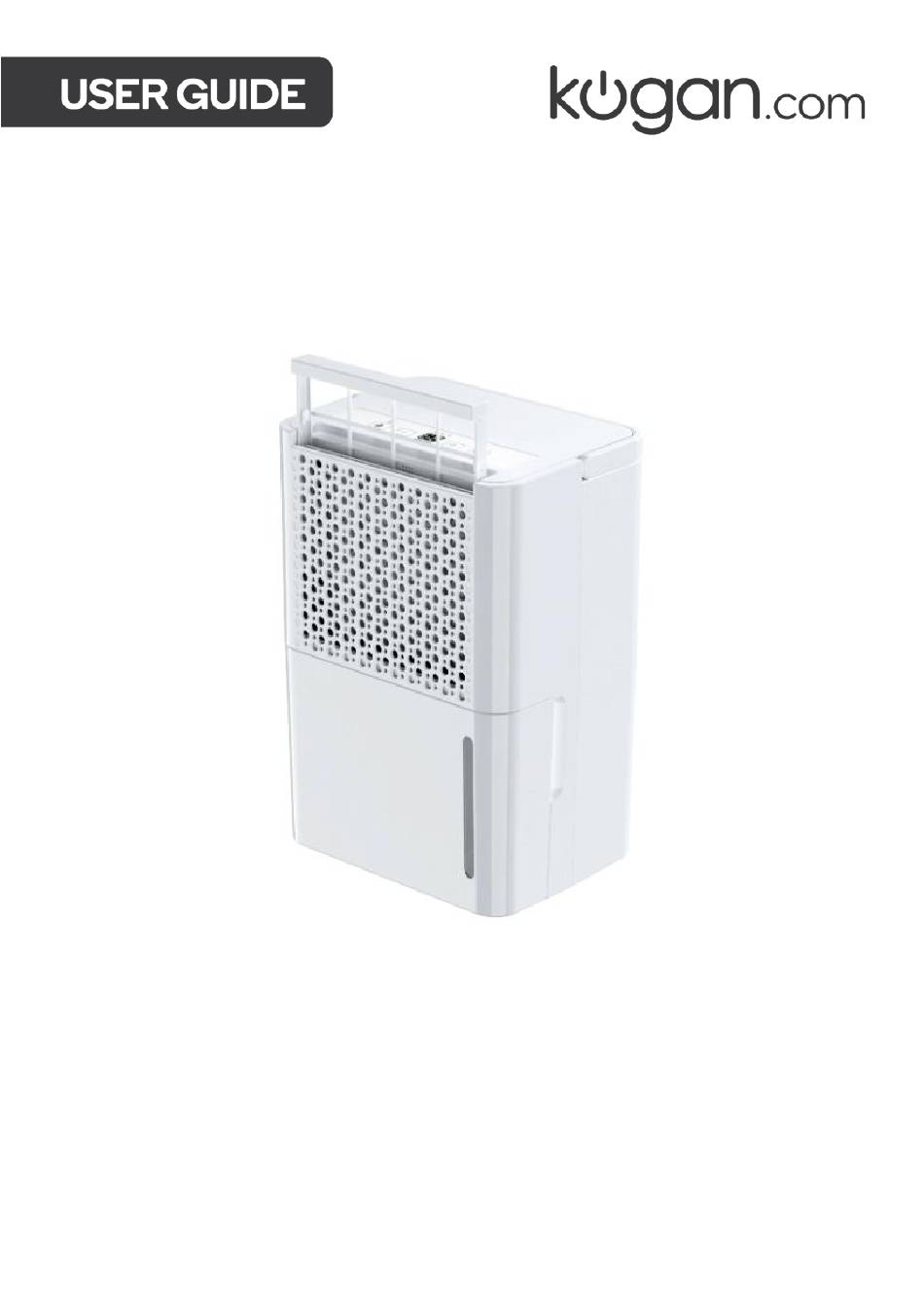

- Page 1 6L DEHUMIDIFIER KADEHUM6LFA...
-
Page 2: Table Of Contents
Safety & Warnings Additional Components Overview Installation Before First Use Operation Cleaning & Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
• In case of any abnormality be sure to turn off the dehumidifier, disconnect the plug, cease use immediately and contact help.Kogan.com for support. • Never attempt to turn off the dehumidifier by disconnecting the plug. • Never modify the dehumidifier. Do not attempt to disassemble or service the unit by yourself. - Page 4 Warning • The appliance must be installed in accordance with national wiring regulations. • If the power cord is damaged, it must be replaced by Kogan.com, its service agent or similarly qualified persons in order to avoid a hazard. • This appliance can be used by children aged from 8 years and above and persons with...
- Page 5 • Never attempt to use the dehumidifier for special uses, such as food or preservation of art objects or the like. • Do not use the unit in locations exposed to chemicals. • For continuous draining, ensure that the drain hose is set properly without a rising slope. •...
-
Page 6: Additional Components
ADDITIONAL COMPONENTS Antibacterial Air Filter OVERVIEW Front Power switch Air Inlet Water Tank... - Page 7 Back Handle Air Outlet Cord storage Control panel Dehumidification Decrease Increase Power humidity humidity...
-
Page 8: Installation
INSTALLATION The following space must be maintained to ensure the operating efficiency of the dehumidifier. Top: 30cm or more Air Inlet Air Outlet Right: 20cm or more Back: 30cm or more Front: 20cm or more Left: 20cm or more Note: If the dehumidifier gets interference from other household appliances, such as television and radio cassette player, keep the equipment is at least 70cm away from the dehumidifier. -
Page 9: Before First Use
BEFORE FIRST USE Defrosting The evaporator in the dehumidifier may defrost automatically if it is operated in a room with a temperature less than 18°C. Defrosting may start and operate for approximately 5 minutes every 25 minutes or even longer. •... - Page 10 Humidity 80% Dehumidifying capacity Room temperature Water tank • Confirm the tank is correctly installed in position. The dehumidifier can't operate if the water in the tank is full or isn't installed well. • Hold the water tank and slide it outwards.
-
Page 11: Operation
Emptying the water tank Pull out the water tank from the dehumidifier. Tip the water tank upside down and empty out the water slowly. Install the water tank back into the dehumidifier. Note: After the dehumidification, the water tank may contain water. -
Page 12: Cleaning & Care
CLEANING & CARE CLEANING & CARE Warning • • Please cut off the power supply before daily cleaning and maintenance. • • Always place the dehumidifier unit upright to avoid incorrect operation and unusual noises. • If dehumidifier is not in use for extended periods: Empty out the water in the tank wipe up the water tank and install it back. - Page 13 Clean the filter (every 2 weeks) The dehumidify capacity may reduce when the filter net is clogged with defilement. The dust collector is always used to clean the dust. If the filter net is too dirty, it can be cleaned with. Continuous drainage When you are not at home but require long-term operation, you can use the continuous drainage feature.
-
Page 14: Specifications
SPECIFICATIONS Power supply AC220V-240V~50Hz 6L/day (30°C 80%) Dehumidifying capacity 3 L/day (27°C 60%) Rated input power 180W Rated input current 1.1A Water tank capacity 2.1L Net weight Height 406.5mm, length 270mm, width Overall dimensions 205mm Application scope 5-32°C Refrigerant R290/25g Fuse 3.15A/250VAC The parameters above may change with the improvement of the machine unit without... -
Page 15: Troubleshooting
TROUBLESHOOTING Check cause below first before contacting help.Kogan.com for support. Problem Possible causes Solutions Unit not working Check whether the power Plug in the power cord. cord is connected. The water lank is full. Empty out the water in it. - Page 16 Supplementary Issues Issue Causes Unit stops during the operation It is defrosting Reduced dehumidifying capacity The dehumidifying capacity drops with the room temperature and humidity. The humidity of the room will not reduce The room area is too big and outside the operating range.
-
Page 17: Notes
NOTES... - Page 20 Need more information?
