Homedics AR-45 Manual

Technical Specifications

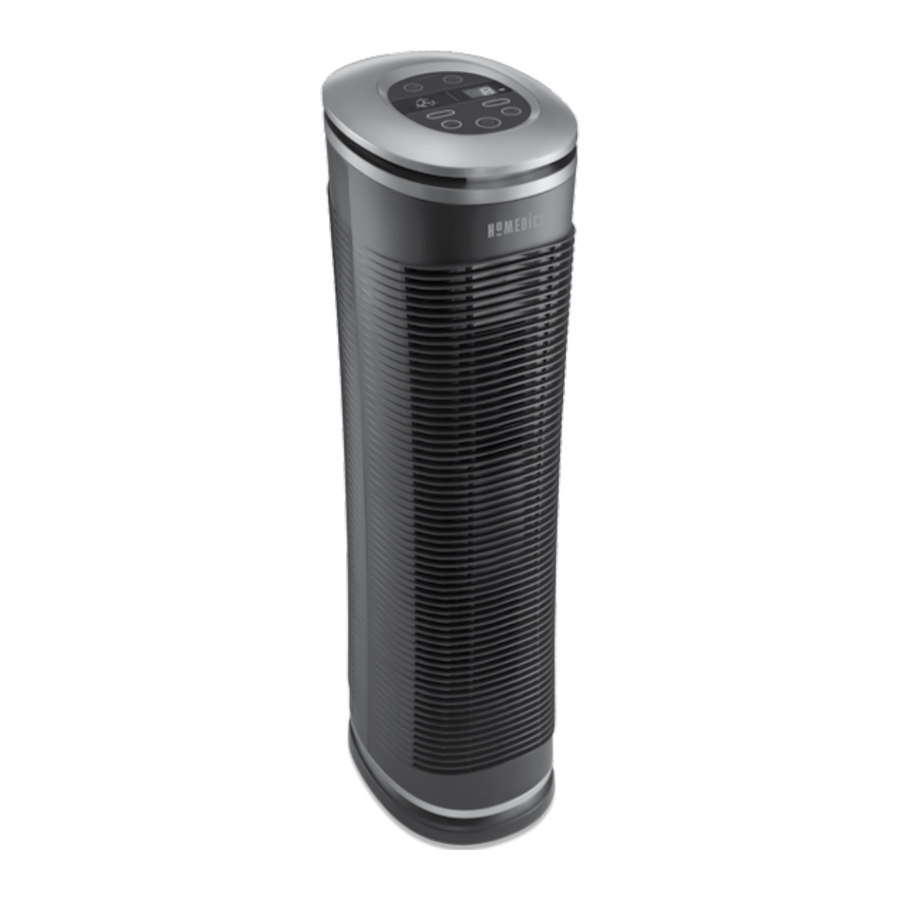

Main Features of the HoMedics Tower Air Cleaner

NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature. To do so could result in an electric shock hazard.

Control Panel

Operating Instructions

Turning the Unit On

• Take the air cleaner out of the box and remove the clear protective plastic bag.
• Place the air cleaner on a firm level surface.
• Before turning the air cleaner ON, you need to confirm that the filters are firmly in place and did not become loose during shipping.

1. To check filters, open the rear grill by gently pushing down on the release tab on the top of the rear grill.

   Fig. 1
2. Open the plate outward until the tabs at the bottom of the grill plate easily slide away from the unit.

   Fig. 2
3. The HEPA filters will be resting inside the unit. Make sure that the filters are firmly seated inside of the unit.

   Fig. 3
4. Place the tabs at the bottom of the grill plate into the base of the unit. Gently push the grill plate back into place until you hear a click sound indicating that the grill is firmly latched. Connect the power cord into a standard AC outlet.

   Fig. 4

NOTE: Unit will not operate unless filters and grill are properly installed.

1. On/Off and Speed Settings
   • To turn the air cleaner on, press the ON/OFF button on the control panel. When the air cleaner is on, the ON/OFF button on the control panel will be lit and the air cleaner will start to operate on LOW speed.
   • Once the air cleaner is ON, press the SPEED+ button to increase the fan speed to the MED setting. Press again to increase the fan speed to HIGH setting. To decrease the fan speed, press the SPEED– button until your desired setting is reached. The fan speed setting is indicated by the illuminated ring around the fan symbol.
   • To turn the air cleaner OFF, simply press the ON/OFF button on the control panel.
2. Timer
   There are four possible timer settings: 2 (two) hours, 4 (four) hours, 8 (eight) hours, and 12 (twelve) hours. To activate the timer press the TIMER+ button on the control panel. Each time the + button is pressed, it will display the successive settings. To return to a setting already passed, press the TIMER– button. Once a timer setting has been selected, it will remain displayed on the TIMER screen. To operate continuously, cycle down through all timer settings until no timer setting is displayed.
3. Oscillation
   To activate the oscillation feature, press the button. To stop oscillation, press the button a second time. Unit will not automatically realign with foot when oscillation is stopped. To achieve alignment, stop oscillation at the moment the body becomes aligned with the foot.
4. UV-C Bulb
   The UV-C technology in this air cleaner kills germs, bacteria and viruses. To activate the UV-C bulb, press the UV-C button on the control panel. To turn the UV-C bulb off, press the button again.
5. Clean Filter Indicator
   The air cleaner is equipped with a CLEAN FILTER indicator to let you know when it is time to clean the HEPA filters, about every 480 hours of use. When the HEPA filters are ready to be cleaned, the CLEAN FILTER indicator will light up on the control panel.
   If the air cleaner is used daily, we recommend cleaning the HEPA filters more frequently.
   Once the HEPA filters have been cleaned, press and hold the CLEAN FILTER button until it beeps to reset the Indicator.
6. Using the Remote Control
   Battery Installation
   One CR2025 3V battery is included with the remote control. To activate the remote control, pull out the plastic tab protruding from the remote control housing. To change the battery, remove the battery door on the bottom of the remote by sliding the tab and pulling the door away from the back of the remote. Insert the battery into the remote with the + symbol facing up as shown on the drawer.
   NOTE: Always keep the battery and remote control out of the reach of children and pets.

BATTERY NOTE

• If the unit is not going to be used for a long period of time, remove batteries to prevent damage due to possible battery leakage.
• Clean the battery contacts and also those of the device prior to battery installation.
• Remove used batteries promptly.
• Dispose of batteries properly in accordance with all local, state and federal regulations.
• Do not dispose of batteries in fire. Batteries may explode or leak.
• Use only CR2025 battery.
• Incorrect battery installation may cause damage to remote.

Replacing HEPA Filter

With regular cleaning the life of the HEPA filter is approximately 12-18 months under typical household usage and conditions. We recommend replacing your filters every year. To purchase replacement HEPA filters, model # AR-OTFL, go back to your retailer (where you purchased your air cleaner), or visit www.homedics.com.

After cleaning or replacing the HEPA filters, be sure to reset the filter indicator by pressing the CLEAN/RESET FILTER INDICATOR BUTTON for several seconds until an audible chime sounds and the light turns off.

Replace UV-C Bulb Indicator

The UV-C Bulb is equipped with a REPLACE UV-C BULB indicator to let the user know it is time to replace the bulb. When the bulb needs to be changed, the REPLACE UV-C BULB indicator will light up on the control panel. Once the UV-C bulb has been replaced, press and hold the REPLACE UV-C BULB button until it beeps to reset the indicator. To purchase a replacement UV-C bulb, model # PP-AROTUV, visit www.homedics.com.

Replacing the UV-C Bulb

1. Unplug unit and allow bulb to cool.
2. Open and remove the rear grill.
3. Remove the upper HEPA filter.
4. Use a screwdriver to remove two screws and detach the metal UV-C bulb cover.
5. Grasp the UV-C bulb firmly and pull it from the bulb socket.
6. Replace the new UV-C bulb and push it into the bulb socket.
7. Replace the metal UV-C bulb cover.
8. Replace the rear grill.

NOTE: UV-C bulb contains Mercury (Hg). Dispose of according to Local, State and Federal Law / www.lamprecycle.org

Cleaning the HEPA Filters

Make sure that the air cleaner is turned OFF and unplugged from the outlet before cleaning.

1. Open the rear grill by gently pushing down on the tab on the top of the grill plate.

   Fig. 5
2. Open the plate outward until the tabs at the bottom of the grill plate easily slide away from the unit.

   Fig. 6
3. Remove the HEPA filters from the main unit.

   Fig. 7
   Note: There are two HEPA filters in this air cleaner.
4. Use the brush attachment with your vacuum cleaner. Run the attachment along both sides of the HEPA filters, cleaning thoroughly between the accordion folds of the filters.

   Fig. 8
5. Place the clean HEPA filters back in the main unit, making sure they are firmly seated inside the unit.

   Fig. 9
6. Place the tabs at the bottom of the grill plate into the base of the unit. Gently push the grill plate back into place until you hear a click sound indicating that the grill is firmly latched.

   Fig. 10

DO NOT USE WATER OR ANY HOUSEHOLD CLEANERS OR DETERGENTS TO CLEAN THE HEPA FILTERS.

Cleaning and Maintenance

For best performance, we recommend:

• Vacuum the HEPA filters using the brush attachment of your vacuum cleaner once a month
• NEVER use water or any household cleaners or detergents to clean the HEPA filters
• Clean off the outside of the unit with a dry cloth once a month
• NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit
• Clean off the grill plate using a damp cloth or the brush attachment of your vacuum once a month
• NEVER use wax, polish, or any chemical solution to clean the grill plate
• Replace the HEPA filters every 12-18 months
• If you will not be using the air cleaner for an extended period of time, please store in the box, or a cool, dry place.

Troubleshooting

SERVICE & WARRANTY

e-mail: cservice@homedics.com

1-800-466-3342
8:30 am – 7:00 pm (EST) Monday-Friday

LIMITED TWO YEAR WARRANTY
To obtain warranty service on your Homedics product, contact a Consumer relations representative by telephone at 1-800-466-3342 for assistance.
Pease make sure to have the model number of the product available.

For more information regarding our product line in the USA, please visit: www.homedics.com

REGISTER YOUR PRODUCT AT: www.homedics.com/register
Your valuable input regarding this product will help us create the products you will want in the future.

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING

TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Always unplug the air cleaner from the electrical outlet immediately after using and before cleaning.
• Keep cord away from heated surfaces.
• Always place the air cleaner on a firm, level surface.
• Always place the air cleaner at least six (6) inches away from walls and three (3) feet from heat sources such as stoves, radiators, or heaters.
• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
• DO NOT place or store appliance where it can fall or be pulled into a tub or sink.
• DO NOT place in or drop into water or other liquid.
• Keep dry - DO NOT operate in a wet or moist conditions.
• Check your air cleaner cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tightly in the outlet.

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS:

• Extreme caution is necessary when any air cleaner is used by or near children or invalids and whenever the air cleaner is left operating and unattended.
• Always unplug the air cleaner when not in use.
• Do not operate the air cleaner with a damaged cord or plug, or after the air cleaner malfunctions, has been dropped or damaged in any manner. Return to HoMedics Consumer Relations for examination, electrical or mechanical adjustment, or repair.
• This air cleaner is not intended for use in bathroom, laundry areas and similar moist indoor locations. Never locate air cleaner where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas where it can be tripped over.
• To disconnect the air cleaner, first turn controls to the OFF position, then remove plug from outlet.
• Do not tilt or move the air cleaner while it is in operation. Shut off and remove plug from outlet before moving.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air cleaner.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surface, like a bed, where openings may become blocked.
• Use this air cleaner only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• DO NOT use outdoors.

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.

The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model's CADR for Dust and the electrical energy it consumes, or CADR/Watt.

SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE
