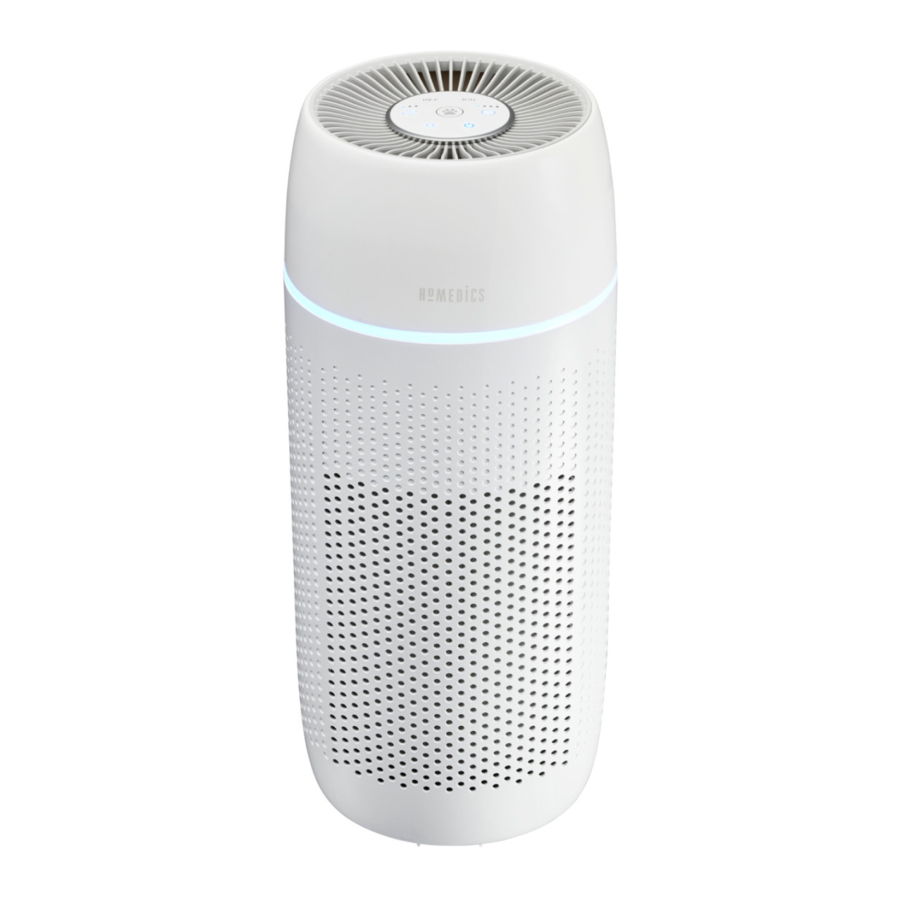

Homedics TotalClean PetPlus AP-PET35 Manual

UNIQUE FEATURES & SPECIFICATIONS

ALL-IN-ONE TRUE HEPA FILTRATION SYSTEM

• TRUE HEPA FILTRATION
  Removes up to 99.97% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odor, mold spores, and smoke that passes through the filter.
• PETPLUS ODOR FILTRATION
  Reduces litter box odor, wet dog smell, household odors and VOCs (volatile organic compounds)/gases as shown by independent laboratory testing.
• PREFILTER
  Captures large particles.

UV-C TECHNOLOGY WITH ON/OFF
When on, the UV-C technology light kills viruses and bacteria.

IONIZER WITH ON/OFF
When on, the ionizer assists in the air purification process.

3 SPEEDS
Low, medium, and high.

BUILT-IN TIMER
Choose from 2, 4, 8, or 12 hours.

REPLACE FILTER INDICATOR
Illuminates when it is time to replace the filter.

SUGGESTED ROOM SIZE
266 FT²/24.7 M². Portable air purifiers will be more effective in rooms where all the doors and windows are closed.

AIR CHANGES PER HOUR
This air purifier will purify the air in a 1343 FT²/124.7 M² room (assuming an 8 FT/2.43 M ceiling) 1 time per hour on high speed in a closed room.

OIL TRAY
Includes 3 essential oil pads. Use with essential oil (not included) to deliver scent into the air.

DEVICE OVERVIEW

HOW TO USE

BEFORE TURNING THE UNIT ON

• Take the air purifier out of the box and remove the clear protective plastic bag.
• Place the air purifier on a firm, level surface.
• Plug the power cord into a household electrical outlet.

POWER BUTTON AND FAN SPEED SETTINGS

• To turn the air purifier on, press the power button.
• This air purifier has 3 fan speed settings: low (1), medium (2), and high (3). The higher the fan speed setting, the faster the air will be purified. To select or change fan speed, press the fan speed button until the desired setting is reached.

UV-C TECHNOLOGY WITH ON/OFF

UV-C technology kills viruses and bacteria by penetrating its DNA, resulting in the microorganism's death or the inability to reproduce. Press the button to turn the UV-C technology on. The LED will glow. Press the button again to turn the UV-C technology off.

IONIZER SETTING WITH ON/OFF

Ion particles have a negative charge that attaches to airborne particles, making them easier to be captured by the filtration system. Press the ionizer button to turn the ionizer on. The LED will glow to indicate the ionizer is in use. Press the ionizer button again to turn the ionizer off.

NOTE: Dust particles may accumulate on surfaces around the air purifier when the ionizer is in use. These dust particles can be vacuumed or wiped away with a soft, damp cloth.

NOTE: You may hear occasional popping sounds when the ionizer is used. This is normal.

NOTE: The ionizer produces less ozone than the UL-established limits of 0.05 ppm. Ozone may be harmful around birds and small pets. To prevent ozone buildup, use the ionizer feature in a well-ventilated area.

NIGHT-LIGHT

The night-light has 3 options. Press the night-light button once to turn the night-light on. Press again to turn the night-light and the display lights off. Press a third time to turn the display lights on.

TIMER

Press the timer button until the desired timer setting is lit on the display. The timer button will cycle through the following settings: 2 hours, 4 hours, 8 hours, 12 hours, and off. To cancel the timer at any time, press the timer button until all timer LEDs are off. The air purifier will operate continuously when the timer is off.

OIL TRAY

Use essential oil (not included) to deliver scent into the air.

NOTE: For use with the included HoMedics essential oil pads only. Do not add essential oils anywhere else in the unit, as it may cause damage.

NOTE: Do not leave a filled essential oil pad in the oil tray if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

ADDING ESSENTIAL OILS

PUTTING OIL ANYWHERE BUT THE OIL TRAY WILL DAMAGE THE AIR PURIFIER.

1. The oil tray is located on the side of the air purifier above the night-light.

2. Push to open and remove the tray.

3. Place 1 aroma pad (3 included) into the oil tray.

4. Add 5–7 drops of essential oil to the pad. You may use more or less depending on personal preference.

   Only place essential oil on the pad and NOT directly into the tray.

5. Place the oil tray back in its compartment and push to close. The scent will start automatically when the air purifier is turned on.

To purchase genuine HoMedics Replacement Essential Oil Pads, Model # UHE-PAD1, go to your retailer where you purchased your HoMedics TotalClean Air Purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

To purchase genuine HoMedics Essential Oils, go to your retailer where you purchased your HoMedics TotalClean Air Purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

FILTER REPLACEMENT

REPLACE FILTER LIGHT

The replace filter light illuminates when it is time to replace the True HEPA filter based on the air purifier's hours of use.

REPLACING THE TRUE HEPA FILTER

For optimal performance, replace every 12 months under normal usage conditions.

1. Unplug the air purifier. Pull the indents on each side of the grille cover.

2. Remove the grille cover and set aside.

3. Pull the tabs to remove the old filter.

4. With the filter tabs facing outward, insert the new True HEPA filter.

5. Place the tabs at the bottom of the grille cover into the base of the air purifier. Gently push the grille cover until it snaps into place.

6. Plug the power cord into a standard AC outlet and press the power button. Press and hold the ionizer button for 3 seconds to reset the indicator.


To purchase genuine HoMedics replacement True HEPA filters, model AP-PET35FL, go back to your retailer where you purchased your air purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

UV-C BULB REPLACEMENT

The UV-C bulb is designed to last for approximately 10,000 hours of use. The UV-C button on the control panel will flash RED when the UV-C bulb burns out and needs to be replaced.

NOTE: The air purifier will continue to operate without the UV-C function when the UV-C bulb burns out.

Do not operate the air purifier without the protective UV-C bulb cover.

Unplug the power cord before servicing or replacing the UV-C bulb.

1. Unplug the air purifier and remove the True HEPA filter. Using a Phillips-head screwdriver (not included), unscrew the 2 screws located on the UV-C bulb cover.

2. Remove the cover to expose the UV-C bulb.


3. Gently push from the sides and rotate the UV-C bulb to remove.

4. Remove and replace the UV-C bulb. Reinstall the UV-C bulb cover, True HEPA filter, and grille cover.


NOTE: The UV-C bulb contains mercury (Hg). Dispose of according to local, state, and federal law.

To purchase genuine HoMedics UV-C replacement bulbs, model AP-UVC1, go back to your retailer where you purchased your air purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

CLEANING AND MAINTENANCE

CLEANING THE PREFILTER

NOTE: For best performance, vacuum the prefilter once a month under normal usage.

1. Unplug the air purifier.
2. Remove the True HEPA filter as described in the Replacing the True HEPA Filter section.
3. Vacuum the outside of the True HEPA filter using the brush attachment of your vacuum cleaner, cleaning it thoroughly.

4. Place the True HEPA filter back into the air purifier and close the grille.
5. Plug the power cord into a household electrical outlet.

TO CLEAN THE OIL TRAY

Open the oil tray and remove the pad. Essential oil pads should be changed when switching to a different essential oil scent. If continuing to use the same scent, set the essential oil pad aside for reuse. Wipe down the inside of the oil tray with a soft cloth. Place the essential oil pad back in the tray and close.

NOTE: Leave the essential oil pad out of the oil tray when storing.

FOR BEST PERFORMANCE

• NEVER use water or any household cleaners or detergents to clean the True HEPA filter.
• Clean off the outside of the unit with a soft, dry cloth as needed.
• NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit.
• Clean off the grille cover using a soft, damp cloth or the brush attachment of your vacuum as needed.
• Replace the True HEPA filter every 12 months under normal usage conditions.
• Always use a genuine HoMedics replacement filter for optimal performance.

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.
The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model's CADR for smoke and the electrical energy it consumes, or CADR/Watt.

TROUBLESHOOTING

SERVICE & WARRANTY

FOR SERVICE IN THE USA
cservice@homedics.com
8:30am–7:00pm EST Monday–Friday
1-800-466-3342

FOR SERVICE IN CANADA
cservice@homedicsgroup.ca
8:30am–5:00pm EST Monday–Friday
1-888-225-7378

LIMITED 3-YEAR WARRANTY
To obtain warranty service on your HoMedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

For more information regarding our product line in the USA, please visit www.homedics.com.
For Canada, please visit www.homedics.ca.

REGISTER YOUR PRODUCT AT: www.homedics.com/register
Your valuable input regarding this product will help us create the products you will want in the future.

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING.

TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Always unplug the air purifier from the electrical outlet immediately after using and before cleaning or replacing filters.
• Keep cord away from heated surfaces.
• Always place the air purifier on a firm, level surface.
• Always place the air purifier at least 6 inches away from walls and 3 feet from heat sources such as stoves, radiators, or heaters.
• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
• DO NOT place or store appliance where it can fall or be pulled into a tub or sink.
• DO NOT place in or drop into water or other liquid.
• Keep dry — DO NOT operate in wet or moist conditions.
• Check your air purifier cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tightly in the outlet.

NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

DO NOT attempt to defeat this safety feature. To do so could result in an electric shock hazard.

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

• Always unplug the air purifier when not in use.
• DO NOT operate the air purifier with a damaged cord or plug, or after the air purifier malfunctions, or has been dropped or damaged in any manner. Return to a HoMedics Service Center for examination, electrical or mechanical adjustment, or repair.
• This air purifier is not intended for use in bathrooms, laundry areas, and similar moist indoor locations.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas where it can be tripped over.
• To disconnect the air purifier, first turn controls to the off position, then remove plug from outlet.
• DO NOT tilt or move the air purifier while it is in operation. Shut off and remove plug from outlet before moving.
• DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air purifier.
• DO NOT block air intakes or exhaust in any manner. DO NOT use on any soft surface, like a bed, where openings may become blocked.
• Use this air purifier only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• DO NOT use outdoors.
• This product is intended for household use only.

SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE.

This product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period.
