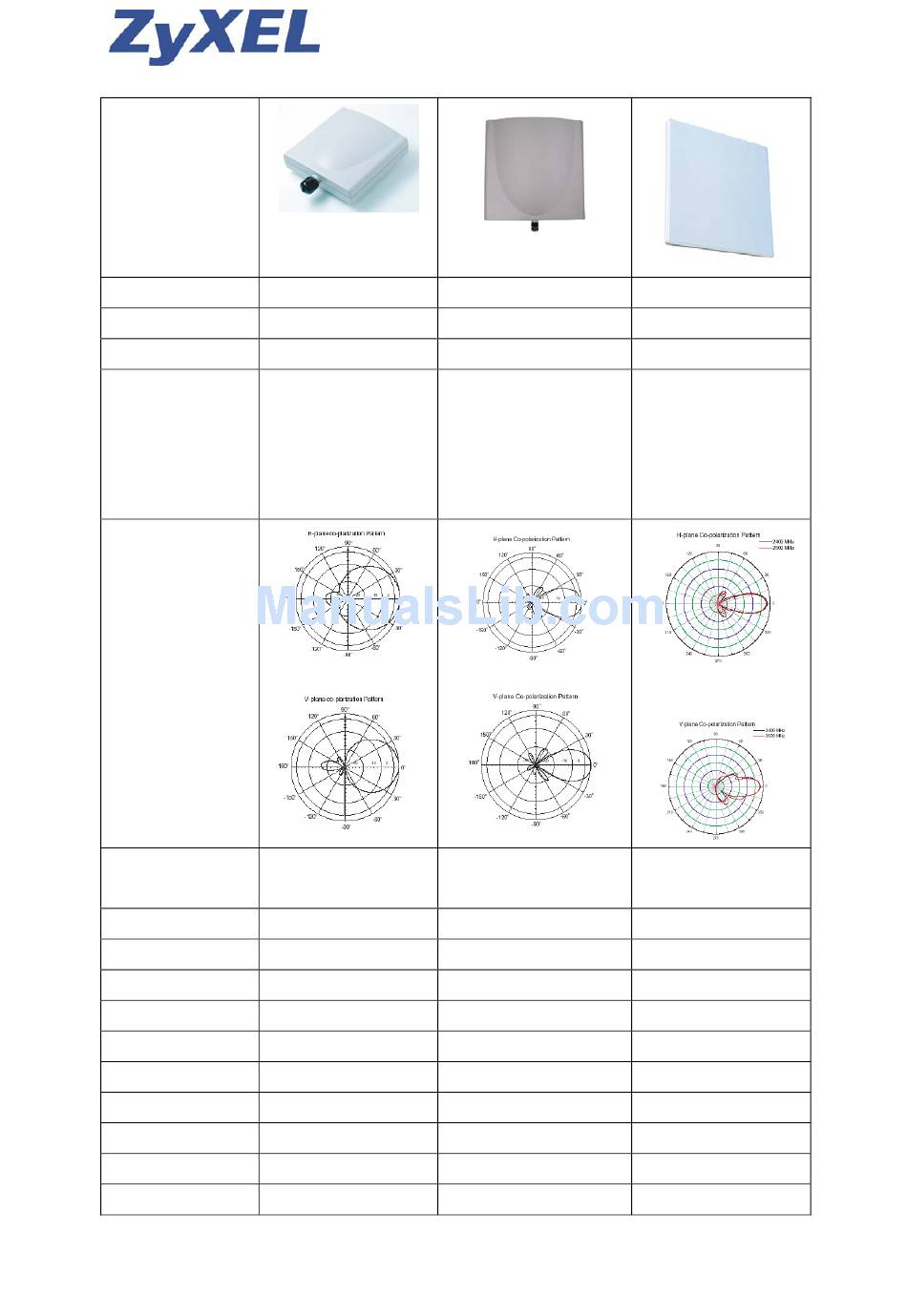

ZyXEL Communications ZYAIR EXT-109 Datasheet

Model name ZyAIR EXT-109
Description Directional Panel
Application Outdoor
Bandwidth HPBW/
Horizontal: 65
degree
HPBW/ Vertical:
60 degree
Pattern
Frequency 2400MHz ~
Range 2500MHz
Gain 9dbi
VSWR 1.5:1MAX
Polarization Linear, Vertical
Power handling 20W (cw)
Impedance 50 Ohms
Connector N Jack (Female)
Temperature -40C ~ +80C
Humidity 95%@25C
Weight 107g
Dimension 114 x 114 x 40 mm 200 x 200 x 50 mm
06/05 Copyrights by ZyXEL, Taiwan
ZyAIR EXT-114
Directional Panel
Outdoor
HPBW/ Horizontal:
30 degree
HPBW/ Vertical:
30 degree
2400MHz ~
2500MHz
14dbi
1.5:1MAX
Linear, Vertical
10W (cw)
50 Ohms
N Jack (Female)
-40C ~ +80C
95%@25C
0.4kg
ZyAIR EXT-118
Directional Panel
Outdoor
HPBW/
Horizontal: 15
degree
HPBW/ Vertical:
15 degree
2400MHz ~
2500MHz
18dbi
1.5:1MAX
Linear, Vertical
50W (cw)
50 Ohms
N Jack (Female)
-40C ~ +80C
95%@25C
1.6kg
360 x 360 x 16mm
