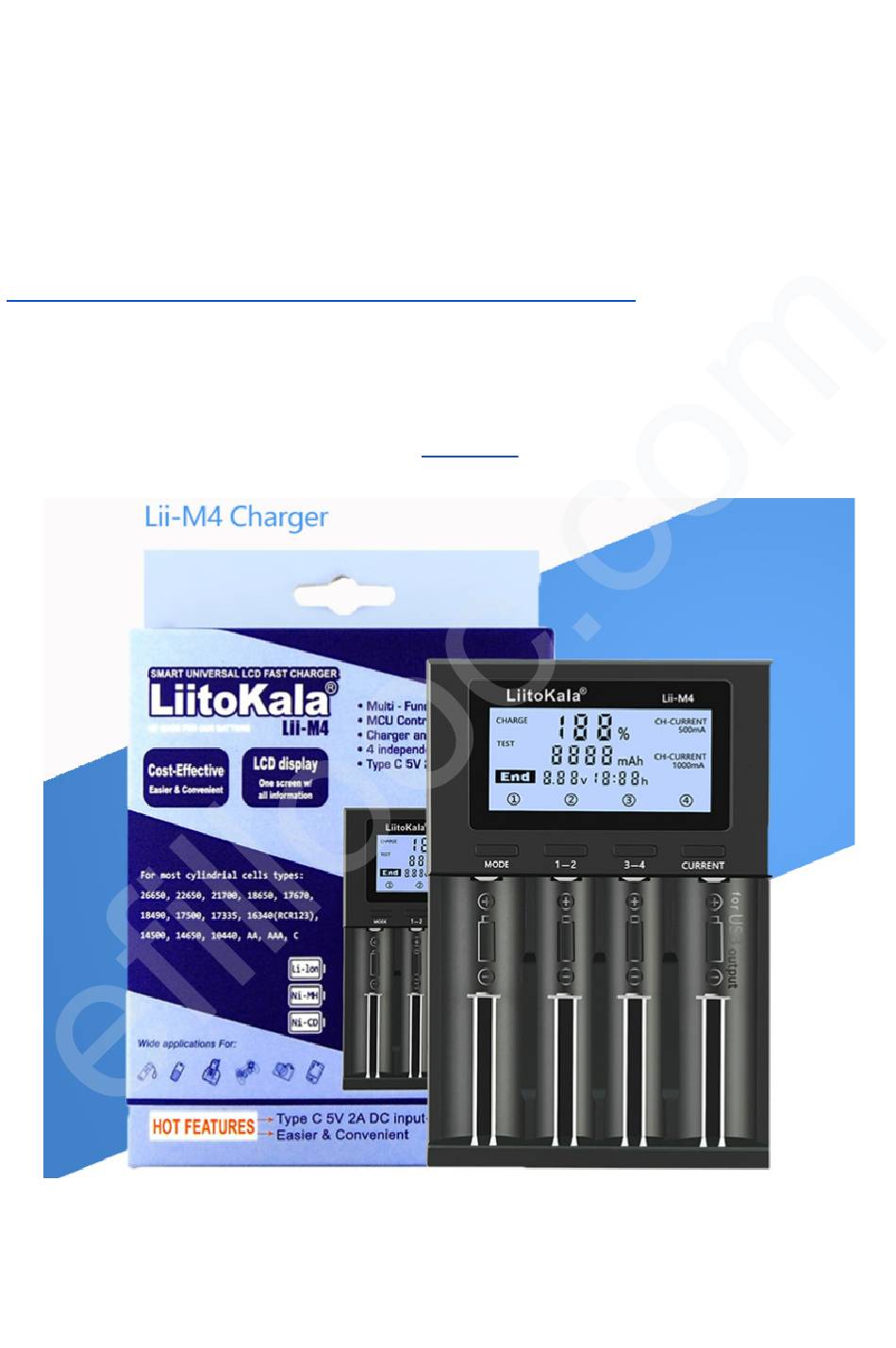

- Page 1 User Guide for Liitokala Lii-M4 Jul 2024 Compiled with data from Liitokala website...
- Page 2 In this Guide: Features Specifications Functional characteristics Description of key points Mode operation instructions CHARGE (charging mode) TEST (Capacity Detection Mode) USB 5V output Package List https://efillooc.com Uncommon Lifestyle accessories.
- Page 3 Features: https://efillooc.com Uncommon Lifestyle accessories.
- Page 4 4-slots independent charging and independent management system, Type-C 5V/2A input. Multiple safety protection functions of over-charging, over-discharge, short-circuited and can automatically Identify broken/defective batteries(will not charge bad batteries). Charging under constant voltage and current. Built-in LCD display screen shows the Operating mode(CHARGE/TEST), battery voltage (V), working current (mA), charging time (H), battery capacity (mAh), percentage of electricity (%) and other parameters are...
- Page 5 Specifications: Brand Name LiitoKala Model Number Lii-M4 Type Battery Charger Input voltage DC 5V/2A Lithium battery charging 4.20V 500mA*4 /1000mA*2 current NiMH battery charging 1.48V 500mA*4 current Rechargeable battery 18650, 26650, 21700, 14500, specifications AA, AAA, etc. USB output 5V 1000mA...
- Page 6 Functional characteristics ● 1. Using Type-c interface for 5.0v input; 2. Two optional charging currents: 500mA/1000mA; 3. Battery capacity detection function; ● 4. It is possible to charge batteries of different specifications (18650/26650/.../AA/AAA) simultaneously; ● 5. This product adopts an independent LCD display, with clear parameters such as working mode (CHARGE and TEST), battery voltage (V), working current (mA), charging time (h), battery...
- Page 7 ● 8. CHARGE and TEST modes can work simultaneously; Independently set charging capacity detection/normal capacity detection function, without separate discharge detection function; ● 10. Multiple protection functions: overcharging and discharging, short circuit, 0V voltage activation function, 1.65V-2.2V cannot be charged, intelligent identification of faulty batteries and reverse battery detection protection;...
- Page 8 Description of key points： The charger has 4 button points, including mode selection point (MODE), channel 1-2 query point, channel 3-4 query point, and current selection point. These 4 buttons also have the function of lighting up the LCD backlight, making it simple and convenient to use;...
- Page 9 press the Current key to change the current size. After selection, there is no action for 8 seconds to enter the working state, which is easy to operate; 2.1-2 channel buttons: corresponding to the situation of the first and second channels; Continuously lightly pressing the button can take turns selecting and viewing the data of the first and second channels;...
- Page 10 Mode operation instructions: When the charger is powered on, the LCD screen of the charger will instantly turn on and display all lights. After 3 seconds, it will enter the ready state. If the battery is not inserted, it will display "null".
- Page 11 CHARGE (charging mode)： 1. Connect the charger to the power supply and insert it into the battery. The system automatically enters charging mode (CHARGE), and the charger automatically defaults to a charging current of 500mA. Within 8 seconds, you can select 500mA or 1000mA current through the current button (Current) to charge.
- Page 12 3. charging mode, by lightly pressing buttons 1-2 and 3-4, you can view parameters such as charging power (mAh), charging time (h), charging current (mA), and battery voltage (V) for each channel. After the battery is fully charged, "End" will be displayed; (Note: When using a 1000mA current for charging, only two channels can be used for charging and only lithium-ion batteries can be used.
- Page 13 TEST (Capacity Detection Mode) 1.The TEST mode is to first fully charge the battery, then discharge the battery and record the discharge level and other parameters. Afterwards, the battery is automatically charged without recording the charging level, and the screen displays the discharge stage's level and other parameters;...
- Page 14 3. When the battery is fully charged for the first time, the system automatically switches to discharge, and the discharge current is fixed at 500mA. At this time, the system will record the discharge data to detect the battery discharge capacity. 4.
- Page 15 4 for USB output to be effective; At this point, the 5V electronic product can be powered on. Package List: 1 * LII-M4 Battery Charger 1 * USB Cable 1 * User Manual(Chinese English) https://efillooc.com Uncommon Lifestyle accessories.
