Liitokala Lii-500 Instruction Manual
Thanks for using our company's products-Lii 500, which is a high-end and smart charger
with
four
independent
charging/battery
capacity
detection/battery
internal resistance
detection/
anti-reverse
polarity/short
circuit
protection/over-current protection/temperature-
control
protection/charging
between
1.65V-2.2V/USB
5V output/battery activation without
any volt, ten major functions. And automatically monitors the battery in a timely manner when
the battery was charging and testing.
Lii-500 can be filled with a variety of different types of rechargeable cylindrical
lithium-ion batteries and AA/AAA cylindrical NI-MH battery, which widely used in charging the
battery for flashlights, power tools, instruments and apparatuses, digital
camera and other electronic products. Safe, portable and powerful, Lii-500 is your good helper when
you are at home or traveling.

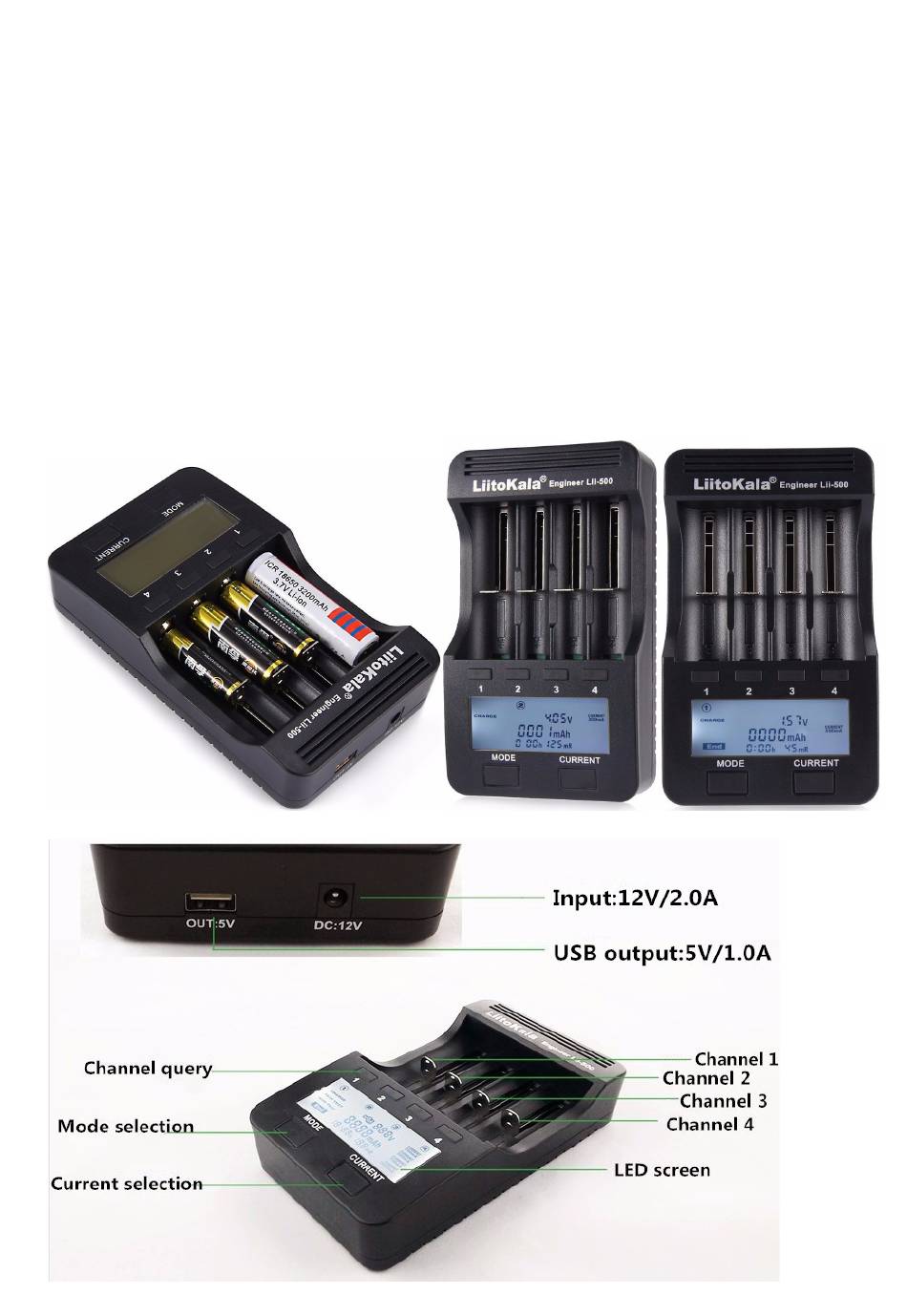

Appearance diagram :

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lii-500 and is the answer not in the manual?

Questions and answers

Summary of Contents for LiitoKala Lii-500

  • Page 1 AA/AAA cylindrical NI-MH battery, which widely used in charging the battery for flashlights, power tools, instruments and apparatuses, digital camera and other electronic products. Safe, portable and powerful, Lii-500 is your good helper when you are at home or traveling.
  • Page 2 Warning 1.This charger can only charge Cylindrical lithium-ion and NI-MH battery. Lithium iron phosphate battery is unavailable. 2.Please refer to the instructions carefully before use, pay attention to the recommended battery charging current, do not exceed the recommended charging current. 3.Do not use other power adapter.
  • Page 3 7.CHARGE mode, FAST TEST mode and NOR TEST mode can work simultaneously(set charging dependently/quickly detecting battery capacity/Normally detecting capacity) 8.Series protection functions: over-charging over-discharging/short circuit/activation without any volt/charging between 1.65V-2.2V/Intelligently recognize the bad battery/protecting the reversed battery 9.With the standard USB 5V/1000mA output function/Complete USB output from one lithium batteries to four lithium batteries/NI-MH battery can not with USB output 10.Equipped with the specialized power adapter.
  • Page 4 not be changed, if you need to change it , you can press the change mode key for several seconds to select again. 3.In the charging mode (CHARGE), you can change the independent charging, different current and different batteries randomly in eight seconds . It is easy to operate. Press the (1234) key firstly, the mode key secondly, and the current key lastly in eight seconds , it can change the current, independently charging, mixed charging and capacity detection.
  • Page 5 Battery Choose Into Charging Current Discharging FAST TEST Again 2.When the charger put with battery connect to the power supply, select the NOR TEST mode and press the MODE key in two seconds in any state, it can enter the TEST NOR mode. 3.When into the NOR TEST mode, you can choose the 300mah/500mah/700mah/1000mah current through the key CURRENT within eight seconds, the system will lock the selected current after eight seconds.
  • Page 6 Display schematic diagram:...
