- Page 1 BT Receiver BT Receiver...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 21.10.2024, ID: 437452 (V2)
- Page 3 Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features................................9 Installation and starting up........................ 10 Connections and controls........................11 Technical specifications........................12 Plug and connection assignment....................14 Protecting the environment......................16 BT Receiver BT Receiver...
- Page 4 BT Receiver BT Receiver...
- Page 5 Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
- Page 6 General information Warning signs Type of danger Warning – danger zone. BT Receiver BT Receiver...
- Page 7 Safety instructions Safety instructions Intended use The device is used to receive audio signals that are wirelessly transmitted via Bluetooth. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damage resulting from improper use.
- Page 8 Safety instructions NOTICE! Damage to the external power supply due to high voltages! The device is powered by an external power supply. The external power supply can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess voltages can also cause a risk of injury and fires. Make sure that the voltage specification on the external power supply matches the local power grid before plugging in the power supply.
- Page 9 Features Features Receiver for digital wireless transmission of audio signals via Bluetooth Outputs: 1/4" jack sockets (usable for balanced and unbalanced wiring) Plug-in power supply included Handy magnetic holder on the back BT Receiver BT Receiver...
- Page 10 Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

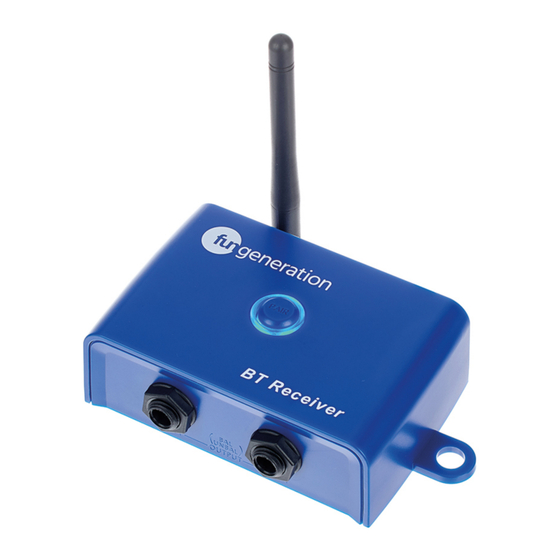

- Page 11 Connections and controls Connections and controls BT Receiver UNBAL LEFT OUTPUT RIGHT ö 1 [OUTPUT LEFT / RIGHT] | 6.35-mm jack sockets as signal outputs 2 Connection for the supplied power supply 3 [ANT] | Antenna for the Bluetooth signal 4 Operating button with light ring.
- Page 12 Technical specifications Technical specifications Output connections Signal 2 × 6.35-mm jack sockets Level Class2 4 dBm Signal-to-noise ratio 75 dB Total harmonic distortion (THD) < 0.01% Bluetooth® Frequency range 2.400 GHz … 2.480 GHz Max. transmission power 100 mW Standard Version 4.0 Protocol HFP V1.6 wideband speech (HD voice ready);...
- Page 13 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) BT Receiver BT Receiver...
- Page 14 Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
- Page 15 Plug and connection assignment 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground BT Receiver BT Receiver...
- Page 16 Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
- Page 17 When disposing of the device, comply with the rules and regulations that apply in your country. You can also return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de.
- Page 18 Notes BT Receiver BT Receiver...
