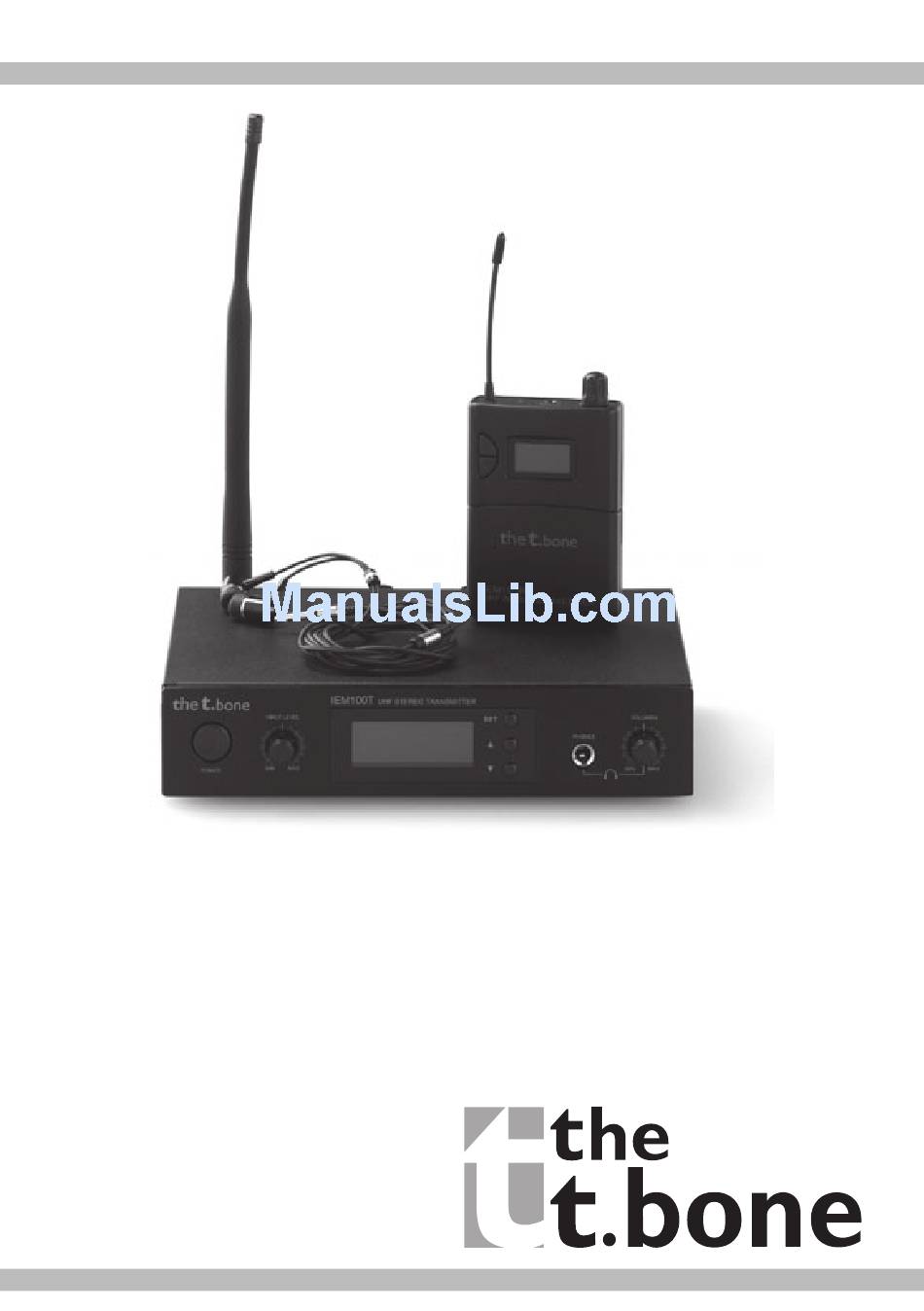

  • Page 1 IEM 100 - 800 / 100 - 863 MHZ Owner’s Manual VHF WIRELESS INEAR SYSTEM...

  • Page 2: Safety Instruction

    Thanks a lot for purchasing our wireless InEar system. Please read this user manual carefully and follow the instructions to avoid danger or damage to the unit due to mishandling. Keep this user guide for future reference. If you give the unit to another user, be sure that he also receives this instruction booklet.
  • Page 3 Keep children away from the device and power cord! www.thomann.de...

  • Page 4: Transmitter Front View

    Overview Transmitter front view 1. POWER Keep this button pressed for 2 seconds to switch the unit on or off. 2. INPUT LEVEL Turn this control to set the input sensitivity. 3. LCD The LCD displays information about operating or setup. 4.
  • Page 5 XLR jack. 4. PAD Set this switch to „-12 dB“, to attenuate the input signals by 12 dB. If you set it to „0 dB“ there will be no attenuation. 5. ANTENNA Connect the transmitter antenna provided here. www.thomann.de...

  • Page 6: Receiver View

    Receiver view 1. ANT Connect the receiver antenna provided here. 2. RF This LED lights up, when the unit receives a transmission signal. 3. PHONES Connect the earphones here. 4. ON / OFF On-/Off switch and volume control: Turn this knob clockwise past the resistance to switch the receiver on.

  • Page 7: Operating The Device

    Should the batteries leak, put on a pair of protective gloves and clean the battery compartment and terminals with a dry cloth. www.thomann.de...

  • Page 8: Transmitter Setup

    Transmitter setup Frequency group and channel selection: Press the SET button, until the GROUP indicator flashes. Choose a suitable group using the / buttons, as shown in the diagrams on the left. Then press the SET button again, until the CHANNEL indicator flashes.

  • Page 9: Receiver Setup

    The lock function: Press the SET button repeatedly, until the symbol appears. Now press the  or  button to release or lock the unit. A locked unit allows you to view the settings, but not to change them. www.thomann.de...
  • Page 10 RF signal indicator: The receiver indicates the strength of the RF signal with 5 bars of different height. Battery power indicator: The more bars shown in the battery symbol, the more powerful are the inserted batteries. And this is how the LCD looks in normal operation.

  • Page 11: Technical Specifications

    100 g (without batteries) Power requirements 2 x 1.5 batteries, size AA Ø 5 hours Battery life Our products are subject to a process of continual further development. Therefore modifications to the technical features remain subject to change without further notice. www.thomann.de...
  • Page 12 © 2011 • Musikhaus Thomann e. K. • Treppendorf 30 • 96138 Burgebrach • Germany • www.thomann.de...
