AEG LFA6I8275A User Manual

AEG LFA6I8275A User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
LFA6I8275A
USER
MANUAL
EN
User Manual
Washing Machine

Advertisement

loading
Need help?

Need help?

Do you have a question about the LFA6I8275A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AEG LFA6I8275A

Summary of Contents for AEG LFA6I8275A

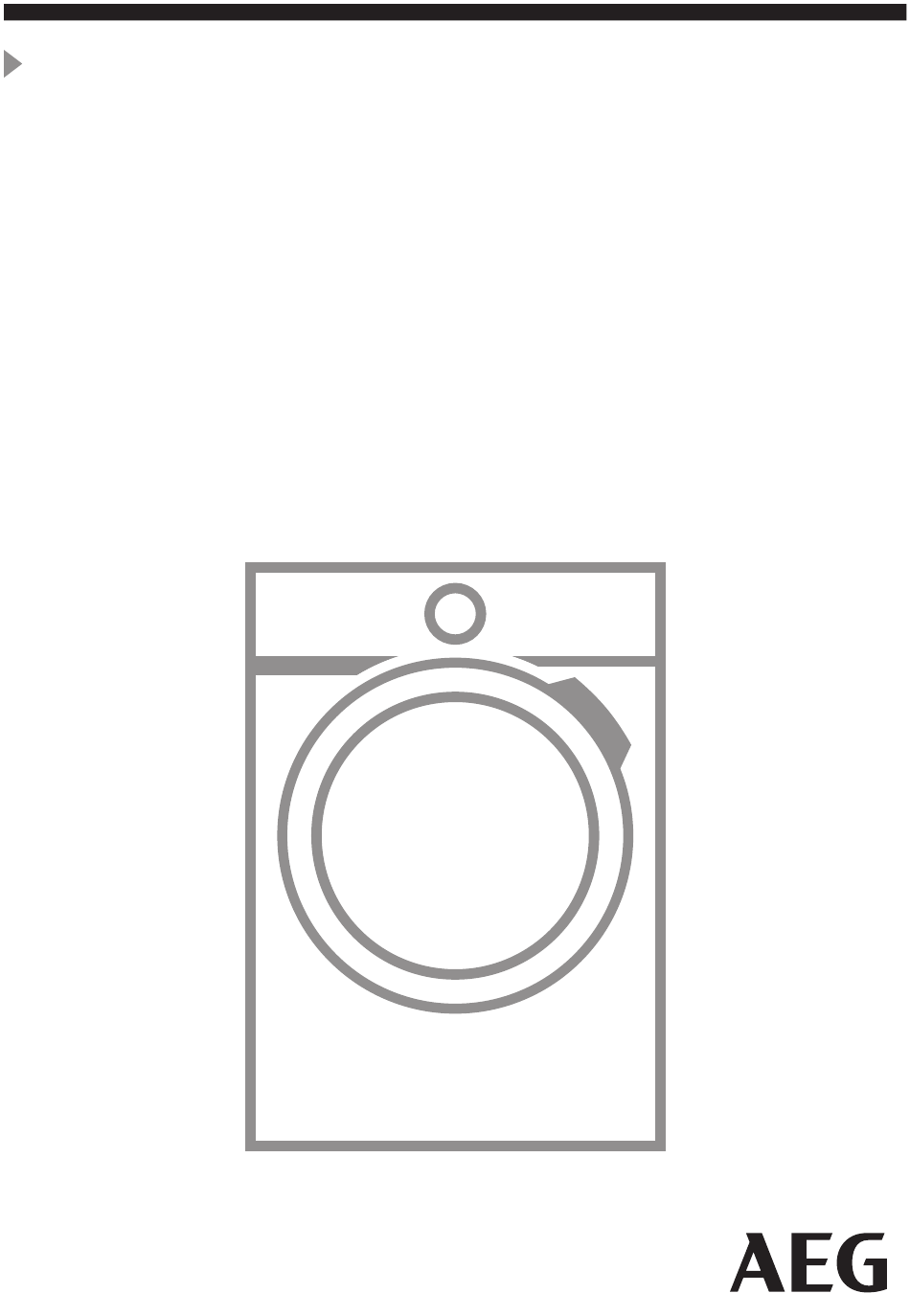

  • Page 1 LFA6I8275A User Manual Washing Machine USER MANUAL...
  • Page 2 18. ENVIRONMENTAL CONCERNS..............38 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 ENGLISH SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 1.2 General Safety This appliance is for washing domestic-type, machine- • washable laundry only. This appliance is designed for single household • domestic use in an indoor environment. This appliance may be used in, offices, hotel guest • rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
  • Page 5 ENGLISH 2. SAFETY INSTRUCTIONS 2.1 Installation 2.2 Electrical connection The installation must comply WARNING! with relevant national Risk of fire and electric regulations. shock. • Remove all the packaging and the • WARNING: This appliance is transit bolts including rubber bush designed to be installed / connected with plastic spacer.
  • Page 6 • When unpacking the appliance, It is motor and drum, pumps, shock possible to see water flowing from the absorbers and springs, washing drum, drain hose. This is due to the testing drum spider and related ball bearings, of the appliance with the use of water heaters and heating elements, in the factory.
  • Page 7 ENGLISH 3. PRODUCT DESCRIPTION 3.1 Special features to the laundry in the drum to achieve perfect washing results in the Your new washing machine meets all minimum possible time. Read the modern requirements for an effective paragraph "The ProSense treatment of laundry with low water, Technology load detection "...
  • Page 8 4. TECHNICAL DATA Dimension Width/ Height/ Total depth 59,6 cm /84,7 cm /57,7 cm Electrical connection Voltage 230 V Overall power 1900 W Fuse 10 A Frequency 50 Hz Level of protection against ingress of solid particles and IPX4 moisture ensured by the protective cover, except where the low voltage equipment has no protection against mois‐...
  • Page 9 ENGLISH WARNING! WARNING! It is possible to see Do not put cardboard, wood water flowing from the or equivalent materials drain hose. This is below the appliance feet to because the washing adjust the level. machine has been tested at the factory. 4.
  • Page 10 2. Position it toward left or right WARNING! depending on the position of the The inlet water shall not water tap. exceed 25 °C. CAUTION! Make sure that there are no 45º 45º leaks from the couplings. 20º 20º...
  • Page 11 ENGLISH It is possible to connect the drain hose in different ways: min.600 mm max.1000 mm • Connect the drain hose to the spigot The end of the drain hose and tighten it with a clamp. must always be ventilated , •...
  • Page 12 If you install the appliance on a plinth WARNING! that is not an accessory supplied by Do not put the tumble dryer AEG, secure the appliance in the fixing under the washing machine. plates. Verify the compatible stacking kit by checking the Read carefully the instructions supplied depth of your appliances.
  • Page 13 ENGLISH 7. CONTROL PANEL 7.1 Control panel description Programme dial • Aclarado/Enxag. option Display Centrif. reduction options touch button Inicio Diferido touch button • No spin option Extra Rápido touch button • Rinse hold option Inicio/Pausa touch button Temp.ºC touch button Opc.
  • Page 14 The digital indicator can show: • Programme duration (e. g. • Delay time (e. g. • Cycle end ( ). • Warning code ( • Indication of total operating hours of the appliance. Refer to the 'Operating hours counter' section in the 'Settings' paragraph for more details.
  • Page 15 ENGLISH 8.4 Centrif. This option is not available with a When you set a programme, the temperature lower than appliance automatically sets the 40 °C. maximum spin speed allowed. • Pre-lava. Touch repeatedly this button to: Use this option to add a prewash phase at 30 °C before the washing Activate the Rinse hold option...
  • Page 16 9. PROGRAMMES 9.1 Programme Chart Washing programmes Programme Programme description Washing programmes Eco 40-60 White cotton and fast-coloured cotton. Normally soiled items. The energy consumption decreases and the time of the washing programme is extended, ensuring good washing re‐...
  • Page 17 ENGLISH Programme Programme description All fabrics, except woollens and delicate fabrics. To spin Centrif./Drenar the laundry and to drain the water in the drum. 1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.
  • Page 18 Programme Default temper‐ Reference spin Maximum load ature speed Temperature Spin speed range range 1200 rpm 60 °C 8 kg Anti-Alergia 1200 rpm - 800 rpm 1200 rpm 8 kg Centrif./Drenar 1200 rpm - 800 rpm 1) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normal‐...
  • Page 19 ENGLISH OPTIONS Inicio Diferido ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ 1) This option is not available with temperature lower than 40 °C. 2) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully load the appliance, however the washing results can be less satisfactory.
  • Page 20 9.2 Woolmark Wool Care - Blue The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manu‐...
  • Page 21 ENGLISH hundreds) for 2 seconds and 76 (tens 3. Press and hold the Inicio Diferido and and units). Extra Rápido buttons for some seconds (within 10 seconds after the If the procedure does not switching on. After these 10 seconds, work (due to timeout, wrong the key combination activates and programme dial position or...
  • Page 22 12.4 Check the position of the CAUTION! Washing heavily oiled, flap greasy stains could cause 1. Pull out the detergent dispenser until damage rubber parts of the it stops. appliance. 2. Press the lever down to remove the dispenser.
  • Page 23 ENGLISH 12.6 Starting a programme With the flap in the position DOWN: with the delay start • Do not use gelatinous Touch the Inicio/Pausa button. or thick liquid The appliance starts the countdown of detergents. the delay start. • Do not put more When the countdown is completed, the liquid detergent than programme starts.
  • Page 24 12.8 The ProSense load 12.9 Interrupting a detection programme and changing the options The programme duration in the display is referred to a When the programme is running, you medium/high load. can change only some options: 1. Touch the button Inicio/Pausa.
  • Page 25 ENGLISH In the display the related door lock 4. Keep the door and the detergent indicator goes off. dispenser slightly ajar to prevent mildew and odours. 5. Close the water tap. 12.13 Draining water out after end of cycle If you have chosen a programme or an option that does not empty out the water of the last rinse, the programme is completed, but:...
  • Page 26 If you set a programme or an option that ends with water in the drum, the Stand-by function doesn't deactivate the appliance to remind you to drain the water. 13. HINTS AND TIPS WARNING! Refer to Safety chapters. 13.1 The laundry load •...
  • Page 27 ENGLISH powder detergents containing • Normally soiled laundry may be bleach for whites and laundry washed without prewash in order to sanitization, save detergent, water and time (the – liquid detergents, preferably for environment is protected too!). low temperature wash •...
  • Page 28 CAUTION! the appliance: this will prevent mildew Do not use alcohol, solvents and odours. or chemical products. If the appliance is not used for a long time: close the water tap and unplug the CAUTION! appliance.
  • Page 29 ENGLISH Clean it when needed, using ammonia cream cleanser agent without scratching 2. Remove the top part of the additive the seal surface. compartment to aid cleaning and Always obey the instructions flush it out under running warm that you find on the water, to remove any traces of packaging of the product.
  • Page 30 14.9 Cleaning the drain pump Regularly check the drain pump filter and make sure that it is clean. Clean the drain pump if: • The appliance does not drain the water. • The drum does not turn. • The appliance makes an unusual noise because of the blockage of the drain pump.
  • Page 31 ENGLISH 180˚ WARNING! Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages. 14.10 Cleaning the inlet hose and the valve filter It is recommended to clean both the filters of the inlet hose and valve...
  • Page 32 14.11 Emergency drain 2. Remove the inlet hose from the appliance by loosening the ring nut. If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump.
  • Page 33 ENGLISH 15.1 Alarm Codes and Possible failures The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables). WARNING! Deactivate the appliance before carrying out any check. With some problems, the display shows an alarm code and the Inicio/Pausa button may flash continuously: Problem Possible solution...
  • Page 34 Problem Possible solution • Make sure that the mains plug is connected to the mains socket. • Make sure that the appliance door is closed. • Make sure that there is no damaged fuse in the fuse box. The programme does •...
  • Page 35 ENGLISH Problem Possible solution Too much foam in the • Reduce the quantity of detergent. drum during the wash‐ ing cycle. After the washing cy‐ • Make sure that the flap is in the correct position (UP for pow‐ cle, there are some der detergent - DOWN for liquid detergent).
  • Page 36 16.3 According to Commission Regulation Eu 2019/2023 Eco 40-60 pro‐ Litres hh:mm °C gramme Full load 0.790 52.0 3:25 53.00 39.0 1151 Half load 0.420 42.0 2:40 53.00 30.0 1151 Quarter load 0.165 33.0 2:35 55.00 22.0 1151 1) Maximum spin speed.
  • Page 37 ENGLISH 17. QUICK GUIDE 17.1 Daily use Connect the mains plug to the mains 2. Set the desired options (1) by means socket. of the corresponding touch buttons. To start the programme, touch the Open the water tap. Inicio/Pausa (2) button. Load the laundry.
  • Page 38 Programmes Load Product description 3 kg Synthetic items or mixed fabric items. Sintéticos Delicate fabrics such as acrylics, viscose, poly‐ 2 kg Delicados ester items. Lana/Lãs + Seda Machine washable wool, hand washable wool 1,5 kg and delicates. Cotton and synthetic lightly soiled items or once 3 kg 20 min.
  • Page 40 www.aeg.com/shop...
