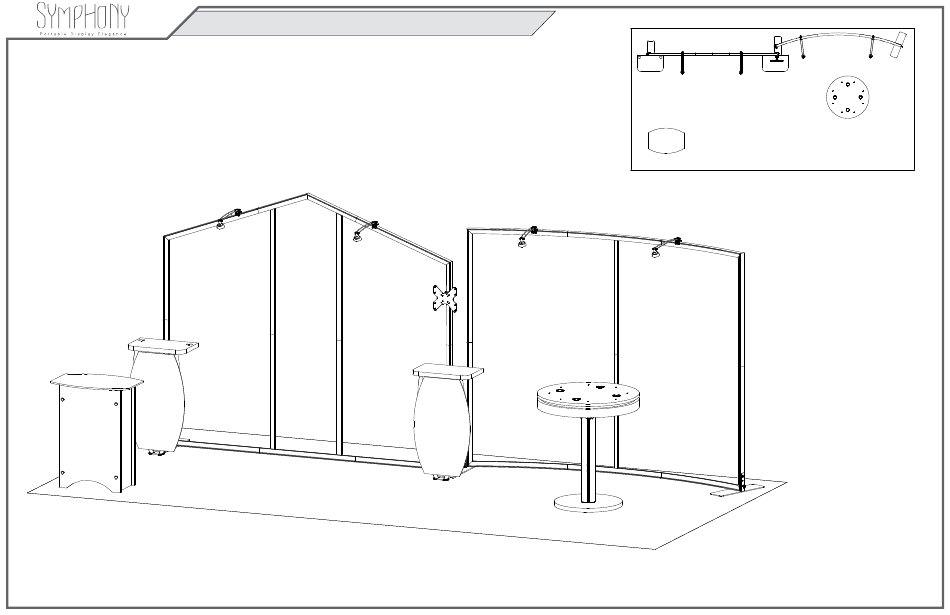

- Page 1 © 2024 Order #XXXXX SYK-2025 - 10’ x 20’ Portable Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2024 Order #XXXXX Plan View = 1 sq ft...
- Page 3 © 2024 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 4 © 2024 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2024 Order #XXXXX SEG Graphic Installation The Perfect Fit SEG Graphic Installation in 3 Steps STEP 1: Attach Corners STEP 2: Attach Middle STEP 3: Attach Sides Always insert graphic into each alternate corner, then into the sides of the frame.
- Page 6 © 2024 Order #XXXXX Case Packing Top View of Each Level 8,10 11,11 Counter 12,12 Lights Legs Workstation Setup Hardware Graphic Monitor Mount Counter Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Case 1 of 3...
- Page 7 © 2024 Order #XXXXX Case Packing Top View of Each Level 11,12 Counter 7,8,9,10 Graphics Legs Graphics Counter Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 2 of 3...
- Page 8 © 2024 Order #XXXXX Case Packing Top View of Each Level Shelf Left & Right Front Panel DoorPanel Side Shelf Counter Top Panels Supports Floor Standoffs & Key Level 4 Level 5 Level 1 Level 2 Level 3 (Bottom level) Case 3 of 3...
- Page 9 © 2024 Order #XXXXX Crate Packing CRATE PACKING MOD-1453 Crate 1 of 1...
- Page 10 © 2024 Order #XXXXX Left Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 30.091”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 30.091”h TSP49 Vertical Extrusion together, using Tool-less Spline Connectors...
- Page 11 © 2024 Order #XXXXX Right Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 41”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 41”h TSP49 Vertical Extrusion together, using Tool-less Spline Connectors...
- Page 12 © 2024 Order #XXXXX Backwall Frames Connection Item Qty. Description Steps: 6” x 22” Two-Connection Base Plate 1) Connect Left Frame & Right Frame assemblies to Base Plate [15]. Base Plate Connection detail. Base Plate Connection 1) Place key hole over bolt on panel &...
- Page 13 © 2024 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphics to assembled frames. Insert narrow side of STEP 1: Attach Corners silicone welt into the channel at corner 1, with fabric to the outside. Repeat for opposite corner 2, then corner 3, Always insert graphic then corner 4.
- Page 14 © 2024 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail.
- Page 15 © 2024 Order #XXXXX Backwall Attachments (cont’d) Steps: 1) Attach Monitor Mount to backwall vertical. Monitor Mount Attachment detail. Monitor Mount Attachment Hook the Mounting Bracket Slide bracket forward, then over the vertical extrusion. down onto V4 connector. V4 connectors stay permanently attached to vertical extrusion.
- Page 16 © 2024 Order #XXXXX SYM-404 Counter Assembly Steps: 1) Attach pins at bottom interior of side panels. Note: Pins are designed to be slightly angled. 2) Use screw caps to secure side panels to front & back panels. 3) Slide floor into the bottom of assembled pedestal base. The floor will sit on pins of the side panels. 4) Connect shelf supports with Velcro inside of panels, then place shelf on top of supports.
- Page 17 © 2024 Order #XXXXX MOD-1453 Charging Table Table Top Completed Assembly Black Bolt Steps: 1) Connect base to post, using bolt. Post 2) Route cord from table top through post and base. 3) Connect table top to post, with fixed brackets, using black bolts.
