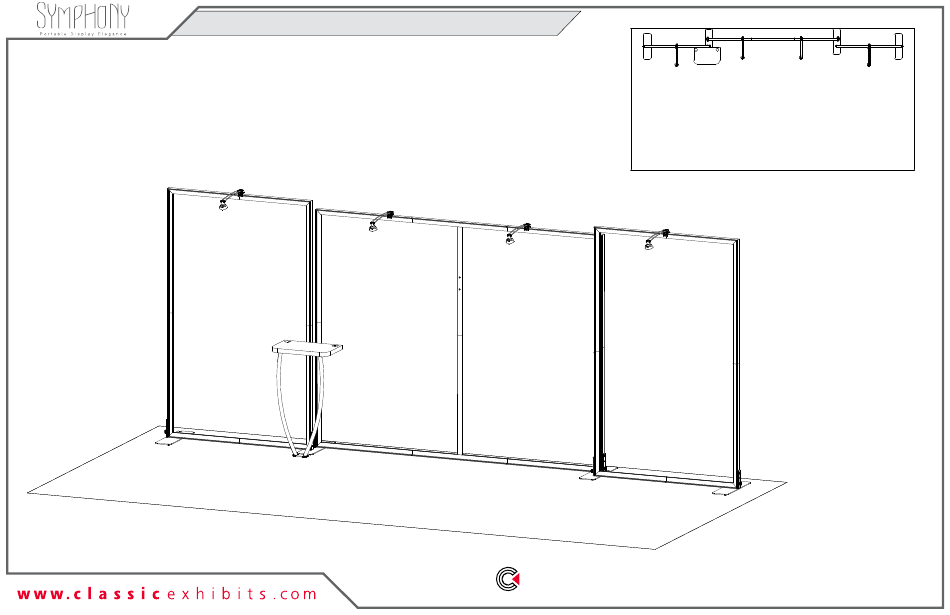

- Page 1 © 2021 REV 11/2021 Order #XXXXX SYK-2001 - 10’ x 20’ Portable Display 10’ 20’ Plan View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2021 Order #XXXXX Plan View = 1 sq ft... -
Page 3: General Setup Instructions
© 2021 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2021 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
-
Page 5: Front View
© 2021 Order #XXXXX Middle Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 41”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 41”h TSP49 Vertical Extrusion together, using Tool-less Spline Connector... - Page 6 © 2021 Order #XXXXX Left Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 45”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal 45”h TSP49 Vertical Extrusion extrusions [5-6], [7-8] together, using Tool-less Spline connectors...
- Page 7 © 2021 Order #XXXXX Right Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 45”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal 45”h TSP49 Vertical Extrusion extrusions [5-6], [7-8] together, using Tool-less Spline connectors...
- Page 8 © 2021 Order #XXXXX Backwall Frames Connection Steps: Base Plate Attachment 1) Connect vertical of Left Frame Assembly to P lace key hole over bolt on panel & slide down. Base Plate of Middle Frame Assembly. Twist knob to secure connection. Base Plate Attachment detail.
- Page 9 © 2021 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphics to assembled frames. Corner A Corner B When assembled Corner D Corner C Step 1 It is important to first insert Insert corner A. Turn edge of graphic into each alternate graphic so silicon welt is corner, then to the sides of...
-
Page 10: Top View
© 2021 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail.
