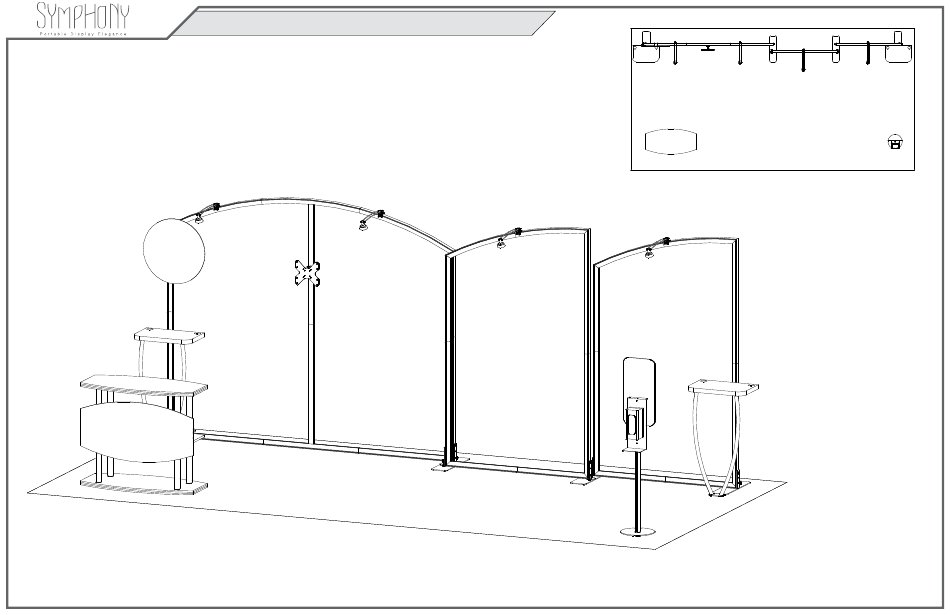

- Page 1 © 2024 Order #XXXXX SYK-2023 - 10’ x 20’ Portable Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2024 Order #XXXXX Plan View = 1 sq ft...
- Page 3 © 2024 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 4 © 2024 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2024 Order #XXXXX SEG Graphic Installation The Perfect Fit SEG Graphic Installation in 3 Steps STEP 1: Attach Corners STEP 2: Attach Middle STEP 3: Attach Sides Always insert graphic into each alternate corner, then into the sides of the frame.
- Page 6 © 2024 Order #XXXXX Case Packing Top View of Each Level 11 12 8 9 10 Graphics Header Graphic Setup Hardware Monitor Mount Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 5...
- Page 7 © 2024 Order #XXXXX Case Packing Top View of Each Level Counter Legs Lights Graphics Counter Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 2 of 5...
- Page 8 © 2024 Order #XXXXX Case Packing Top View of Each Level Counter Legs Graphics Counter Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 3 of 5...
- Page 9 © 2024 Order #XXXXX Case Packing Top View of Each Level Setup Hardware Graphic Counter Floor Shelf Legs Legs Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 4 of 5...
- Page 10 © 2024 Order #XXXXX Case Packing Top View of Each Level Bracket Post Setup Hardware Graphic Base Plate Level 1 Level 2 Level 3 (Bottom level) Case 5 of 5...
- Page 11 © 2024 Order #XXXXX Large Left Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 31.305”h TSP49 Vertical Extrusion together, using Tool-less Spline connectors...
- Page 12 © 2024 Order #XXXXX Small Middle Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal 45”h TSP49 Vertical Extrusion extrusions [5-6], [7-8] together, using Tool-less Spline connectors...
- Page 13 © 2024 Order #XXXXX Small Right Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8] 45”h TSP49 Vertical Extrusion together, using Tool-less Spline connectors...
- Page 14 © 2024 Order #XXXXX Backwall Frames Connection Item Qty. Description Steps: 6” x 22” Two-Connection Base Plate (Left) 1) Connect frame assemblies to Base Plates [14] & [15] 6” x 22” Two-Connection Base Plate (Right) as shown. See Base Plate Attachment detail.
- Page 15 © 2024 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphics to assembled frames. Insert narrow side of STEP 1: Attach Corners silicone welt into the channel at corner 1, with fabric to the outside. Repeat for opposite corner 2, then corner 3, Always insert graphic then corner 4.
- Page 16 © 2024 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail.
- Page 17 © 2024 Order #XXXXX Backwall Attachments (cont’d) Floating Graphic Attachment Affix graphic to Bracket using Velcro. Hook the Graphic Bracket Velcro onto the extrusion & snap Bracket into place. Velcro Graphic Bracket Graphic Snap into Hook Bracket place over Steps: When assembled vertical 1) Connect Floating Graphic to backwall using...
- Page 18 © 2024 Order #XXXXX Backwall Attachments (cont’d) Steps: 1) Attach large Monitor Mount to backwall vertical. Monitor Mount Attachment detail. Monitor Mount Attachment A ttach Monitor Mount back piece to vertical extrusion using bolts & nuts. Completed Assembly Wing nuts Bolts Monitor Mount Back piece...
- Page 19 © 2024 Order #XXXXX SYM-411 Counter Assembly Item Qty. Description Steps: 16.732”h aluminum Leg (lower) Note: Assemble counter upside-down. 16.732”h aluminum Leg (lower w/ Velcro) 16.732”h aluminum Leg (upper) 1) Attach upper legs to underside of Counter Top. Twist to tighten. 16.732”h aluminum Leg (upper w/Velcro) 2) Connect lower Legs through Counter Shelf to upper Legs, as shown.
- Page 20 © 2024 Order #XXXXX MOD-9009 Hand Sanitizer Stand Steps: 1) Attach Base Plate to bottom of post, using bolt. 2) Connect Bracket to post. See Bracket Attachment detail. 3) Affix Graphic to post using Velcro. Graphic Bracket Attachment Slide connectors into Connector groove of extrusion;...
