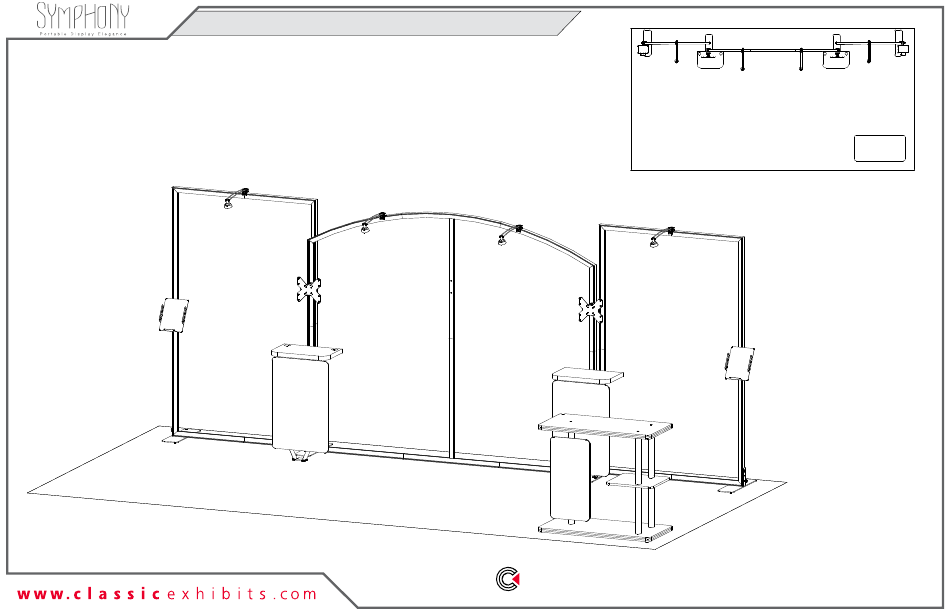

- Page 1 © 2023 Order #XXXXX SYK-2020 - 10’ x 20’ Portable Display 10’ 20’ Plan View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2023 Order #XXXXX Plan View = 1 sq ft... -
Page 3: General Setup Instructions
© 2023 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2023 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2023 Order #XXXXX Case Packing Top View of Each Level 11 12 Counter Counter Setup Hardware Legs Legs 8 9 10 Literature Trays Counter Workstation Graphics Graphics Counter Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Case 1 of 3...
- Page 6 © 2023 Order #XXXXX Case Packing Top View of Each Level Lights Graphics Monitor Mounts Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 2 of 3...
- Page 7 © 2023 Order #XXXXX Case Packing Top View of Each Level Upper Lower Middle Legs Legs Counter Counter Floor Setup Hardware Graphic Shelf Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 3 of 3...
-
Page 8: Front View
© 2023 Order #XXXXX Middle Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 31.305”h TSP49 Vertical Extrusion together, using Tool-less Spline connectors... - Page 9 © 2023 Order #XXXXX Left Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 45”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8] 45”h TSP49 Vertical Extrusion together, using Tool-less Spline connectors...
- Page 10 © 2023 Order #XXXXX Right Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 45”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8] 45”h TSP49 Vertical Extrusion together, using Tool-less Spline connectors...
- Page 11 © 2023 Order #XXXXX Backwall Frames Connection Steps: Base Plate Attachment 1) Connect vertical of Left Frame Assembly to P lace key hole over bolt on panel & slide down. Base Plate of Middle Frame Assembly. Twist knob to secure connection. Base Plate Attachment detail.
- Page 12 © 2023 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphics to assembled frames. Corner A Corner B When assembled Corner D Corner C Step 1 It is important to first insert Insert corner A. Turn edge of graphic into each alternate graphic so silicon welt is corner, then to the sides of...
-
Page 13: Top View
© 2023 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail. - Page 14 © 2023 Order #XXXXX Backwall Attachments (cont’d) Literature Tray Attachment Slide bracket over Tighten knobs of V4 connector Attach Literature Tray to V4 connector on to secure bracket in place. angled extrusion of bracket; vertical extrusion. tighten knob to secure lock. Bracket Slide Bracket...
- Page 15 © 2023 Order #XXXXX Backwall Attachments (cont’d) Steps: 1) Attach Monitor Mounts to backwall verticals as shown. Monitor Mount Bracket Attachment detail. Monitor Mount Attachment Hook the Mounting Bracket Slide bracket forward, then over the vertical extrusion. down onto V4 connector. V4 connectors stay permanently attached to vertical extrusion.
- Page 16 © 2023 Order #XXXXX SYM-404 Counter Assembly Item Qty. Description Steps: 17.25”h aluminum Leg (lower) Note: Assemble counter upside-down. 18.5”h aluminum Leg (upper) 36.5”h aluminum Leg (middle) 1) Attach upper legs to underside of Counter Top. Twist to tighten. 43”w x 21.5”d Counter Base 2) Connect lower Legs through Counter Shelf to upper Legs, as shown.
