- Page 1 TKD DN 10÷50 PVC-C DUAL BLOCK 3-way ball valve ®...

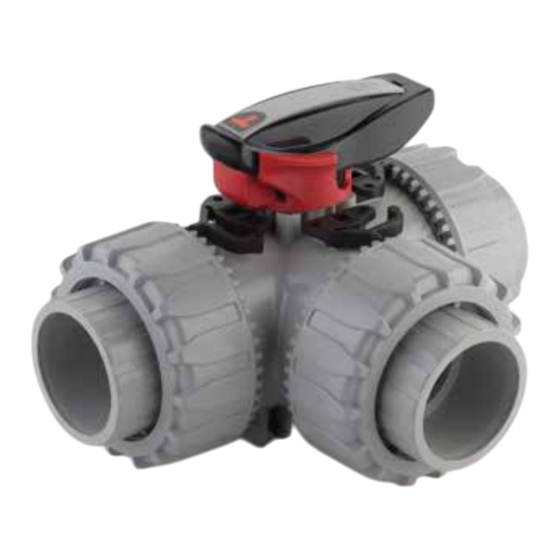

- Page 2 DN 10÷50 DUAL BLOCK 3-WAY BALL VALVE ® FIP has developed a TKD DUAL BLOCK ® ball valve to introduce a high reference standard in thermoplastic valve • Connection system for solvent weld, threaded and threaded joints design. TKD is a True Union diverting •...
- Page 3 Ergonomic HIPVC handle equipped ergonomically operable during floating type full passage with T or with removable tool to adjust service and padlockable L port the ball seat carrier. Possibility of installing the LTKD stroke limiter DUAL BLOCK patented lock 4 PTFE ball seat system ®...
- Page 4 TECHNICAL DATA PRESSURE VARIATION ACCORDING TO TEMPERATURE For water and harmless fluids to which the material is classified as CHEM- ICALLY RESISTANT. In other cases, a reduction of the nominal PN pressure is required (25 years with safety factor). PRESSURE DROP GRAPH AND WORK POSITIONS A - T-port ball valve: 0°- Mixing...
- Page 5 C - T-port ball valve: 180° - Branch closed/direct flow D - T-port ball valve: 270° - Diverting E - L-port ball valve: 0°/270° - Diverting...
- Page 6 The information in this leaflet is provided in good faith. No liability will be accepted concerning technical data that is not directly covered by recognised inter- national standards. FIP reserves the right to carry out any modification. Products must be installed and maintained by qualified personnel.
- Page 7 DIMENSIONS Dimensions shared by all versions 34,5 69,5 82,5 TKDIC DUAL BLOCK 3-way ball valve with metric plain socket ends for solvent welding, T bore ® EPDM code FKM code TKDIC016E TKDIC016F TKDIC020E TKDIC020F TKDIC025E TKDIC025F TKDIC032E TKDIC032F 188.5 136.5 1275 TKDIC040E TKDIC040F...
- Page 8 LKDIC DUAL BLOCK 3-way ball valve with metric plain socket ends for solvent welding, L bore. ® EPDM code FKM code LKDIC016E LKDIC016F LKDIC020E LKDIC020F LKDIC025E LKDIC025F LKDIC032E LKDIC032F 188.5 136.5 1275 LKDIC040E LKDIC040F 1660 LKDIC050E LKDIC050F 266.5 190.5 2800 LKDIC063E LKDIC063F TKDFC...
- Page 9 LKDFC Dual Block 3-way ball valve with BSP threaded female ends, L-port ball. ® EPDM code FKM code 1/2” 90,4 LKDFC012E LKDFC012F 3/4” 146,4 110,4 LKDFC034E LKDFC034F 1” 166,6 22,6 121,4 LKDFC100E LKDFC100F 1” 1/4 195,8 25,1 145,6 1275 LKDFC114E LKDFC114F 1”...
- Page 10 LKDAC DUAL BLOCK 3-way ball valve with female ends for solvent welding, ASTM series, L-port ball. ® EPDM code FKM code 1/2” 132,2 87.2 LKDAC012E LKDAC012F 3/4” 159,2 25.5 108.2 LKDAC034E LKDAC034F 1” 28.7 116.6 LKDAC100E LKDAC100F 1” 1/4 1275 LKDAC114E LKDAC114F 1”...
- Page 11 LKDNC DUAL BLOCK 3-way ball valve with female ends, NPT thread, L-port ball. ® EPDM code FKM code 1/2” 90.4 LKDNC012E LKDNC012F 3/4” 146.4 110.4 LKDNC034E LKDNC034F 1” 166.6 22.6 121.4 LKDNC100E LKDNC100F 1” 1/4 195.8 25.1 145.6 1275 LKDNC114E LKDNC114F 1”...
- Page 12 ACCESSORIES CVDE Long spigot PE100 end connectors for joints with electrofusion fittings or for butt welding Code CVDE11020 CVDE11025 CVDE11032 CVDE11040 CVDE11050 CVDE11063 SHKD Handle block kit 0° - 90° lockable Code 16 - 20 10 - 15 SHKD020 25 - 32 20 - 25 SHKD032 40 - 50...
- Page 13 LTKD The LTKD stroke limiter specifically permits handle and ball rotation only at set opening and closing angles. The LTKD090 version permits operations for 90° angles while the LTKD180 version for 180° angles. The LTKD stroke limiter is made up of a single removable plate made of technopolymer.
- Page 14 *F04 x 5.5 on request LS Quick Kit The Limit Switch Quick Kit allows the fast and secure installation of the FIP LSQT to the VKD valves. The body in in PP-GR and the handle in stainless steel AISI 316. The handle block at 0°...
- Page 15 All valves, whether manual or actuated, must be adequately supported in many applications. The TKD valve series is therefore ready to be equipped with threaded supporting brackets (optional) bracket that permits direct anchoring of the valve body without the need of other components.
- Page 16 COMPONENTS EXPLODED VIEW Handle insert (PVC-U - 1) Radial seal O-Ring (EPDM or FKM Spring - SHKD accessory - 3) (STAINLESS steel - 1)** Handle (HIPVC - 1) Socket seal O-Ring (EPDM or FKM Safety handle block - SHKD Stem O-ring (EPDM or FKM - 2)* - 3)* accessory (PP-GR - 1)** Stem (PVC-C - 1)
- Page 17 DISASSEMBLY Fig. 1 Isolate the valve from the line (release the pressure and empty the pipeline). 2) Unlock the union nuts by pressing the lever on the DUAL BLOCK® (26) along the axis and separate it from the union nut (fig. 1). It is also possible to completely remove the block device from the body of the valve.
- Page 18 7) Lock the union nuts by returning the DUAL BLOCK® to its housing, pressing on it until the hinges lock on the union nuts. 8) If necessary, support the pipework with FIP pipe clips or by means of the carrier Fig.6 built-into the valve itself (see paragraph “fastening and supporting”).
