UVC86 Installation
UVC86 Installation

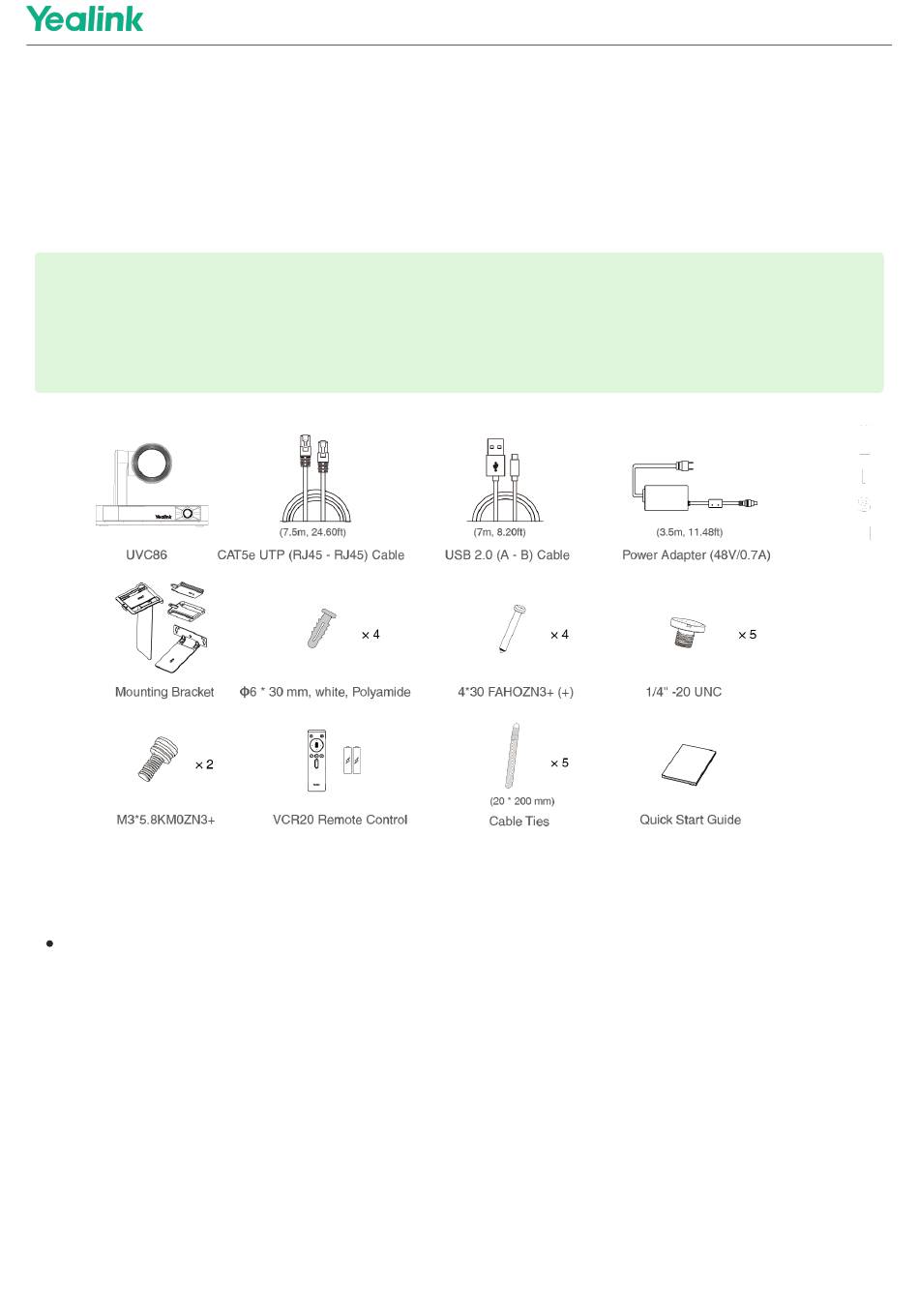

Package Contents
Package Contents
 TIP
TIP
For the UVC86 unboxing video, and please refer to UVC86.
We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-
party accessories may result in poor performance.
Install UVC86
Install UVC86
Put on a Flat Surface
Put on a Flat Surface
You can put the UVC86 on the conference table, and make sure that the angle of inclination of the UVC86 is not
more than 5 degrees to ensure proper operation.
1
UVC86 Installation

Advertisement

loading
Need help?

Need help?

Do you have a question about the UVC86 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yealink UVC86

  • Page 1 Put on a Flat Surface Put on a Flat Surface You can put the UVC86 on the conference table, and make sure that the angle of inclination of the UVC86 is not more than 5 degrees to ensure proper operation.
  • Page 2 UVC86 Installation Mount on top of a display Mount on top of a display Choose the following installation method when the thickness of the TV is between 0 mm and 70 mm. Choose the following installation method when the thickness of the TV is between 46 mm and 146 mm.
  • Page 3 UVC86 Installation...
  • Page 4 UVC86 Installation Mount on the Ceiling Mount on the Ceiling...
  • Page 5 UVC86 Installation Mount onto a TV Mount Mount onto a TV Mount Lens Calibration Lens Calibration...
  • Page 6 When you mount the UVC86 on the ceiling, you need to adjust the lens to the downward direction, as shown in the figure. When you put the UVC86 on the desk, you need to adjust the lens to the upward direction, as shown in the figure.
  • Page 7 Connect to a PC as video output. HDMI out Reserved port for future features. The UVC86 can be connected to a third-party audio playback device via a 3.5mm Line in audio cable, and the audio output from third-party audio device is used as an audio reference signal for the UVC86 voice tracking.
  • Page 8 Press and hold the Tracking Feature Tracking Feature key to select tracking mode (Auto Framing Feature Key and Off) - For UVC86: Press and hold the Tracking Feature Tracking Feature key to select tracking mode (Auto Framing, Speaker Tracking, Presentation Tracking and Off) •...
  • Page 9 » PoE switch: If you use PoE to connect cameras, you need to use PoE+. LED Indicator LED Indicator LED Status LED Status Description Description The UVC86 is powered off. Solid green The UVC86 is active. The UVC86 is in sleep mode. Solid red Flash red The UVC86 is in recovery mode.
  • Page 10 UVC86 Installation Flash orange The UVC86 is upgrading firmware.
