Summary of Contents for Yealink UVC80

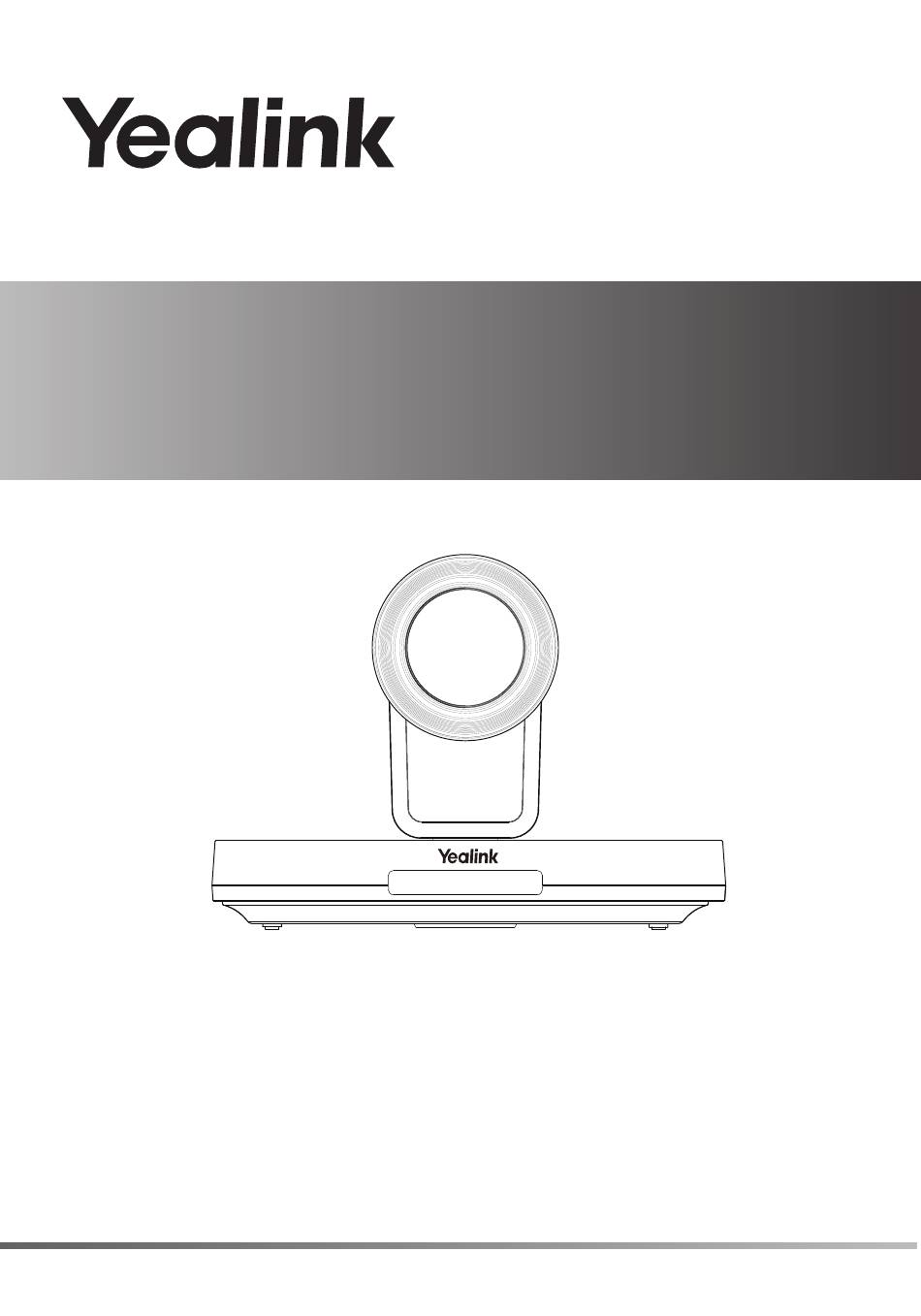

- Page 1 USB PTZ Camera UVC80 English | 简体中文 Quick Start Guide(V1.4) www.yealink.com...
-
Page 2: Package Contents
UVC80 Installation Put on a Flat Surface You can put the UVC80 on the conference table, and make sure that the angle of inclination of the UVC80 is not more than 5 degrees to ensure proper operation. Mount on top of a TV Choose the following installation method when the thickness of the TV is between 16mm and 55mm. - Page 3 100 mm. Pay attention to the direction of the bracket Velcro If your UVC80 cannot be mounted on the top of the TV Do not pick up the bracket which is connected when the bracket has reached the given location, with a UVC80, the UVC80 may fall down in you should choose another installation method.
- Page 4 Screw specification: M3×8 Mount on the Ceiling If you'd like to mount the UVC80 on the ceiling, you need to purchase a bracket separately. The bracket must meet the following requirements: Bear the weight of at least 10.5kg (23.15 lb.) and the thickness must be between 2mm (0.08 in.) and 3 mm (0.12 in.).
- Page 5 You need to purchase a TV stand or a tripod separately. The TV stand or tripod has the same requirements as the bracket used when mounting the UVC80 on the ceiling. The installation steps are the same as the steps of mounting on the ceiling.
- Page 6 USB(optional): insert DD10 to connect to CPW90 Reset: reset the UVC80 to factory defaults Video Out: connect to a PC as video output Security slot: connect a universal security cable to the UVC80 so that you can lock the UVC80 down. UVC80 Connection 3.5mm...
-
Page 7: Led Indicator Instructions
The cable should be replaced at once if its skin is broken. LED Indicator Instructions LED indicators on the UVC80: LED Status Description Solid green The UVC80 is active. Solid red The UVC80 is in sleep mode. Solid orange The UVC80 is initializing. Flashing orange The UVC80 is upgrading firmware. - Page 8 包装清单 (1/4”-20 UNC screw) 2.5m 电源适配器 VESA 配件 VCR20遥控器 UVC80 7.5m 网线 USB 线 48V/0.7A (M3×8 screw) 魔术贴x2 支架配件 UVC80 镜头隐私盖 束线带x 5 快速入门指南 （一套已贴在支架上） （用于安装主机） 我们推荐使用由Yealink提供或经Yealink认可的配件和线缆， 使用未经认可的第三方配件和线缆可能会导致性能 的下降。 安装UVC80 平放安装 将终端摆放在水平桌面。 如果桌面略有倾斜， 请保证倾斜角小于5°， 以保证终端的摄像机 云台正常运转。 挂装 当电视厚度范围为16-55mm时， 进行以下步骤： 注意支架的方向...
- Page 9 当电视厚度范围为50mm-100mm时， 进行以下步骤： 注意支架的方向 电视 请勿手持支架拿起终端， 有掉落风险。 当支架与底壳箭头位置齐平， 还不能放置在电视 顶上时， 请使用其他安装方式。 电视厚度超过100mm时， 请勿使用挂装方式， 机器有跌落风险。 墙装 你可以用支架将终端安装在墙上， 终端安装高度建议范围为1.55-1.85m。 螺丝规格：T4x30 打孔直径： 6mm 打孔深度： 30mm...
- Page 10 螺丝规格：M3x8 吊装 用户可以自行选购支架来将终端倒挂在天花板上，选购的支架必须满足以下条件： 承重至少为10.5kg，厚度建议为2mm-3mm。 支架配套一个定位柱，定位柱 用来插入VESA配件的定位孔中。 支架上的英制螺钉和定位柱的直线距离必须为14mm。 螺丝孔 深度： 6.0mm 定位孔 直径： 5.0mm...
- Page 11 螺丝规格： 螺丝规格：M3x8 1/4-20UNC英制螺钉 电视架或三脚架安装 用户可以自行选购电视架或三脚架来固定终端，电视架或三脚架的选购要求与使用吊装方式时 的支架要求相同。电视架或三脚架安装步骤与吊装步骤相同。 螺丝规格：M3x8 电视架 螺丝规格： 1/4-20UNC英制螺钉 安装束线带...
- Page 12 硬件接口介绍 1 3 2 麦克风： 连接VCM34 音频线性输出: 使用3.5mm音频接头线连接 音频输出设备 音频线性输入: 使用3.5mm音频接头线连接 电源接口: 连接电源适配器 音频输出设备 重置键： 重置设备到出厂设置 USB: 插入BT42配对连接CPW90-BT蓝牙麦 视频输出: 连接电脑作为视频输出 安全锁孔 : 将主机锁在固定位置 连接UVC80 CPW90-BT 中 文 UVC80 USB蓝牙设备BT42 3.5mm Sounbar 线 Cat5e网线 麦克风...
- Page 13 当连接VCM34阵列麦克风作为拾音设备时，最多可支持4个VCM34级联。 音频输入通道优先级顺序： 麦克风 （VCM34） >USB （CPW90-BT） >Line-in。 更多关于如何使用CPW90-BT蓝牙无线麦，请参阅 Yealink CPW90-BT Bluetooth Wireless Microphones Quick Start Guide(CN, EN)。 如果使用过程中发现线缆破皮， 请立即更换。 指示灯介绍 UVC80 指示灯介绍如下: 说明 指示灯状态 绿灯常亮 UVC80处于正常工作状态。 红灯常亮 UVC80处于休眠状态。 UVC80处于启动/等待中状态。 橙色灯常亮 UVC80固件更新中。 橙色灯闪烁...
- Page 15 We are not liable for problems with Cleaning Requirements Yealink device arising from the use of this product; we are not liable for Before cleaning the device, disconnect it from the power supply.
- Page 16 As one of the best providers in more than 140 countries and regions including the US, the UK and Australia, Yealink ranks No.1 in the global market share of SIP phones shipments.
