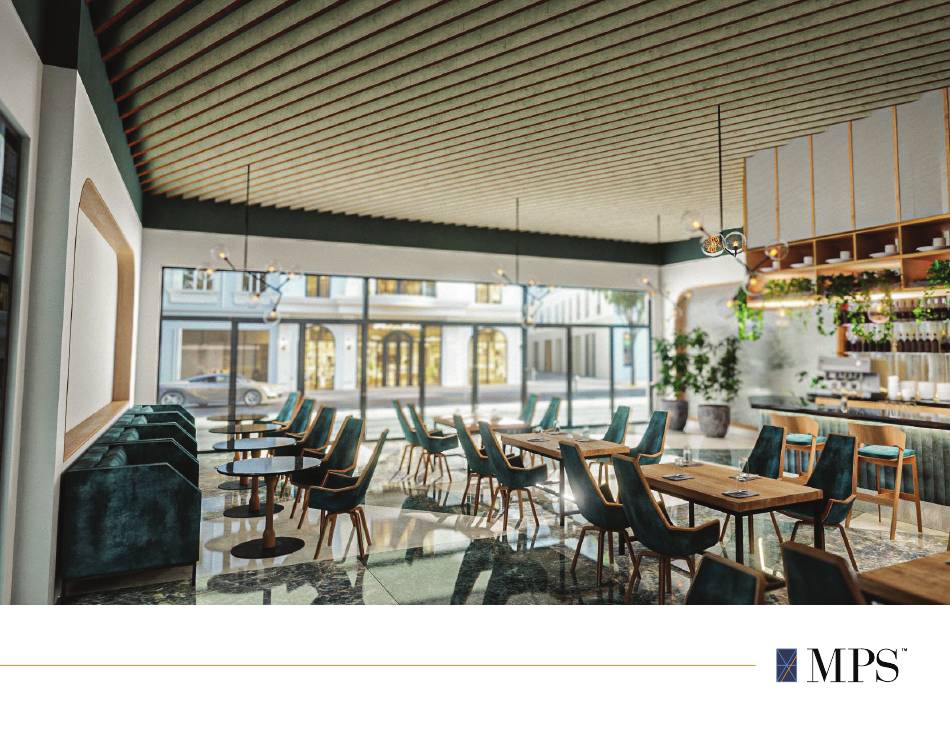

- Page 1 EDGE felt ceiling baffle...
- Page 2 Welcome to the installation guide for Edge, a minimal MOUNTING OPTIONS and versatile acoustic ceiling baffle designed for both Edge can be mounted using magnets, twist clips, or cable functionality and aesthetics. This guide will walk you grippers. Magnets and cable grippers are compatible with through the easy-to-follow steps to securely mount Edge 15/16"...
- Page 3 INSTALLING EDGE - CONTINUOUS BAFFLE CONNECTING BAFFLES U-SHAPE BRACKET Need Edge to span a larger space? Connect multiple baffl es with a u-shape bracket to make it look like one, long, continuous baffl e. In-line bracket, U-shape mpsacoustics.com | 866-557-8438...
- Page 4 INSTALLING EDGE MAGNETS DETAIL Compatible with 15/16” t-grids. MAGNET HARDWARE TO ATTACH BAFFLE TO 15/16” T-GRID T-GRID MAGNET WITH SCREW T-GRID 12” Starting mount 12” on either side. Choose any point on the baffl e for additional mounting locations. EDGE BAFFLE *This applies to all mounting options mpsacoustics.com | 866-557-8438...
- Page 5 INSTALLING EDGE TWIST CLIPS DETAIL Compatible with 9/16” and 15/16” t-grids. TWIST CLIP (9/16” or 15/16” T-GRID) HARDWARE TO ATTACH BAFFLE TO T-GRID Hand-tighten mounting AVAILABLE FOR MOUNTING screw to baffl e. 9/16” AND 15/16” SCREW T-GRIDS T-GRID 12” Starting mount 12” on either side.
- Page 6 INSTALLING EDGE CABLE GRIPPERS CABLE Note: Adjust cable length as desired to control final Edge baffle height. CHUCK CABLE GRIPPER GRIPPER TO CHUCK Attach cable gripper CABLE GRIPPER to chuck HANGER BOLT SCREW SCREW mpsacoustics.com | 866-557-8438...
- Page 7 INSTALLING EDGE DETAIL CABLE GRIPPER HARDWARE TO ATTACH BAFFLE TO CEILING CABLE AND GRIPPER 12” EDGE BAFFLE Starting mount 12” on either side. Choose any point on the baffl e for additional mounting locations. *This applies to all mounting options...
