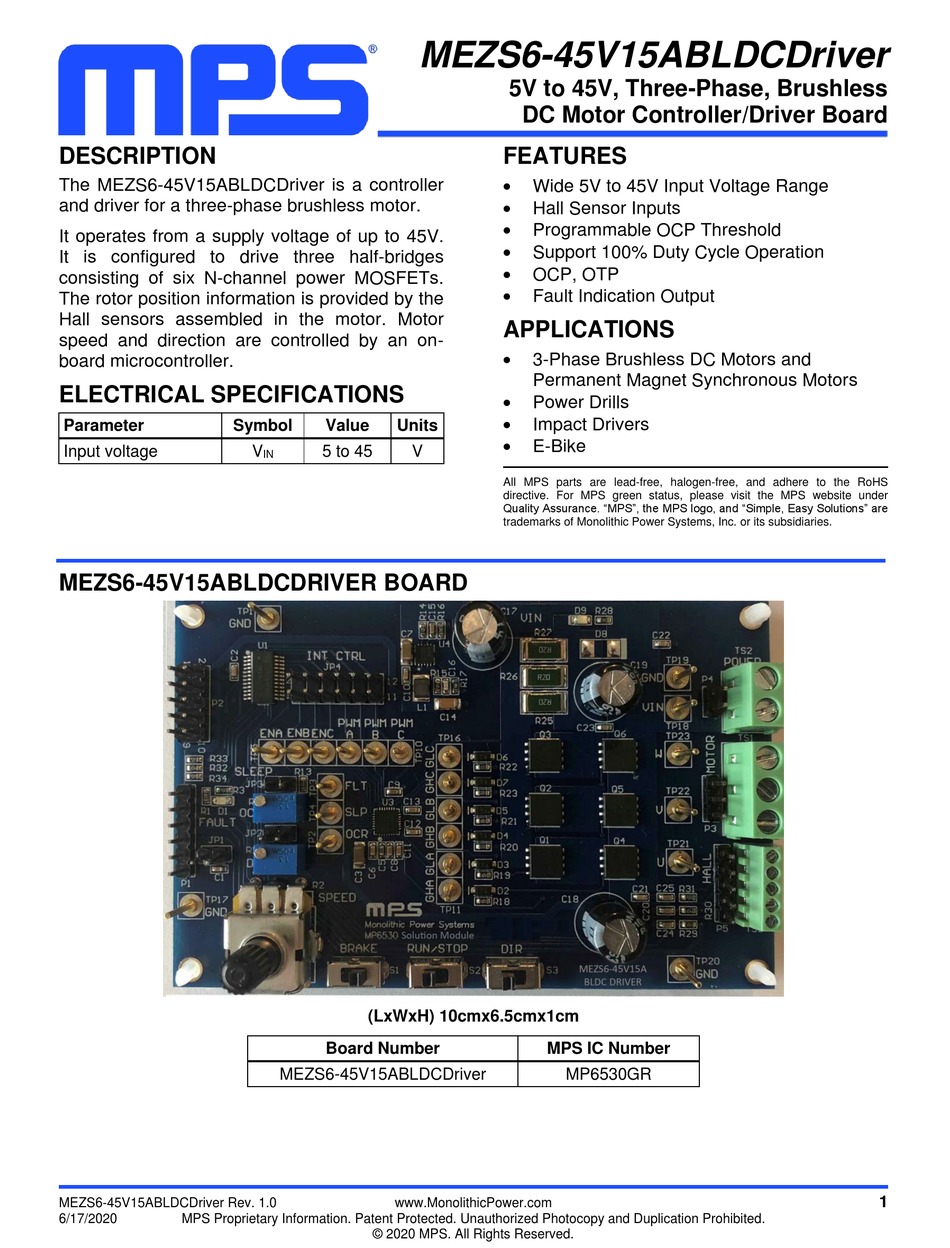

MPS MEZS6-5V15ABLDCDriver Manual

DESCRIPTION

The MEZS6-45V15ABLDCDriver is a controller
and driver for a three-phase brushless motor.
It operates from a supply voltage of up to 45V.
It is configured to drive three half-bridges
consisting of six N-channel power MOSFETs.
The rotor position information is provided by the
Hall sensors assembled in the motor. Motor
speed and direction are controlled by an on-
board microcontroller.

ELECTRICAL SPECIFICATIONS

Parameter Symbol
Input voltage
MEZS6-45V15ABLDCDRIVER BOARD
MEZS6-45V15ABLDCDriver Rev. 1.0
6/17/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
MEZS6-45V15ABLDCDriver
Value Units
V 5 to 45 V
IN
(LxWxH) 10cmx6.5cmx1cm
Board Number
MEZS6-45V15ABLDCDriver
www.MonolithicPower.com
© 2020 MPS. All Rights Reserved.
5V to 45V, Three-Phase, Brushless
DC Motor Controller/Driver Board

FEATURES


Wide 5V to 45V Input Voltage Range

Hall Sensor Inputs

Programmable OCP Threshold

Support 100% Duty Cycle Operation

OCP, OTP

Fault Indication Output

APPLICATIONS


3-Phase Brushless DC Motors and
Permanent Magnet Synchronous Motors

Power Drills

Impact Drivers

E-Bike
All MPS parts are lead-free, halogen-free, and adhere to the RoHS
directive. For MPS green status, please visit the MPS website under
Quality Assurance. "MPS", the MPS logo, and "Simple, Easy Solutions" are
trademarks of Monolithic Power Systems, Inc. or its subsidiaries.
MPS IC Number
MP6530GR
