The Future of Analog IC Technology
DESCRIPTION
The EV8640DL-00A evaluation board is a fully
assembled and tested PCB that demonstrates the
performance of MP8640, a monolithic step-down
regulator.
The EVB generates a 3.3V output voltage at load
current up to 3A from a 4.5V to 23V input voltage
range, with excellent load and line regulation.
Current mode operation provides fast transient
response and eases loop stabilization.
Fault condition protection includes cycle-by-cycle
current limiting and thermal shutdown.
This device requires a minimum number of
readily available standard external components
and is available in a space saving 3mm x 4mm
14-pin QFN package.
ELECTRICAL SPECIFICATIONS
Parameter
Symbol
Input Voltage
Output Voltage
Output Current

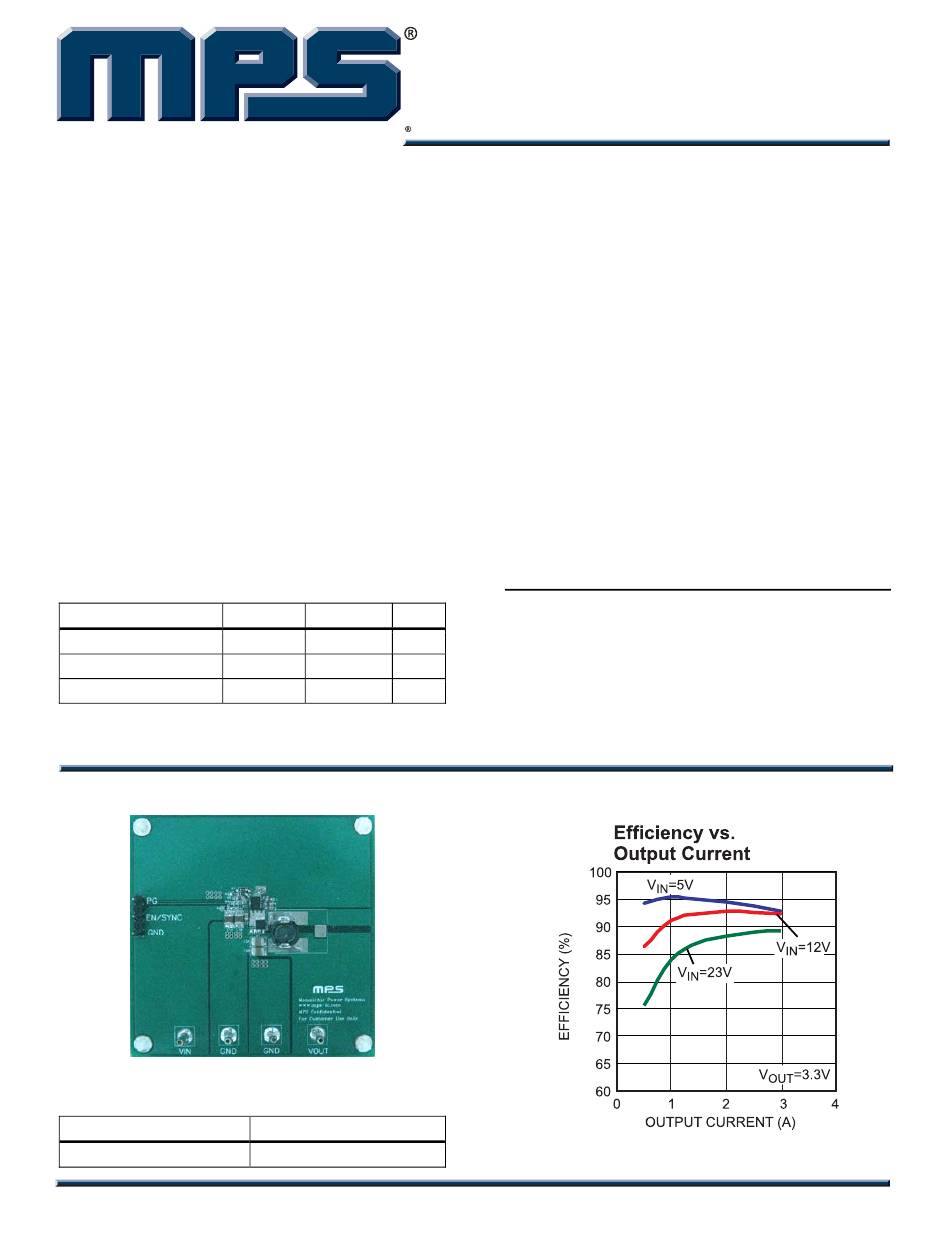

EV8640DL-00A EVALUATION BOARD
(L x W x H) 2.9" x 2.9" x 0.5"
(7.5cm x 7.5cm x 1.2cm)
Board Number
EV8640DL-00A
EV8640DL-00A Rev. 1.0
10/19/2007
MPS Proprietary Information. Unauthorized Photocopy and Duplication Prohibited.
Value
Units
V
4.5 – 23
V
IN
V
3.3
V
OUT
I
3
A
OUT
MPS IC Number
MP8640DL
www.MonolithicPower.com
© 2007 MPS. All Rights Reserved.
EV8640DL-00A
3A, 23V, 600KHz Step-Down Converter
with Sync Gate Driver EV Board
FEATURES
•
3A Continuous Output Current
•
Wide 4.5V to 23V Operating Input Range
•
Fixed 600KHz Frequency
•
Synchronizable to >1MHz External Clock
•
3.3V Rating Output Voltage
•
Output Adjustable from 0.8V to 15V
•
Stable with Low ESR Output Ceramic
Capacitors
•
Fully Assembled and Tested
APPLICATIONS
•
Point of Load Regulator in Distributed
Power System
•
Digital Set Top Boxes
•
Personal Video Recorders
•
Broadband Communications
•
Flat Panel Television and Monitors
"MPS" and "The Future of Analog IC Technology" are Registered Trademarks of
Monolithic Power Systems, Inc.
1
Advertisement
Table of Contents
Related Manuals for MPS EV8640DL-00A
Summary of Contents for MPS EV8640DL-00A
- Page 1 3mm x 4mm • Broadband Communications 14-pin QFN package. • Flat Panel Television and Monitors ELECTRICAL SPECIFICATIONS “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. Parameter Symbol Value Units Input Voltage 4.5 –...
- Page 2 EV8640DL-00A – 3A, 23V, 600KHz STEP-DOWN WITH SYNCH GATE DRIVER EV BOARD EVALUATION BOARD SCHEMATIC 4,5,6 8,9,10 MP8640DL 5,6,7,8 EN/SYNC 1,2,3 EV8640DL-00A BILL OF MATERIALS Value Description Package Manufacturer Manufacturer P/N 31.6kΩ Film Res., 1% 0603 Yageo RC0603FR-0731K6L 10kΩ Film Res., 1%...
- Page 3 EV8640DL-00A – 3A, 23V, 600KHz STEP-DOWN WITH SYNCH GATE DRIVER EV BOARD PRINTED CIRCUIT BOARD LAYOUT Figure 1—Top Silk Layer Figure 2—Top Layer Figure 3—Inner Layer 1 Figure 4—Inner Layer 2 Figure 5—Bottom Layer Figure 6—Bottom Silk Layer EV8640DL-00A Rev. 1.0 www.MonolithicPower.com...
- Page 4 NOTICE: The information in this document is subject to change without notice. Users should warrant and guarantee that third party Intellectual Property rights are not infringed upon when integrating MPS products into any application. MPS will not assume any legal responsibility for any said applications.
