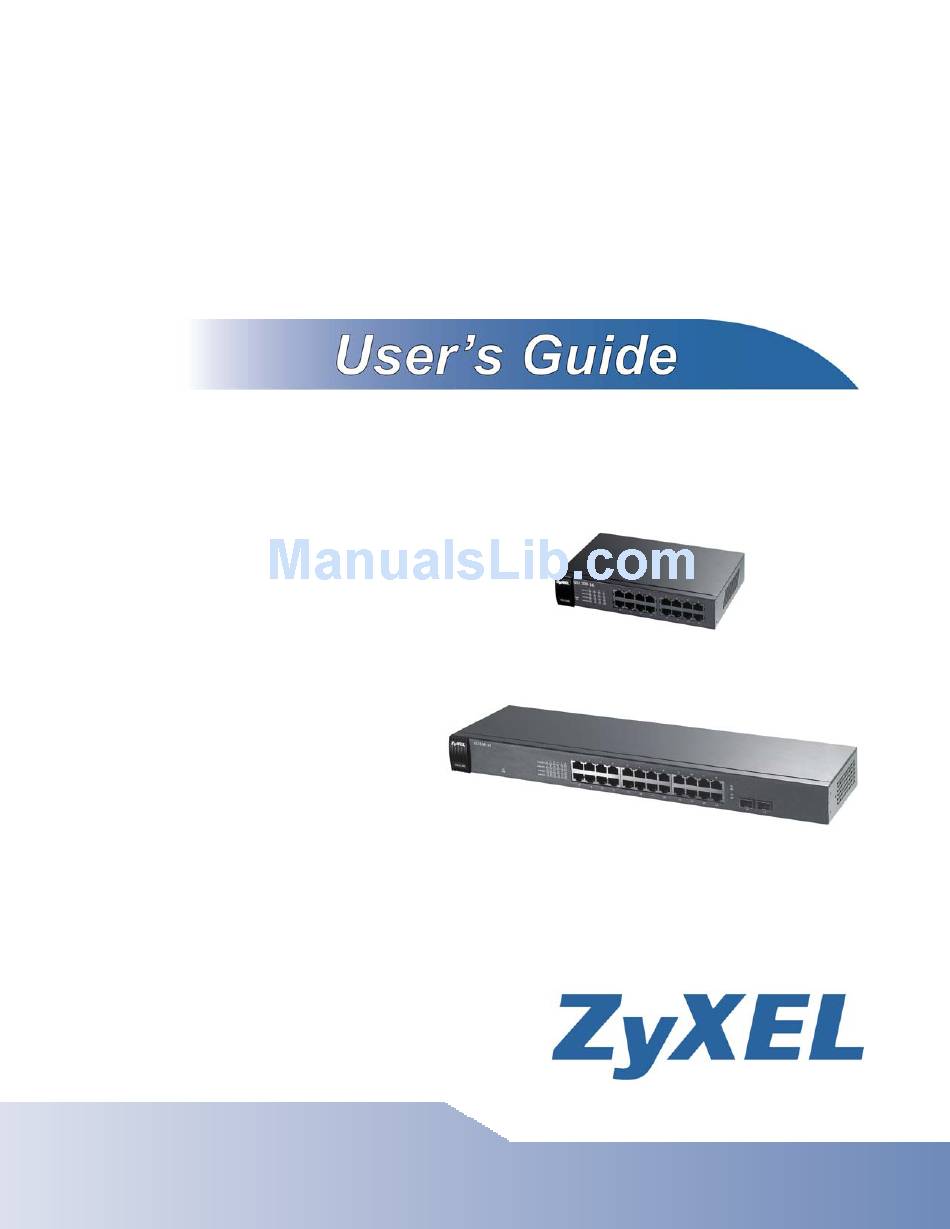

GS1100-16/GS1100-24
16-port /24-port Unmanaged Gigabit Ethernet Switch
Edition 1, 6/2010
www.zyxel.com
Copyright © 2010
ZyXEL Communications Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS-110024 and is the answer not in the manual?

Questions and answers

Related Manuals for ZyXEL Communications GS-110024

Summary of Contents for ZyXEL Communications GS-110024

  • Page 1 GS1100-16/GS1100-24 16-port /24-port Unmanaged Gigabit Ethernet Switch Edition 1, 6/2010 www.zyxel.com Copyright © 2010 ZyXEL Communications Corporation...
  • Page 3 • Knowledge Base If you have a specific question about your product, the answer may be here. This is a collection of answers to previously asked questions about ZyXEL products. • Forum This contains discussions on ZyXEL products. Learn from others who use ZyXEL products and share your experiences as well.
  • Page 4 Should problems arise that cannot be solved by the methods listed above, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device. See http://www.zyxel.com/web/contact_us.php for contact information. Please have the following information ready when you contact an office.

  • Page 5: Document Conventions

    Document Conventions Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations.

  • Page 6: Safety Warnings

    Safety Warnings Safety Warnings • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. •...

  • Page 7: Table Of Contents

    Table of Contents Table of Contents Table of Contents ........................7 Chapter 1 Getting to Know Your Switch ....................9 1.1 Introduction ..........................9 1.2 Features ..........................9 1.3 Applications ......................... 10 1.3.1 Standalone Workgroup ....................10 1.3.2 Bridging ........................11 Chapter 2 Hardware Description and Connection.................
  • Page 8 Table of Contents GS1100 Series User’s Guide...

  • Page 9: Getting To Know Your Switch

    H A P T E R Getting to Know Your Switch 1.1 Introduction This chapter describes the key features, benefits and applications of your Switch. The Switch is a 10/100/1000 Mbps multi-port switch that can be used to build high-performance switched workgroup networks. The Switch is a store-and- forward device that offers low latency for high-speed networking.

  • Page 10: Applications

    Chapter 1 Getting to Know Your Switch • Auto-negotiating 10/100/1000 Mbps Ethernet RJ-45 ports. • Auto-sensing crossover for all 10/100/1000 Mbps Ethernet RJ-45 ports. • Supports N-Way protocol for speed (10/100/1000 Mbps) and duplex mode (Half/Full) auto-detection. • Supports store-and-forward switching. •...

  • Page 11: Bridging

    Chapter 1 Getting to Know Your Switch 1.3.2 Bridging With its large address table and high performance, the Switch is an ideal solution for department networks to connect to the corporate backbone or for connecting network segments. The following figure depicts a typical segment bridge application of the Switch in an enterprise environment.
  • Page 12 Chapter 1 Getting to Know Your Switch GS1100 Series User’s Guide...

  • Page 13: Hardware Description And Connection

    H A P T E R Hardware Description and Connection 2.1 Rear Panel The three-pronged power receptacle is located on the rear panel of the Switch. Refer to the Product Specifications on page 25 for power specification. Figure 4 Rear Panel GS1100-16 GS1100-24 2.1.1 Rear Panel Power Connection...

  • Page 14: Auto-Negotiating Ports

    Chapter 2 Hardware Description and Connection 2.2.1 RJ-45 Auto-negotiating Ports The 10 Base-T/100 Base-TX/1000 Base-T RJ-45 ports are auto-negotiating and auto-crossover. An auto-negotiating port can detect and adjust to the optimum Ethernet speed (10/100/1000 Mpbs) and duplex mode (full duplex or half duplex) of the connected device.

  • Page 15: Transceiver Removal

    Chapter 2 Hardware Description and Connection Connect the fiber optic cables to the transceiver. Figure 5 Transceiver Installation Example Figure 6 Connecting the Fiber Optic Cables 2.2.2.2 Transceiver Removal Use the following steps to remove a mini-GBIC transceiver (SFP module). Remove the fiber optic cables from the transceiver.

  • Page 16: Front Panel Connections

    Chapter 2 Hardware Description and Connection 2.2.3 Front Panel Connections You can use unshielded twisted pair (UTP) or shielded twisted-pair (STP) Ethernet cables for RJ-45 ports. The following table describes the types of network cable used for the different connection speeds. . Table 1 Network Cable Types SPEED NETWORK CABLE TYPE...

  • Page 17: Hardware Installation

    Chapter 2 Hardware Description and Connection The following table describes the LEDs. Table 2 The Front Panel LED Descriptions COLO STATUS DESCRIPTION Switch Green is on and receiving power. Switch is not receiving power. LINK/ Green The port is connected to an Ethernet network. Blinking The port is receiving or transmitting data.

  • Page 18: Rack Mounting

    Chapter 2 Hardware Description and Connection Align the holes on the back of the Switch with the screws on the wall. Hang the Switch on the screws. The Switch should be wall-mounted horizontally. The Switch's side panels with ventilation slots should not be facing up or down as this position is less safe.
  • Page 19 Chapter 2 Hardware Description and Connection Attaching the Mounting Brackets to the Switch Position a mounting bracket on one side of the Switch, lining up the four screw holes on the bracket with the screw holes on the side of the Switch. Figure 11 Attaching the Mounting Brackets (GS1100-16) Figure 12 Attaching the Mounting Brackets (GS1100-24) Using a #2 Philips screwdriver, install the M3 flat head screws through the...

  • Page 20: Mounting The Switch On A Rack

    Chapter 2 Hardware Description and Connection 2.3.3 Mounting the Switch on a Rack Position a mounting bracket (that is already attached to the Switch) on one side of the rack, lining up the two screw holes on the bracket with the screw holes on the side of the rack.
  • Page 21 Chapter 2 Hardware Description and Connection Figure 14 Mounting the Switch on a Rack (GS1100-24) Using a #2 Philips screwdriver, install the M5 flat head screws through the mounting bracket holes into the rack. Repeat steps to attach the second mounting bracket on the other side of the rack.
  • Page 22 Chapter 2 Hardware Description and Connection GS1100 Series User’s Guide...

  • Page 23: Chapter 3 Troubleshooting

    H A P T E R Troubleshooting This section describes common problems you may encounter with the Switch and possible solutions. Troubleshoot the Switch using the LEDs to detect problems. The PWR LED on the front panel does not light up. •...

  • Page 24: Improper Network Cabling And Topology

    Chapter 3 Troubleshooting 3.1 Improper Network Cabling and Topology Improper network cabling or topology setup is a common cause of poor network performance or even network failure. Figure 15 Troubleshooting Improper Network Cabling and Topology PROBLEM CORRECTIVE ACTION Faulty cables Using faulty network cables may affect data rates and have an impact on your network performance.

  • Page 25: Product Specifications

    H A P T E R Product Specifications These are the product specifications. Table 3 Product Specifications Dimension GS1100-16: 215 mm (W) x 133 mm (D) x 42 mm (H) GS1100-24: 441 mm (W) x 131 mm (D) x 44 mm (H) Weight GS1100-16: 1 kg GS1100-24: 2 kg...

  • Page 26: Chapter 4 Product Specifications

    Chapter 4 Product Specifications Table 3 Product Specifications Jumbo Frame 9K bytes Operating 0 ~ 50 Temperature Storage -40 ~ 70 Temperature Operating 10 % - 95 % (non-condensing) Humidity Power Supply Power rating: 100-240 V ~50/60 Hz 0.5 A Max Power consumption: GS1100-16: 6.4 W GS1100-24: 16.2 W...

  • Page 27: Appendix A Legal Information

    Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice.

  • Page 28: Zyxel Limited Warranty

    Viewing Certifications Go to http://www.zyxel.com. Select your product on the ZyXEL home page to go to that product's page. Select the certification you wish to view from this page. ZyXEL Limited Warranty...
  • Page 29 Appendix A Legal Information purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser. To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http:// www.zyxel.com/web/support_warranty_info.php.
  • Page 30 Appendix A Legal Information GS1100 Series User’s Guide...
  • Page 31 Index Index Numerics 10/100/1000 Mbps installation precautions transceivers Applications Segment Bridge LED Descriptions auto-negotiating ports LK/ACT Cabling Length certifications mounting brackets notices viewing copyright network cable crossover straight-through Data path loop Network Cable Types disclaimer Non-standard network cables product registration Product specification Faulty cables FCC interference statement...
  • Page 32 Index registration product safety warnings Small Form-factor Pluggable (SFP) Standalone Workgroup syntax conventions transceiver MultiSource Agreement (MSA) transceivers installation removal Troubleshooting Improper Network Cabling and Topology wall mounting warranty note GS1100 Series User’s Guide...
