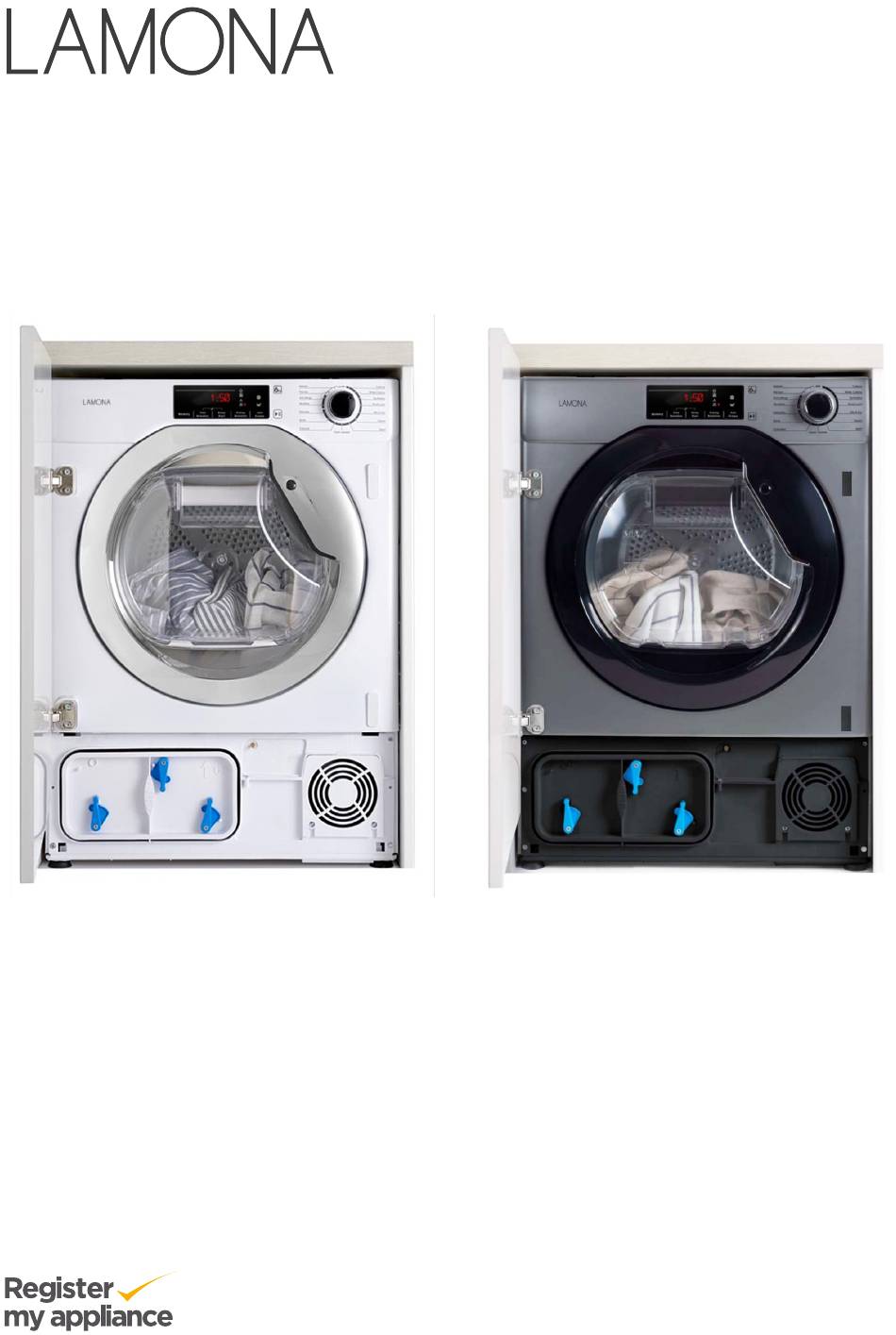

Built-In Condenser Tumble Dryer
LAM8880 / 1
l Please also read the Installation Manual to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation, keep packaging material away from children.
User Instructions
ISSUE v1.1 160724
www.howdens.com/appliance-registration
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lamona LAM8880
Summary of Contents for Lamona LAM8880
- Page 1 Built-In Condenser Tumble Dryer LAM8880 / 1 l Please also read the Installation Manual to ensure safe fitting and use of the appliance. l The appliance should be fitted by a suitably competent and qualified person. l Please keep these instructions in a safe place for future reference.
- Page 3 Welcome Dear Customer, Congratulations on your choice of energy efficient tumble dryer. • This tumble dryer complies with all current local and national safety requirements; however, inappropriate use could lead to personal injury and damage to property. • Please read these user instructions carefully before using the tumble dryer. It contains important information on safety, use and maintenance.
- Page 4 Cleaning the fluff filter ............p.21 Cautions when using the dryer ........p.7 Cleaning the condenser filters (every 3 cycles) ..p.21 LAM8880 / 1 Condenser Tumble Dryer ....p.8 Trouble Shooting ..........p.22 Tumble dryer overview ............p.8 Things you could remedy yourself ........p.22 Control panel ................p.8...
- Page 5 Faulty components must only be replaced by genuine consequences of incorrect operation. original LAMONA spare parts. Only when these parts are fitted can LAMONA guarantee the safety • Children must not be allowed to clean or maintain the standards of the machine.
- Page 6 LAMONA cannot be held responsible If the electrical connection cable is faulty it must only for any damage resulting from other treatments. be replaced by a LAMONA Service Engineer to • Always remove plug before cleaning the tumble dryer.
- Page 7 If there is a problem you cannot solve by reading these instructions; switch off and unplug the machine and call the Authorised Service Agent. LAMONA cannot be held liable for damage caused by non-compliance with these warning and safety instructions. Exclusive to Howdens...

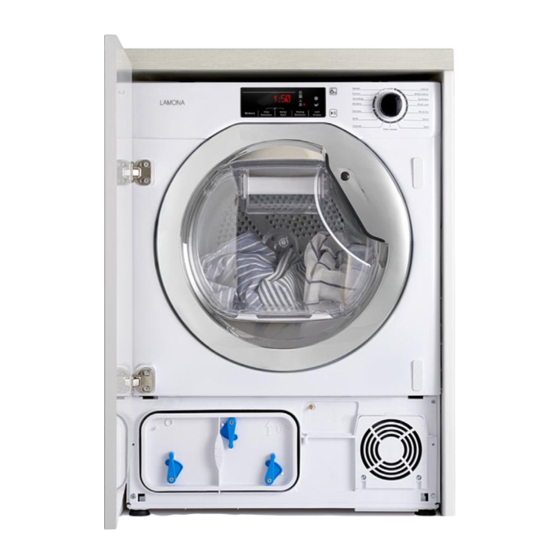

- Page 8 LAM8880 / 1 / Heat Pump Condenser Tumble Dryer Tumble dryer overview Programme Control Selector Dial Panel Door Handle Drum Fluff Filter The programme selector dial with OFF position can Condenser Adjustable be rotated in either direction. It allows selection of the...
- Page 9 Delay Start Button. • Allows delaying programme start from 30 minutes to 24 hours in 30 minute intervals (1 hour on some models). The delay selected is shown on the display. • After pressing ; the time shown begins to count down towards the programme start. If you open the door with the delayed start set;...
- Page 10 In this case, remove the plug and repeat the operation. Remove drum protectors and discard LAMONA cannot be held responsible for any incorrect installation of the appliance. The Installation manual must be followed. Switching on and setting the language Once a programme is selected, the dryer turns on.
- Page 11 Environmentally friendly drying. • Only put laundry into the dryer that has been thoroughly wrung / spin-dried. The drier the laundry; the shorter the drying time - saving electricity! • Always check that both filters are clean before every drying cycle. •...
- Page 12 Sorting the laundry Sort by care symbols Using the care symbols found on the collar or inside each garment; identify items that cannot be tumble dried and sort the remaining laundry according to recommended tumble drying programmes. Suitable for tumble drying If a care symbol cannot be Tumble drying at high temperature found, assume that it is not...
- Page 13 Loading the tumble dryer Open the door Reach behind the door grip and pull the door open. Load the drum Note the maximum load for each drying programme. See page 15. • Check the drum for pets and foreign objects before loading with laundry.
- Page 14 Selecting programmes & setting function Quick Start: Do not open the door during the drying cycle, this will extend drying time. Turn the programme selector dial to select the required drying programme (See Programme Guide, page 15). Programme name Drying time Programme options status (guide only) Scrolling display...
- Page 15 Automatic programmes drying guide (approximate time and energy consumption) Programme Load Default Time Description Capacity Displayed Note load capacity Programme Eco - normal hang dry drying. This is the most Cottons Full energy efficient programme which is also suitable for linens. White Cottons Full Best cycle to dry cottons, bathrobes and towels.
- Page 16 Delay Start This function allows you to delay the programme start (from 30 minutes up to 24 hours in 30 minute intervals). Select a compatible drying programme. Press to set the delay time. Press to start. If the door is opened during countdown, close the door and press to resume.
- Page 17 Time Selection ‘To set a defined finish time’ (Do not open door during cycle) Allows you to switch to a manually set drying time for the selected programme, (Ideal for memory selection). Select a compatible programme. eg. white cottons. Press to select drying time in 10 minute increments. We recommend 2:00 to 2:30 hours. A low tone indicates that the function is incompatible with the selected programme.
- Page 18 Child Lock • This function blocks unwanted changes to options already set during the drying phase. • Child lock can be toggled ( locked / unlocked) at any time during the cycle. To activate Child Lock Press Time Selection and Delay Start simultaneously for 2 seconds. Any set options are locked. Press to start.
- Page 19 Programmes and options compatibility S e l e c t a b l e O p t i o n s Programmes Delay Start Drying Time Selection Anti Crease Memory • • • Cottons White Cottons Synthetics • • • Small Load •...
- Page 20 Care and maintenance Ensure the dryer is correctly ventilated Do not use this machine if it appears to be faulty. • Check regularly that airflow through the dryer is not restricted. • Prevent items falling and collecting behind the dryer. This may Plinth obstruct the air inlet and outlet.
- Page 21 Cleaning the filters - Important! Never use the appliance without the filters fitted. If garments are not drying, please check that... • the filters are clean; • the condenser filter cartridge is the correct way up. Cleaning the fluff filter Fluff Filter Clean after each cycle.
- Page 22 What might be the cause of...? Before calling for advice please use this use this checklist. If the problem persists after completing these checks, please call the LAMONA Service Line. Things you can remedy yourself The filter care light is on Clean the fluff and condenser filters.
- Page 23 See page 25. The environmentally friendly, recyclable • packaging is designed to protect the appliance For service and repairs, call the LAMONA Service Line. from damage during transportation. All packaging • Always use genuine spares, available direct from materials should be recycled. Recycling reduces the www.lamonaspares.co.uk..
- Page 24 Min. Product Fiché | Specification Integrated Heat Pump Tumble Dryer Description Lamona Brand CE, LVD, EMC, RoHS Approvals & Certification LAM8880 / 1 Model No. Turkiye Country of Origin 220-240v 50 Hz Supply Voltage 3 Core Cable Length | Type...
- Page 25 Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within UK 0344 460 0006 Within Republic of Ireland 01525 5703 * Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance.
- Page 26 www.howdens.com...
- Page 27 Exclusive to Howdens...
- Page 28 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in July 2024. The company has a policy of continuous product development and Howden Joinery Ltd.
Need help?
Do you have a question about the LAM8880 and is the answer not in the manual?
Questions and answers
how long should it take to dry washing
The drying time for the Lamona LAM8880 depends on several factors, including:
- Drying level selected
- Initial water saturation
- Size and type of load
- Spin speed
- Fabric type
- Ambient temperature
- Cleanliness of filters
A recommended manual drying time is between 2:00 to 2:30 hours. However, actual drying time is determined during the cycle and may vary.
