At the heart of the kitchen

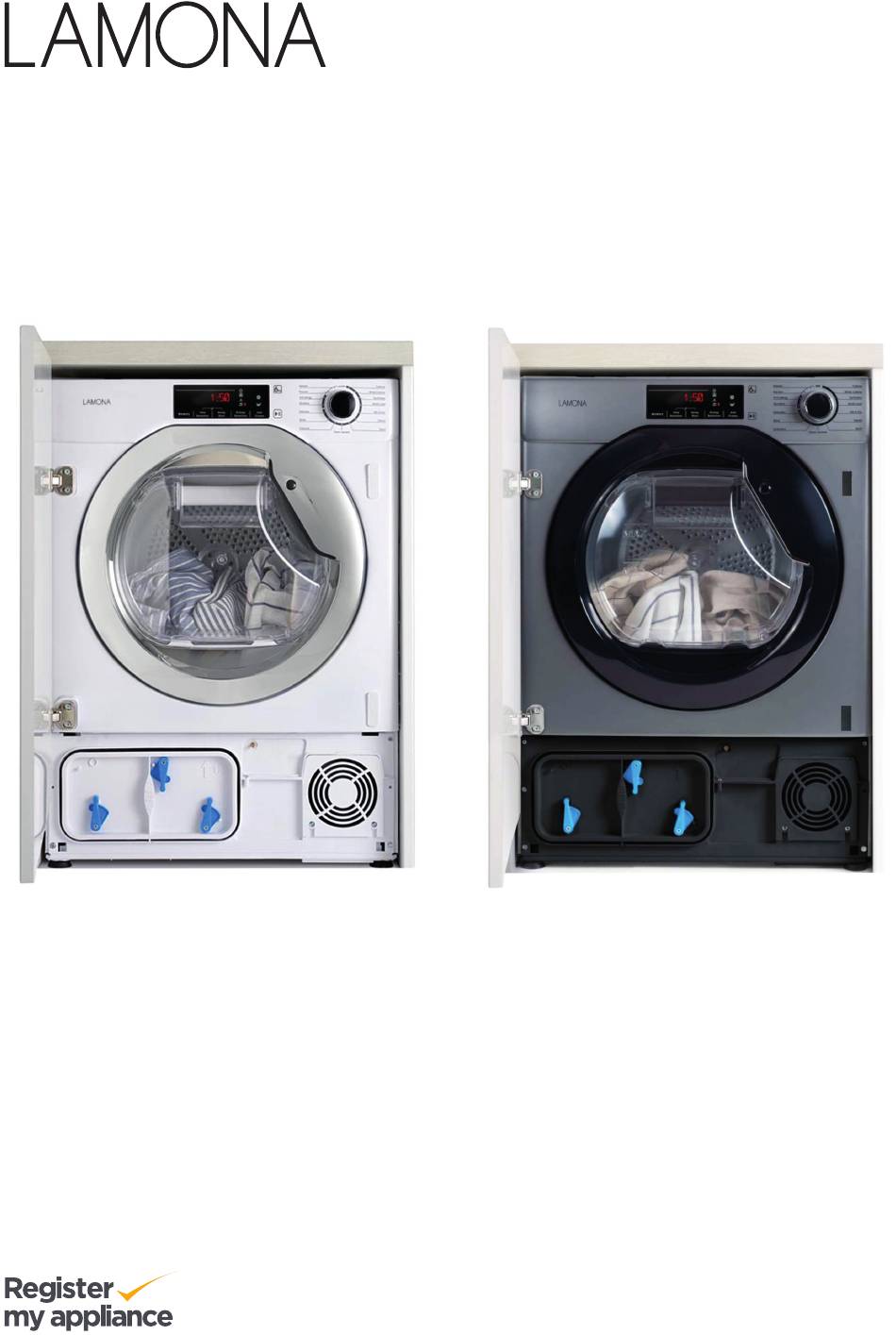

Built-In Condenser Tumble Dryer
LAM8877 / 8 / 9
l Please read the Installation Manual to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation. Keep packaging material away from children.
Installation Instructions
ISSUE v1.0 091122
www.howdens.com/appliance-registration
Advertisement
Table of Contents
Related Manuals for Lamona LAM8877
Summary of Contents for Lamona LAM8877
- Page 1 At the heart of the kitchen Built-In Condenser Tumble Dryer LAM8877 / 8 / 9 l Please read the Installation Manual to ensure safe fitting and use of the appliance. l The appliance should be fitted by a suitably competent and qualified person.
-
Page 3: Warning And Safety Information
Warning & Safety Information Be aware of the instability Dryer must be securely Beware of sharp metal 2 Person lift Ensure packaging of the appliance prior to located and be level edges. Use gloves when handling & transit protectors being fitted into position have been removed before positioning. - Page 4 Socket outlet and plug must be of the same type. If in any doubt, please have the wiring system of the building tested by a qualified electrician. LAMONA cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
-
Page 5: Table Of Contents
Caring for the environment Disposal of the packing material The environmentally friendly, recyclable packaging is designed to protect the appliance from damage during transportation. All packaging materials should be recycled. Recycling reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Installation overview guide Installation considerations .......p.6 Safe operating temperatures. -
Page 6: Installation Considerations
Installation Considerations Safe operating temperatures This appliance is designed to work at temperatures between 15 - 35°C. DO NOT install in rooms with low temperatures or risk of frost occurring. A minimum ambient temperature of 15°C is recommended to avoid external condensation. Reliability of the electronic control unit may be impaired at temperatures below freezing point. -
Page 7: Dimensions And Minimum Clearances
Dimensions and minimum clearances Ensure the plug is accessible after installation Check that the appliance door and fixed door furniture are clear of any obstructions It is recommended not to install the appliance between decor end panels unless it is placed at the end of a run, where the niche size can be increased... -
Page 8: Mounting The Door Furniture
Mounting the door furniture Measure, mark and drill the hinge positions. 21.5 mm Magnet 35mm 45 mm 12mm +/- 1mm Confirm dimensions with 597 mm the décor door range. Screw fix the hinges, to the décor door. Attach the plastic support and metal plates. -
Page 9: Fix The Decor Door To The Dryer
Fix the décor door to the dryer. Fix the décor door to the dryer. Use the correct spacers, SX = Left. DX = Right. Do not use impact driver power tools. Screw Spacer (SX) x2 Phillips screws are hard to drive, we recommended using a hex headed bit to avoid screwhead damage. -
Page 10: Profile Kitchen
Profile Kitchen Fix 18mm plate below worktop which finishes flush with the bottom edge of the profile. Fix 18mm plate below the worktop. Fit flush with the bottom edge of the profile. Profile Plate We recommend sealing all cut surfaces and ends. Plinth Preparation WARNING: A ventilation grille is required for the correct operation of the appliance. -
Page 11: Ventilation Grille - Easy Removable Plinth Kit
Ventilation grille - Easy Removable Plinth Kit Cut out and edge a section of plinth at the front of the appliance. Cut out a section to suit the vent grille being used. Screw fix 4 magnets to (Ensure there is enough space left for the back of the plinth. -
Page 12: Final Alignments
Final alignments Adjust the following for final alignment if necessary. Hinges Feet www.howdens.com... - Page 13 Notes Exclusive to Howdens...
- Page 14 Notes www.howdens.com...
- Page 15 Notes Exclusive to Howdens...
- Page 16 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in April 2021. The company has a policy of continuous product development and Howden Joinery Ltd.
