Summary of Contents for Lamona FLM8801

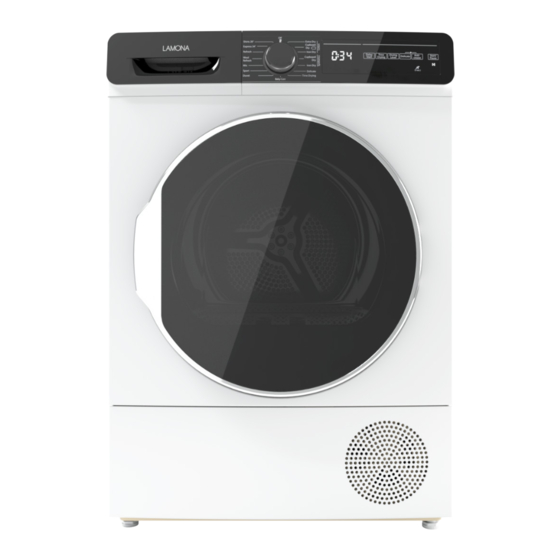

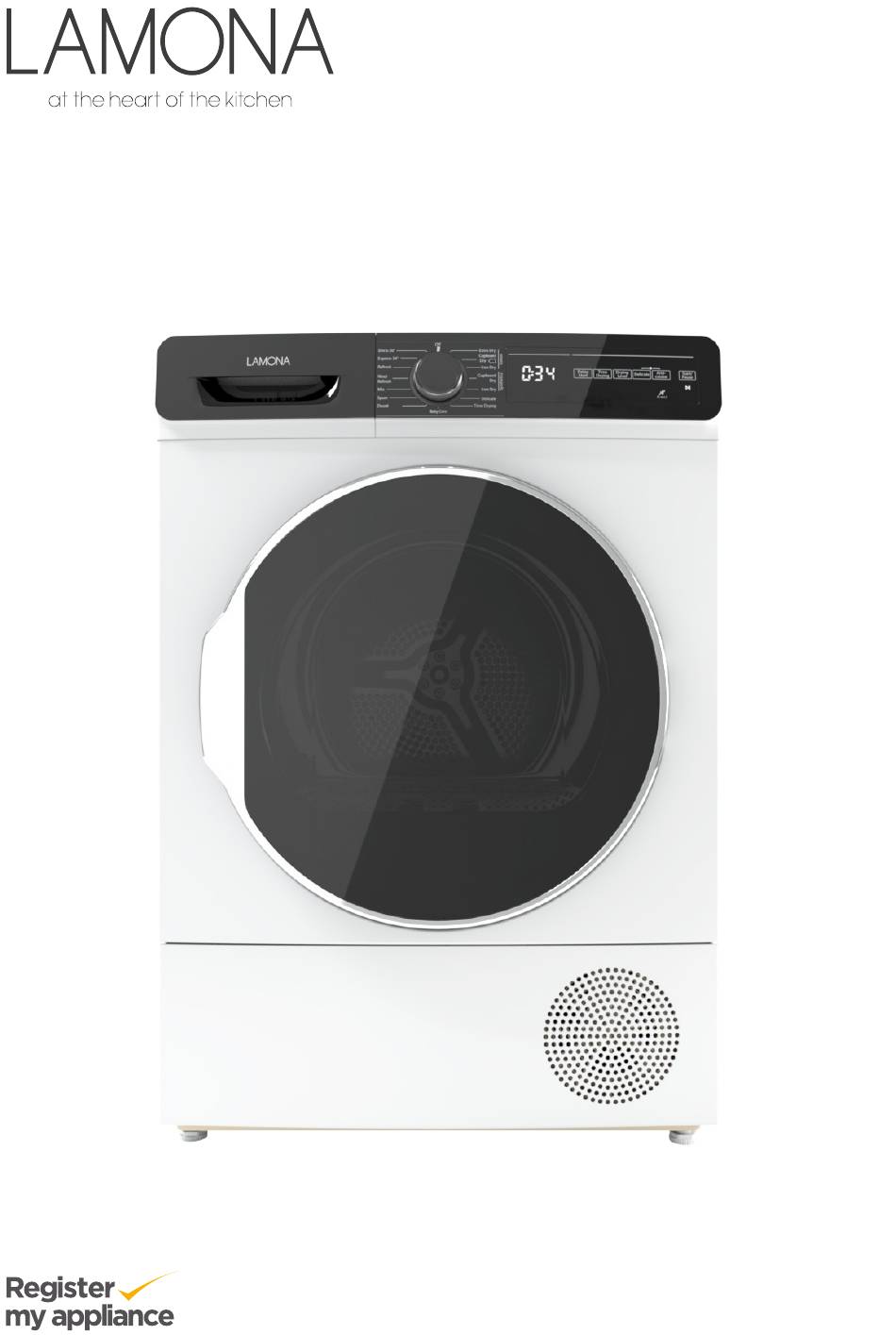

- Page 1 Freestanding Condenser Tumble Dryer FLM8801 User Instructions ISSUE v1.3 240323 www.howdens.com/appliance-registration...
- Page 2 www.howdens.com...
-
Page 3: Welcome
Welcome Dear Customer Congratulations on your choice of energy efficient tumble dryer. • This tumble dryer complies with all current local and national safety requirements; however, inappropriate use could lead to personal injury and damage to property. • Please read these user instructions carefully before using the tumble dryer. It contains important information on safety, use and maintenance. -
Page 4: Table Of Contents
Contents Register my tumble dryer Programmes p.13 Welcome Additional programmes options p.15 Standby p.15 Caring for the environment Drying Level p.16 Disposal of packing material Delicate p.16 Disposing of your old appliance Anti-crease p.16 Warning and safety information Delay Start p.17 Correct application Time Drying... -
Page 5: Warning And Safety Information
• The tumble dryer may be used by people with electrician. LAMONA cannot be held liable for the reduced physical, sensory or mental capabilities, consequences of an inadequate earthing system or lack of experience or knowledge, if they are (e.g. -
Page 6: Electrical Connection
Frozen hoses may burst or split. • If the electrical connection cable is faulty it must only be replaced by a LAMONA Service Engineer to The reliability of the electronic control unit may be protect the user from danger. -
Page 7: Accessories
Authorised • Accessory parts may only be fitted when expressly LAMONA cannot be held liable for damage approved by LAMONA. If other parts are used, caused by non-compliance with these warranty, performance and product liability claims warning and safety instructions. -
Page 8: Main Points For Use
Keep the grille clear. The dryer can be stacked upon There is risk of damage to valves, a LAMONA freestanding washing pumps and hoses if water is allowed machine using stacking frame to freeze in the hydraulic circuit. -
Page 9: Operating The Tumble Dryer
Operating the tumble dryer Tumble Dryer Overview Programme selector dial Water container Display Fluff filters Fan cover (Keep clear) Minimum Clearances Adjustable foot x4 FRONT Front Condenser grille cover 20mm 20mm Air outlet 10 - 20mm Control panel 5. Time Drying button 9. -
Page 10: Environmentally Friendly And Energy Efficient Drying
Environmentally friendly and energy efficient drying. • When in use ensure that the environment around the dryer is well ventilated. • Only put laundry into the dryer that has been thoroughly wrung/spin dried at the highest speed possible. This will shorten dryng time and reduce energy consumption. •... -
Page 11: Sorting The Laundry
Sorting the laundry Sort by care symbols Follow the instructions on the labels of the laundry to be dried. Only dry items that have a statement/ symbol that indicates “they can be dried in a dryer”` Suitable for drying in a Dryer Does not need ironing Sensitive/Delicate drying Not suitable for drying in a dryer... -
Page 12: Loading The Tumble Dryer
Loading the tumble dryer 1 Open the door Reach behind the door grip and pull the door open. Recommended Max. load level. 2 Load the drum Note: Do not load the dryer with more laundry than the amount shown in Dry load the programme table. -
Page 13: Programmes
Programmes If you opening the door when the programme is running, the product will switch to standby mode. Once the door has been closed, press the Start/Pause key to resume the programme. Do not open the door when the programme is running. If you have to open the door, do not keep it open for a long time. Cotton Extra Dry Description Drying Time... - Page 14 Programmes (continued) Duvet Description Drying Time 2:12 Maximum Load: 2.5Kg This programme is used to dry duvet. Default Displayed Sport Description Drying Time Sport program is used for synthetic sport laundries like 1:29 Maximum Load: 4Kg shorts, t-shirts at low temperature. Default Displayed Description Drying Time...
-
Page 15: Additional Programmes Options
Additional programme options Options compatibility Programmes Delay Start Child Lock Time Drying Drying Level Anti-crease Delicate • Cotton Extra Dry Cotton • Cupboard Dry • Cotton Iron Dry Synthetics • Cupboard Dry • Synthetics Iron Dry • • Delicate Default •... -
Page 16: Drying Level
Additional programme options Drying Level Usage Sets the drying level. L0, L1, L2, L3. This adds extra time to the selected programme to increase the level of dryness if desired. 1. Select a compatible programme using the programme dial. Drying 2. -
Page 17: Delay Start
Additional programme options (continued) Delay Start Usage Allows programme start time to be delayed by 1 to 23 hours (1 hr. intervals). Once the time has elapsed, the programme will start automatically. Long pressing the Delay Start button will increase the time continuously. 1. -
Page 18: End Of Programme
End of programme Open the door and remove the laundry Once the programme has finished, an audible warning sounds and the following indicators are displayed on the control panel. Empty water tank. Filter Clean Start / Pause Note: The appliance includes an LED drum light. This works automatically when the door is opened. -
Page 19: Cleaning And Care
• Clean the casing and control panel with a damp Cleaning and care cloth and mild cleaning agent and dry with a soft cloth. Ensure the dryer is correctly ventilated WARNING: Damage caused by cleaning agents. Solvent based cleaning agents, abrasive cleaners, Do not use this machine if it appears to be faulty. - Page 20 Fluff filters Cleaning and care (continued) Clean after each cycle. Cleaning the filters - IMPORTANT! • Is the fluff filter clean and free from lint. Never use the appliance if the filters are not fitted or are damaged. • Is condenser grille clean and free from dust &debris. If garments are not drying check:- Open the door and pull the Separate the filters.
-
Page 21: Cleaning The Filters
LED is blinking. filter is in place. CAUTION: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorised LAMONA Service Agent. Never try to repair a non-functional product yourself. Exclusive to Howdens... -
Page 22: Technical Specifications
Technical specifications Supplier name or trademark LAMONA Model name FLM8801 Height Min: 845 mm / Max: 855 mm* Width 596 mm Depth 609 mm Capacity (max.) 9 Kg** Energy label Voltage 220 - 240 V Power 1000 W *Min. height: Height with the adjustable feet not used. Max. height: Height with the adjustable feet extended to the maximum. -
Page 23: Error Codes
Error codes Errors that may be checked / remedied by user and often do not need a service call Your tumble dryer is equipped with a built-in fault detection system, indicated by a combination of flash- ing lights. The most common failure codes are shown below. Error code Solution Contact the nearest authorised service agent. - Page 24 Product fiché Complying Commission Delegated Regulation (EU) No 392/2012 Supplier name or trademark LAMONA Model name FLM8801 Rated capacity (Kg) Type of tumble dryer Heat Pump Energy efficient class Annual Energy Consumption (kWh) Automatic or Non-automatic Automatic Energy Consumption of the standard cotton programme at full load (kWh) 2.73...
-
Page 25: Guarantee
• Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within UK 0344 460 0006 Within Republic of Ireland 01525 5703 * Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the tumble dryer. - Page 26 Notes www.howdens.com...
- Page 27 Notes Exclusive to Howdens...
- Page 28 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in March 2023. The company has a policy of continuous product development and Howden Joinery Ltd.
