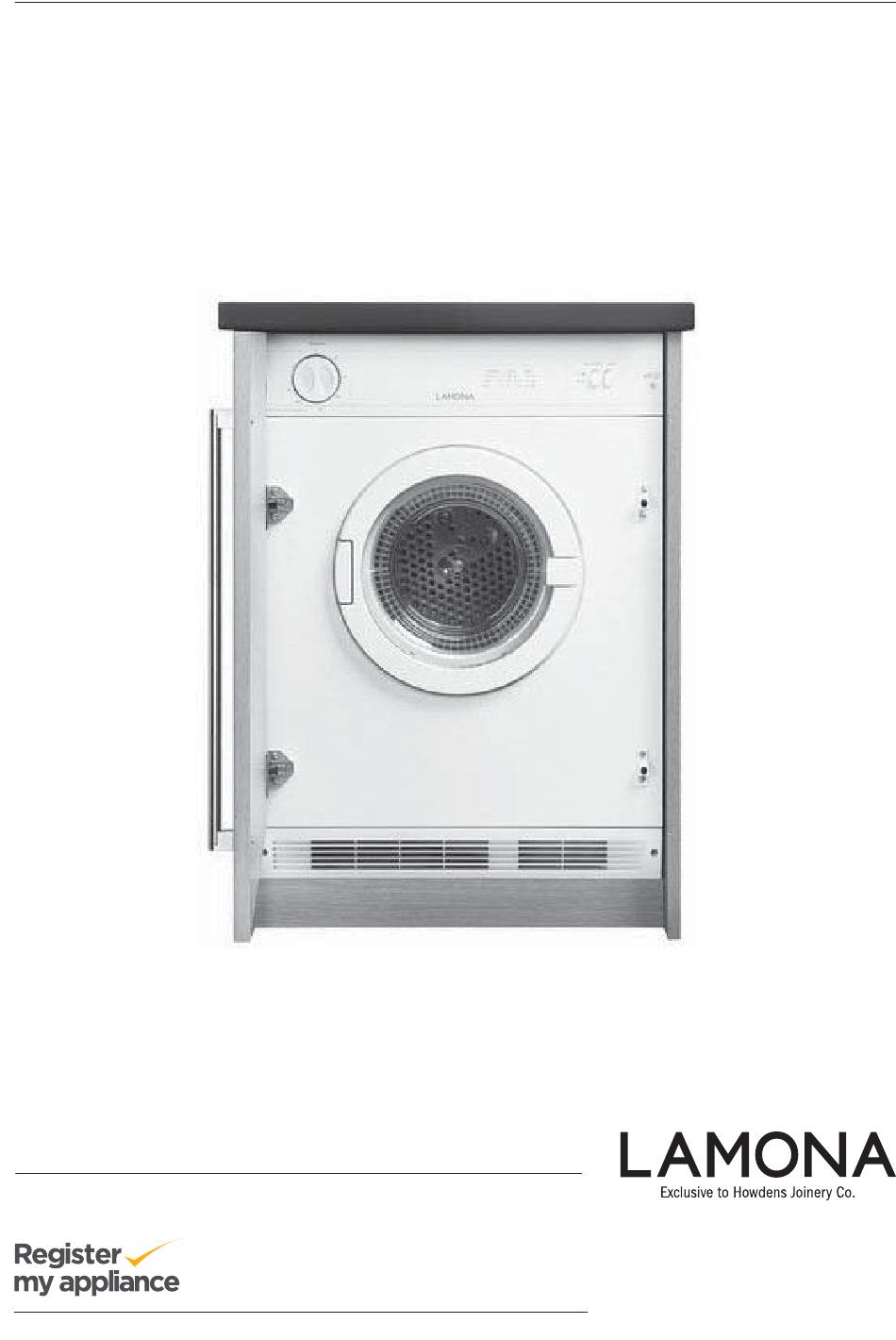

- Page 1 Integrated Vented LAM8800 Tumble Dryer Instructions & Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 User manual LAM8800 Dear Customer, Congratulations on your choice of vented tumble dryer. The user manual will help you use your product quickly and safely. • Please read this user manual before installing. • Always follow the safety instructions. •...
-
Page 4: Table Of Contents
LAMONA Appliances Index 01 - Before using the tumble dryer 02 - Safety 03 - User Guide Control panel Operation The fi lter 04 - Installation Door reversal Fitting the feet Instructions to fi t the external vent kit Decor door fi tting... -
Page 5: Before Using The Tumble Dryer
User manual LAM8800 01 - Before using the tumble dryer • Make sure that you have removed all packaging, wrappings, stickers and fi lms from the surface. • This tumble dryer is intended for domestic use only (see guarantee). 02 - Safety These notes are provided in the •... - Page 6 LAMONA Appliances • DO NOT use the tumble • It is important to clean the dryer if you suspect that it is lint fi lter after each drying damaged in any way. Under cycle or the restrictions to no circumstances should airfl...
- Page 7 User manual LAM8800 • The special mains cable and • DO NOT dry articles singly as plug assembly must only be they tend to roll up and so replaced with a genuine part increase drying time. by the manufacturer or service agents in order to avoid a •...
-
Page 8: User Guide
LAMONA Appliances 03 - User Guide Control Panel Guide TIME SETTING HEAT START DRYING HEAT TIME SETTING Standard Cotton 115 mins programme-full load FULL Polyester Cotton 40 - 60 mins HEAT HALF Acrylics 20 - 40 mins HEAT Standard Cotton... - Page 9 User manual LAM8800 • The drum will now begin to rotate and stop when the timer automatically reaches the ‘0’ position. • Should the clothes become dry before the cycle has fi nished the thermostat will automatically switch off the heater and prevent over drying and save energy although the drum will still rotate.
-
Page 10: The Fi Lter
LAMONA Appliances The Filter • The fi lter is found, as seen from the diagram, by opening the door and must always be in position when drying items in the appliance. • To allow the dryer to operate effi ciently it should be cleaned after each drying cycle. -
Page 11: Installation
User manual LAM8800 04 - Installation The tumble dryer is fully compatible with 575mm deep kitchen units and complies with all current relevant EU regulations. Your dryer is provided with a vent hose which will extend to approx 1.6m. We strongly recommend that this is vented through the wall with the attachment provided. -
Page 12: Door Reversal
LAMONA Appliances Door Reversal The door on the dryer can be positioned either with the left or right hand hinges. Please follow the instructions below to change the door position. -
Page 13: Fitting The Feet
User manual LAM8800 Fitting the Feet • Important: Lay the dryer on its back to fi t the feet. Avoid moving the dryer sideways after the feet are fi tted. • Using the short self tapping screw (A) attach the foot rails (B) to the bottom of the machine. -
Page 14: Instructions To Fi T The External Vent Kit
LAMONA Appliances Instructions to fi t the external vent kit Make a hole in the outside wall to fi t the vent kit. Pull the vent hose from the rear of the dryer (A) and remove the end adaptor by removing the screw (B) Pull the vent through the outside wall and attach to the inner venting (D) and tighten the jubilee clip. -
Page 15: Decor Door Fi Tting
User manual LAM8800 Decor door fi tting The hinges can be fastened through the pre-drilled holes on either the left or right hand with the door stops being fi tted on the other side. Technical Data • Overall dimensions: 86.5 - 89cm (H) x 59.5cm (W) x 53cm (D). -
Page 16: Trouble Shooting
LAMONA Appliances 05 - Trouble Shooting If your machine does not work, check the following points before contacting the service number. Problem Solution • Check if the fi lter is clean. • Check that you used the correct heat setting. -
Page 17: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 * Product installed within a domestic kitchen or non-domestic kitchen where 8 or fewer people are using the appliance. - Page 18 LAMONA Appliances...
- Page 19 User manual LAM8800 Product Fiche Commissi on Regula on (EU) No 392/2012 LAM8800 Model Capacity Air Vented Technology Energy Class 459kWh/a The fi gures above are based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
- Page 20 Product serial number (Place sticker here) ISSUE v8.1 131117...
