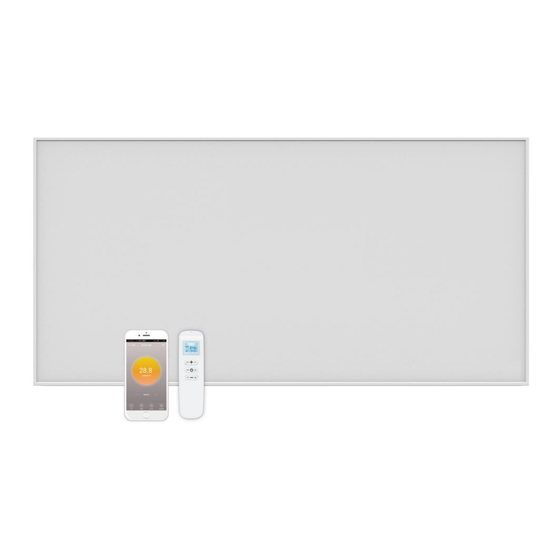

- Page 1 User’s Manual – A S Panel heater REBO Panel heater 700W AR-HE-IH700, AR-HEH9AR-HE-IH1100 Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
- Page 2 User’s Manual – A S Panel heater REBO List of contents 1. Safety instructions........3 1.1 Symbols ................. 3 1.2 General safety instructions ..........4 2. Technical data ..........6 3. Installation ..........7 3.1 Device Structure ............7 3.2 Scope of Delivery ............7 3.3 Installation Manual ............
- Page 3 User’s Manual – A S Panel heater REBO Please read and save these instructions. Read through this user’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property.
- Page 4 User’s Manual – A S Panel heater REBO WARNING! from electrical voltage! This symbol indicates that there are dangers to the life and health of persons due to electrical voltage. Work on electrical components may only be carried out by an authorized specialist company! WARNING! Danger of electric shock! The device must not come into contact with water, otherwise there is a risk...
- Page 5 User’s Manual – A S Panel heater REBO WARNING! Do not use the device in small rooms if persons are present who cannot leave the room independently and who are not under constant supervision. WARNING! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
- Page 6 •The device is suitable for wall mounting. Safe distance: 30cm from the front; 10cm from the right and left sides. 2. Technical data Model AR-HE-IH700WT Option Built-in Wifi and with Remote control Power input 700 W...
- Page 7 User’s Manual – A S Panel heater REBO 3. Installation 3.1 Device Structure 1 Frame 2 Heating element 3 rear metal sheet 4 Wall attachment 5 Power cord 6 Junction box 3.2 Scope of Delivery 3.3 Installation Manual...
- Page 8 User’s Manual – A S Panel heater REBO 1. Choose the mounting position, keep the required minimum distances. (Pic 1) Distances required for device mounting front Minimum 30cm right Minimum 10cm left Minimum 10cm Minimum 50cm 2. Drill the holes for the infrared heater. (Fig. 2) 3.
- Page 9 User’s Manual – A S Panel heater REBO 3.4 Installation of stands (optional) • The stand is NOT in delivery with the heater. It can be purchased separately from our online shop. • The stands can be mounted in order to be able to place the device anywhere in the room. The accessories for the stands are not included in the scope of delivery.
- Page 10 User’s Manual – A S Panel heater REBO 4.2 Technical Data of Internal Receiver thermostat disable switch. wifi reset ON: means disabling button thermostat Receiver on the back side of the heater Power Supply: AC220-240V Wireless standard: IEEE802.11b/g/n Frequency range: 2.412~2.484GHz Security mechanism: WEP/WPA-PSK/WPA2-PSK Encryption type: WEP/TKIP/AES Standby power consumption: <0.8W...
- Page 11 User’s Manual – A S Panel heater REBO 4.5. Instructions of remote-controller operation Remote-controller 1) Power on the heater, and then press " " and "＋" at the same time within one minute to start pairing, the WIFI symbol flashes three times and sends out the pairing code to indicate that pairing is taking place, there will be one beep sound from heater after success.
- Page 12 User’s Manual – A S Panel heater REBO 4.6. Instruction of WIFI Connection 1) Before pairing, please make sure your mobile phone connects to your 2.4ghz WIFI signal invariably. 2) Scan and install below Smart Life APP, and Register an account. →...
- Page 13 User’s Manual – A S Panel heater REBO 5) Click “Go to add”. In next page click“ ”to add a bluetooth device, and a Enter Wi-Fi ○,+ Password dialog will pop-up as following. 6) Enter Wi-Fi password, click “Confirm” ，It will automatically enter the next step for WIFI connection.
- Page 14 User’s Manual – A S Panel heater REBO 4.7. Operation Instructions Main view of the Smart Life APP after heater connected successfully as below. turn on/off the power supply of the heater, blue indicator on heater panel lighting up means the heater has been powered on. Click device name “infrared panel heater”...
- Page 15 User’s Manual – A S Panel heater REBO 4.8. Important note • The heater only support 2.4GHz network. • Red light means the heater is online, blue light means the heater is powering on. • If long press wifi reset button 5-10s or repeat powering on/off the heater 4 times by plug, internal WiFi connecting information will be cleared, you need to pair WIFI again.
- Page 16 User’s Manual – A S Panel heater REBO agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. Wipe the housing dry after cleaning. • Before storing the device, proceed as follows: o Hold onto the mains plug while pulling the power cable out of the mains socket. o Allow the device to cool down sufficiently.
- Page 17 +49 (0) 931 4523 2799 / e-mail: info@arebos.de Office address: Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ Sales tax identification number: DE 263752326 Court of commercial registration is Würzburg, HRB 10082...
- Page 18 Canbolat Vertriebsgesellschaft mbH Gneisenaustrasse 10-11 97074 Würzburg, Germany declare, under sole responsibility, that the following product: Brand Product Panel Heater 700W Product Model AR-HE-IH700WT Article 4252023108126 has been developed, designed and 2014/30/EU manufactured in accordance with 2014/35/EU the requirements of European 2011/65/EU;...
