Summary of Contents for AREBOS AR-HE-HS2500CS

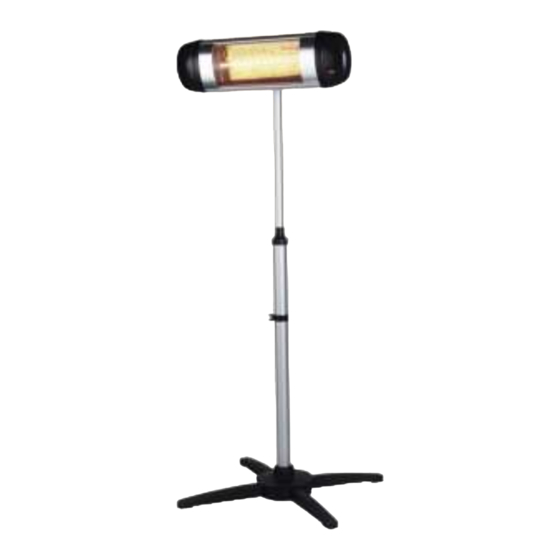

- Page 1 User’s Manual – A S Infrared heater 2500 W REBO Infrared heater 2500 W AR-HE-HS2500CS/WS *product can differ depending on variety Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
-
Page 2: Table Of Contents
User’s Manual – A S Infrared heater 2500 W REBO Contents 1. Safety instructions ............3 Symbols ........................... 3 General instructions ........................ 3 1.3 General safety distances ....................... 5 1.4 Distances to the bathtub, sink or other sanitary facilities ............5 2. -
Page 3: Safety Instructions
User’s Manual – A S Infrared heater 2500 W REBO 1. Safety instructions 1.1 Symbols By means of a CE marking, it can be recognized that a product complies with the legal requirements of European legal standards and therefore may be traded within the European Community. - Page 4 User’s Manual – A S Infrared heater 2500 W REBO itself. Do not touch the power cord with wet hands. The power cord must not be structurally altered, otherwise it may cause malfunction, electric shock or even fire. • Do not make knots or kinks in the power cord, as this can quickly lead to an electric shock or even fire.
-
Page 5: General Safety Distances
User’s Manual – A S Infrared heater 2500 W REBO electrical appliances. 1.3 General safety distances • There must be at least 29.5 in (0.75 m) distance between the heater and the ceiling. • The distance of the device from the ground must be at least 71 in (1.80 m) when wall- mounted. -
Page 6: Parts List
3. Parts List 1. Rocker Switch 2. Heating element 3. Bracket 4. Cable 5. Safety bar 6. Grille /flame protector 4. Technical data Model AR-HE-HS2500CS AR-HE-HS2500WS Variety with base wall mounted 4260627427611 4260627427628 Power 2500 W 2500 W... -
Page 7: Installation
User’s Manual – A S Infrared heater 2500 W REBO 5. Installation 5.1 Setting up the device (with stand) Hints: • Do not place the device in the immediate vicinity of curtains and other flammable materials. • When setting up the device, ensure a secure, horizontal and stable position. •... - Page 8 User’s Manual – A S Infrared heater 2500 W REBO • Tighten pole (2) into the stand center (1.2) by turning the pre-attached stand center cover clockwise until tight. • Adjust the height of stand as desired. • Place the heater head facing down on a soft surface. •...
-
Page 9: Wall Mounting
User’s Manual – A S Infrared heater 2500 W REBO • Loosen the Fixing knobs (2X) of the holder, then assemble the device and the holder as shown following. • Now the device is attached with the holder. The heater is now ready to use. Ensure you have read these instructions thoroughly prior to use. - Page 10 User’s Manual – A S Infrared heater 2500 W REBO Procedure • There are 4 brackets and fasteners used with the heater. Furthermore, in the canal of the back side of the heater there are 4 square fastener washers 0.984 x 0.984 in ( 25 x 25mm). Relieve square washers and fasten 2 brackets to the canal of the backside of the heater by the help of screws.
-
Page 11: Commissioning
User’s Manual – A S Infrared heater 2500 W REBO • Electric wiring for the heater has to be done by the qualified specialist. Installation positions: Attention! Fixing only at ±5°horizontally is of great importance for permanent operation. 6. Commissioning •... -
Page 12: Cleaning
User’s Manual – A S Infrared heater 2500 W REBO 7.2 Cleaning • Attention! Regular and thorough cleaning ensures longevity and optimum performance. • The unit must be switched off and the power cord disconnected from the circuit. In addition, it should cool sufficiently before cleaning. -
Page 13: Service And Repair
User’s Manual – A S Infrared heater 2500 W REBO 7.4 Service and repair • If there is any damage or discrepancy on your device, it must only be checked and repaired by a specialist. This can be a recognized electrician. Damage or malfunctions that occur as a result of unauthorized repair, as well as changes to the device, misuse, negligence and improper and inadequate maintenance invalidate the warranty. -
Page 14: Meaning Of The "Dustbin
You can also find more information on the Battery Act on the Internet at www.batteriegesetz.de. You can also visit our website at www.arebos.de to find out about other return options we have created. Our customer service number: +49 (0) 931-45232700... -
Page 15: Eu Declaration Of Conformity
Authorised representative for the technical documentation: Korhan Canbolat Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
