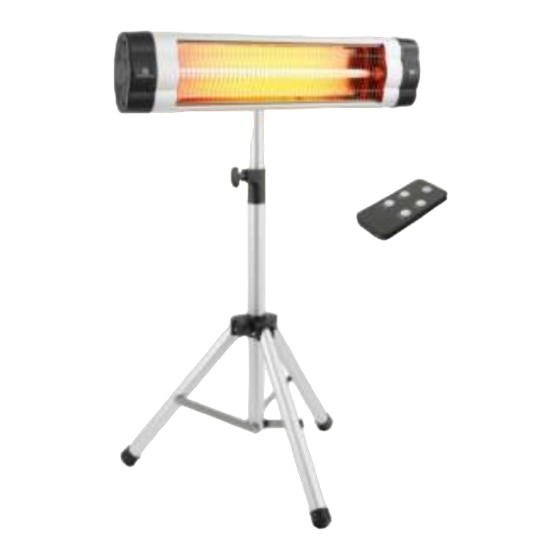

- Page 1 S Infrared heater 2500 W with remote control REBO Infrared heater 2500 W with remote control AR-HE-HS2500FB/WR(B) *product can differ depending on variety Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
-
Page 2: Table Of Contents
User’s Manual – A S Infrared heater 2500 W with remote control REBO Contents 1. Safety instructions ..........3 1.1 Symbols ............................3 1.2 General instructions ........................3 1.3 General safety distances ....................... 5 1.4 Distances to the bathtub, sink or other sanitary facilities ............5 2. -
Page 3: Safety Instructions
User’s Manual – A S Infrared heater 2500 W with remote control REBO 1. Safety instructions 1.1 Symbols By means of a CE marking, it can be recognized that a product complies with the legal requirements of European legal standards and therefore may be traded within the European Community. - Page 4 User’s Manual – A S Infrared heater 2500 W with remote control REBO • Do not make knots or kinks in the power cord, as this can quickly lead to an electric shock or even fire. Do not place the supply cable under heavy objects, as this can quickly lead to an electric shock or even fire.
-
Page 5: General Safety Distances
User’s Manual – A S Infrared heater 2500 W with remote control REBO 1.3 General safety distances • There must be at least 29.5 in (0.75 m) distance between the heater and the ceiling. • The distance of the device from the ground must be at least 71 in (1.80 m) when wall- mounted. -
Page 6: Parts List
REBO 2. Parts list 1. Switch 2. Heating element 3. Bracket 4. Cable 5. Safety bar 6. Hoods 7. Remote control 3. Technical specifications Model AR-HE-HS2500FB AR-HE-HS2500WR 4260627427368 4260627424252 Power 2500 W 2500 W Material Aluminium Aluminium Voltage AC 220 - 240 V... -
Page 7: Installation
User’s Manual – A S Infrared heater 2500 W with remote control REBO through warm sunlight. The new infrared radiation does not primarily heat the air, but the people and objects that are within reach. As a result, the infrared radiation is perceived as very pleasant and can be very effective. - Page 8 User’s Manual – A S Infrared heater 2500 W with remote control REBO the help of screws. • Fasten the brackets at the appropriate distance of each other (17.7 - 21.7 in (45-55 cm)). • Two other brackets are fastened by the help of fasteners at the appropriate distance on the wall parallel to the floor (at least 71 in (1.80 m) from the floor and at least 29.5 in (0.75 m) from the ceiling).
-
Page 9: Use
User’s Manual – A S Infrared heater 2500 W with remote control REBO 6. Use 6.1 Commissioning and operation • Turn on the power. A buzzer will beep once, the digital screen and the display will not be displayed. At this point, press the ON/OFF button to enter standby mode. •... - Page 10 User’s Manual – A S Infrared heater 2500 W with remote control REBO • Press the function button again, the buzzer will beep once, the display P3 will appear on the screen and the indicator will flash three times to indicate that the unit is in high operating mode.
-
Page 11: How The Remote Control Works
User’s Manual – A S Infrared heater 2500 W with remote control REBO Remarks: • The heater will start working at the power level at which it was turned off. • Press the ON/OFF button on the remote control or on the unit itself to turn off the heater. •... -
Page 12: Cleaning, Maintenance And Service
User’s Manual – A S Infrared heater 2500 W with remote control REBO 7. Cleaning, maintenance and service 7.1 Maintenance • It is very important to perform careful and regular maintenance of the device in accordance with the recommendations made in this manual so that it can run efficiently for a long time. In case there is a problem with your heater, please contact a qualified specialist. -
Page 13: Service And Repair
User’s Manual – A S Infrared heater 2500 W with remote control REBO • The reflector and filament must be cleaned with a soft cloth, a smooth brush or cool or dry air. The cloth may be damp but never too wet and the cleaner should not include any chemical. -
Page 14: Change Bulb
User’s Manual – A S Infrared heater 2500 W with remote control REBO 7.5 Change bulb Disassemble the endcaps by loosening the two screws on each side with the screwdriver. Screws Pull out the endcaps and slide the metal cover to the side. Endcaps... - Page 15 User’s Manual – A S Infrared heater 2500 W with remote control REBO Metal cover Disassemble both holding sheets by loosening the nut next to the sheet with a wrench (7mm) and hold against from behind with a screwdriver. Holding sheets...
-
Page 16: Troubleshooting
User’s Manual – A S Infrared heater 2500 W with remote control REBO Carefully cut off the cable tie with the cutter. Do not cut the cables! By using pliers remove the blue and red cable from the board. Grab the cable by the very bottom. The lamp is loose now. Exchange the loose lamp now for the new item. -
Page 17: Disposal Instruction
You can also find more information on the Battery Act on the Internet at www.batteriegesetz.de. You can also visit our website at www.arebos.de to find out about other return options we have created. Our customer service number: +49 (0) 931-45232700... -
Page 18: Eu Declaration Of Conformity
Authorised representative for the technical documentation: Korhan Canbolat Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
