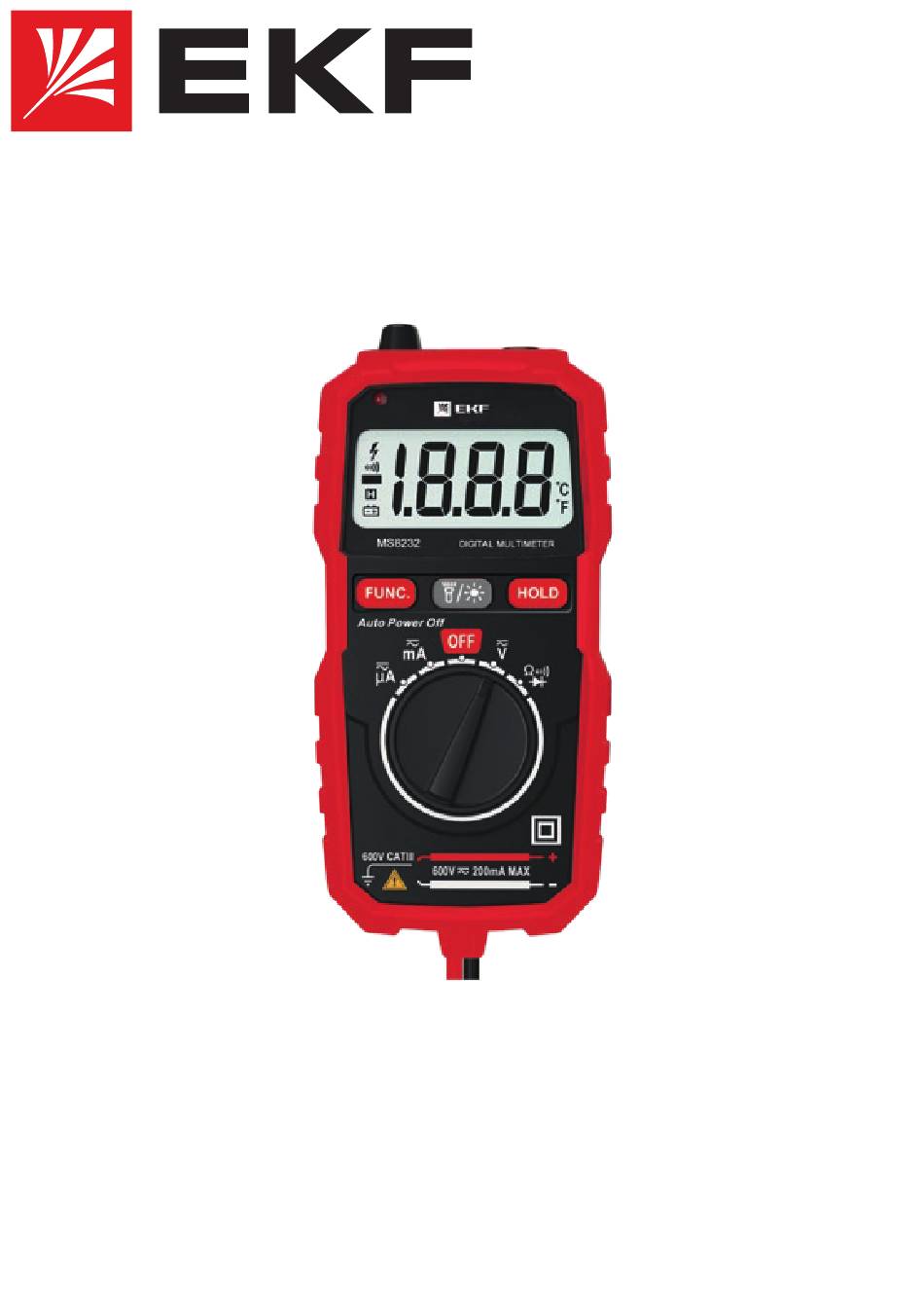

- Page 1 TECHNICAL MANUAL Digital multimeter МS8232 EKF EXPERT...
- Page 2 SAFETY INFORMATION The digital multimeter MS8232 EKF EXPERT complies with IEC 61010-1:2001 in terms of safety requirements, and IEC 61326-2-1:2005 and IEC 61326-2-2:2005 in terms of electromagnetic compatibility. To ensure safe operation of the device, follow the instructions herein. The safety symbols used herein are listed in Table 1.
- Page 3 1 DESCRIPTION The digital multimeter MS8232 EKF EXPERT is a high-quality measuring instrument with a wide range of functions for everyday use: - DC / AC voltage measurement DCV / ACV ( )
- Page 4 3 TECHNICAL DATA Table 2 Parameter Value Maximum display value 2000 Measurement method Double-integrated ADC Measuring rate 3 measurements per second Overload indicator «OL» on the LCD display Fuse 250 mА/250 V Low battery indicator symbol on the LCD display Polarity indicator symbol «...
- Page 5 DIRECT CURRENT RESISTANCE Range Resolution Accuracy Range Resolution Accuracy 200 µА 0,1 µА 200 Ohm 0,1 Ohm 2000 µА 1 µА 2 kOhm 0,001 kOhm ±1,8% ± 5D 20 mА 0,01 mА 20 kOhm 0,01 kOhm ±1,0% ± 3D 200 mА 0,1 mА...
- Page 6 4 MEASUREMENTS Never exceed the overload capacity value specified for each measuring range. DC AND AC VOLTAGE MEASUREMENT ( ) 1. Set the rotary switch to ( ) and press the «FUNC.» button, select the type of measured voltage: DCV or ACV. 2.
- Page 7 DIODE TEST ( 1. Set the rotary switch to the position ( ), press the «FUNC.» button to select the diode test mode. 2. Connect the red probe to the anode and the black probe to the cathode of the diode under test. The display will show the approximate voltage drop in the diode when the direct current is flowing through it.
- Page 8 SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Russian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld. 9, 5th floor, 127273, Moscow, Russia. Теl.: +7 (495) 788-88-15.
- Page 9 9 CERTIFICATE OF ACCEPTANCE The digital multimeter MS8232 EKF EXPERT has been manufactured in compliance with laws and regulations in force and has been approved for operation. Quality control stamp Date of manufacture: For information, refer to the product package.
