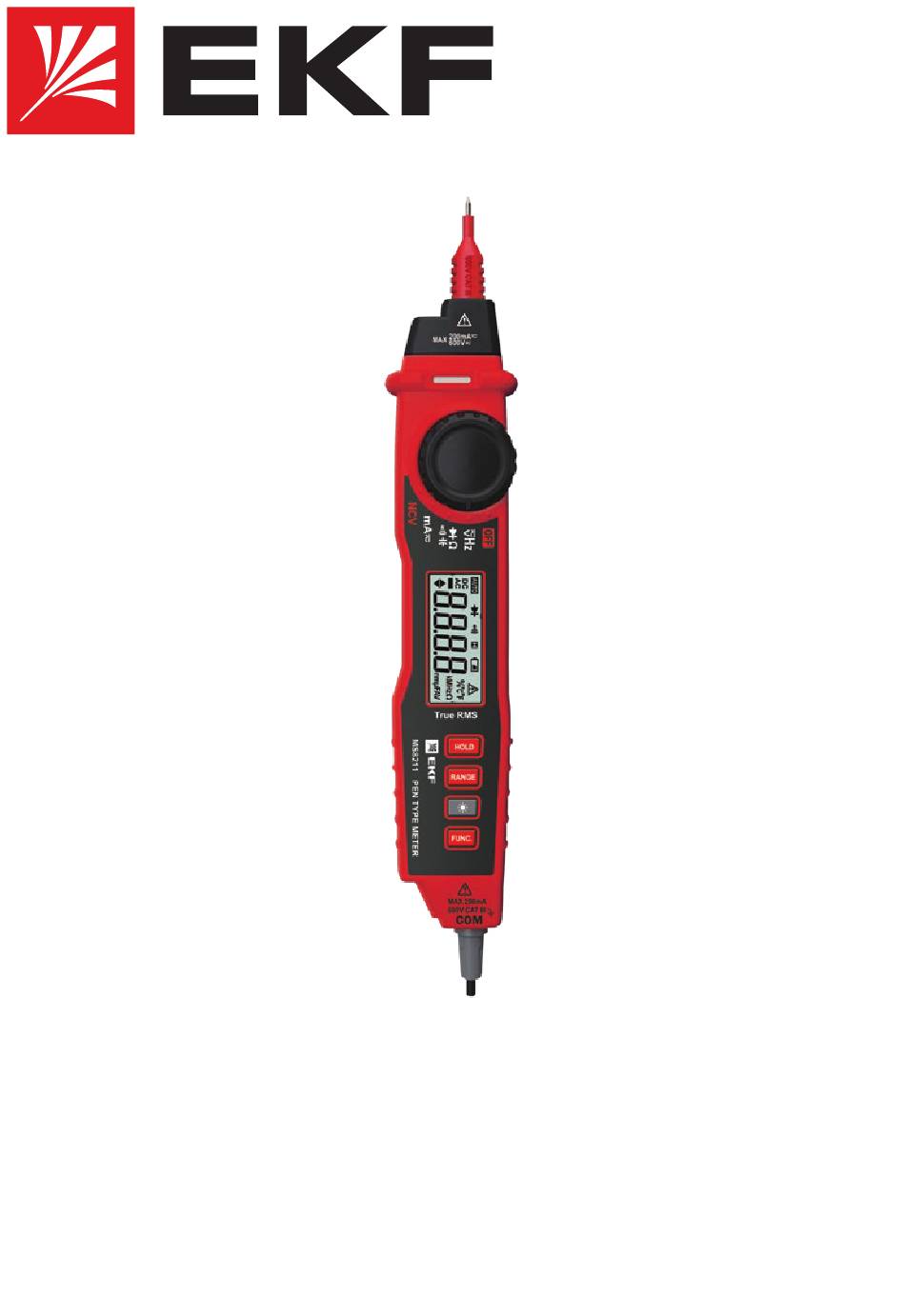

- Page 1 TECHNICAL MANUAL Digital multimeter МS8211 EKF EXPERT...
-
Page 2: Safety Information
SAFETY INFORMATION The digital multimeter МS8211 EKF EXPERT complies with IEC 61010-1:2001 in terms of safety requirements, and IEC 61326-2-1:2005 and IEC 61326-2-2:2005 in terms of electromagnetic compatibility. To ensure safe operation of the device, follow the instructions herein. The safety symbols used herein are listed in Table 1. - Page 3 1 DESCRIPTION The digital multimeter МS8211 EKF EXPERT is a high-quality measuring instrument with a wide range of functions for everyday use: - DC / AC voltage measurement DCV/ACV ( - DC / AC measurement DCA/ACA ( - Electrical resistance measurement (...
-
Page 4: Front Panel Elements
2 FRONT PANEL ELEMENTS 1. Internal probe (red) 2. Flashlight to backlight the work area 3. Non-contact voltage tester 4. Non-contact voltage LED True RMS 5. Rotary switch HOLD 6. LCD display 3 1/2 digits RANGE 7. Control panel («HOLD» button, «RANGE»... -
Page 5: Technical Data
3 TECHNICAL DATA Table 2 Characteristics Value Measuring range selection Manual / Auto Maximum display value 1999 counts Measurement method Double-integrated ADC Measurement rate 3 measurements per second Overload indicator "OL" symbol on LCD display Low battery indicator symbol « »... -
Page 6: Direct Current
DIRECT CURRENT ALTERNATING CURRENT Range Resolution Accuracy Range Resolution Accuracy 20 mA 0,01 mA 20 mA 0,01 mA ±1,8%,± 5D ±2,0% ± 5D 200 mA 0,1 mA 200 mA 0,1 mA Overload protection: Overload protection: fuse 250 mA/250 V. fuse 250 mA/250 V. RESISTANCE Resolution Range... -
Page 7: Dc And Ac Voltage Measurement
4 MEASUREMENTS WARNING! Never exceed overload capacity values of the device specified for each measuring range. MANUAL AND AUTO MODE FOR SELECTING MEASUREMENT RANGE 1. When you switch the multimeter to voltage, current and resistance measurement, auto mode for selecting the measurement range is set (AUTO is displayed). 2. -
Page 8: Resistance Measurement
RESISTANCE MEASUREMENT ( 1. Use the rotary switch to select the desired mode ( 2. Use the «FUNC» button to select the resistance measurement mode ( 3. Connect the probes to the measured resistance and read the value on the display. 4. -
Page 9: Non-Contact Voltage Detection
DIODE TEST ( 1. Use the rotary switch to select the desired mode ( 2. Use the «FUNC» button to select the diode test mode. 3. Connect the red probe to anode, and the black probe to the cathode of the tested diode. -
Page 10: Manufacturer's Warranty
Importer and EKF trademark service representative: EKF ELECTRICAL SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Russian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld. 9, 5th floor, 127273, Moscow, Russia.
