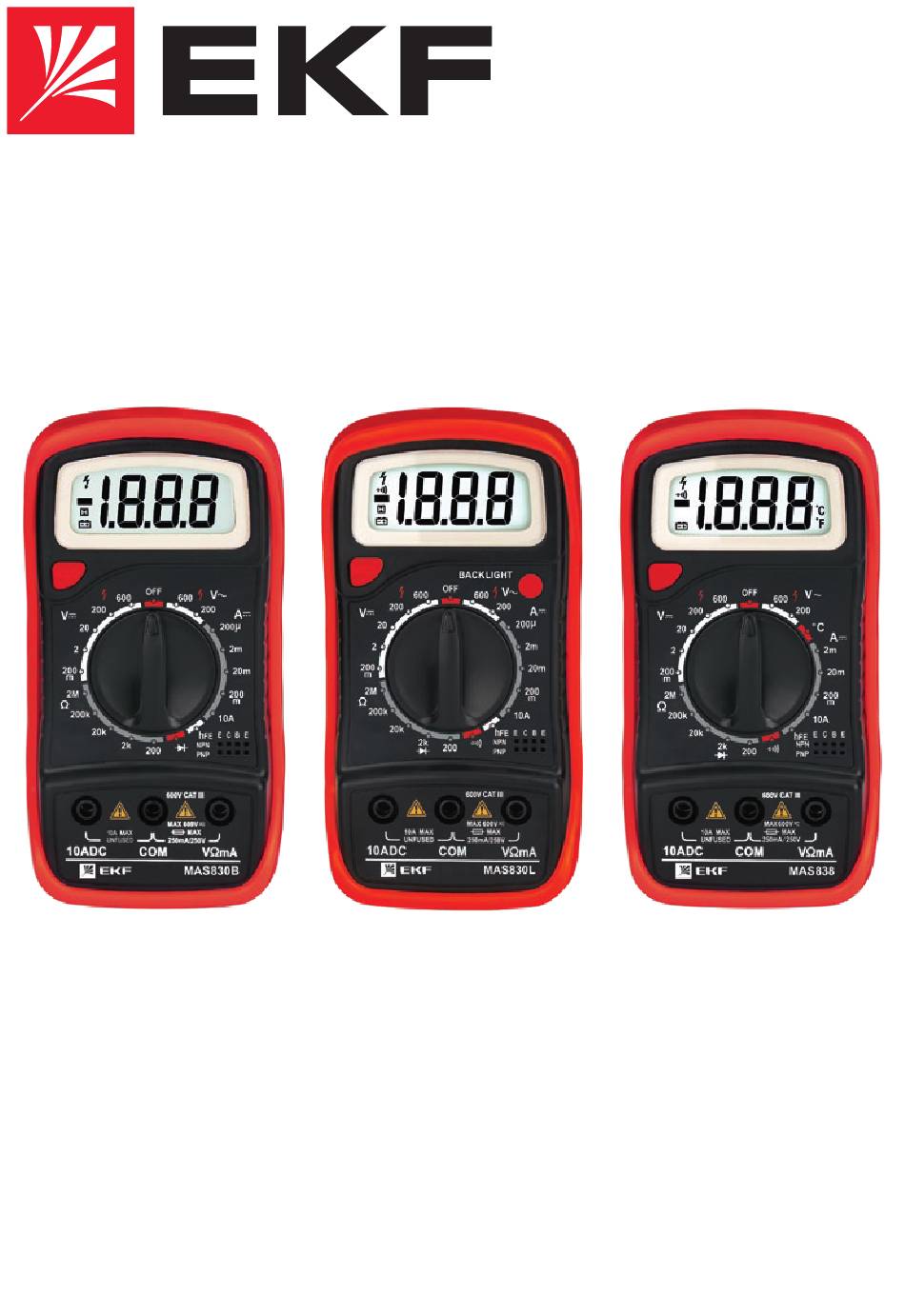

- Page 1 TECHNICAL MANUAL Digital multimeter МAS830В / МAS830L / МAS838 EKF EXPERT...
-
Page 2: Safety Information
SAFETY INFORMATION The digital multimeter МAS830В / МAS830L / МAS838 EKF EXPERT complies with IEC 61010-1:2001 in terms of safety requirements, and IEC 61326-2-1:2005 and IEC 61326-2-2:2005 in terms of electromagnetic compatibility. To ensure safe operation of the device, follow the instructions herein. -
Page 3: Front Panel Elements
1 DESCRIPTION The digital multimeters МAS830В, МAS830L, МAS838 EKF EXPERT are high-quality measuring instruments with a wide range of functions for everyday use (for details refer to Table 2): – DC voltage measurement DCV ( – AC voltage measurement ACV ( –... -
Page 4: Technical Data
Table 3 Button Function Current value hold (indicator «HOLD» appears). HOLD Press the button again to reset and return to measurement mode Press the button to backlight the display. The backlight stops after BACKLIGHT 5 seconds. Press the button again to restart the backlight 3 TECHNICAL DATA Table 4 Parameter... -
Page 5: Direct Current
DIRECT CURRENT Table 8 Range Resolution Accuracy Model 200 µA 0,1 µА МAS830В, МAS830L ±1,0% ± 3D 2 mА 0,001 mА МAS830В 20 mА 0,01 mА ±1,0% ± 5D МAS830L 200 mА 0,1 mА ±1,5% ± 5D МAS838 10 А 0,01 А... -
Page 6: Direct Current Measurement
DIRECT CURRENT MEASUREMENT ( 1. Connect the red probe to the socket and the black probe to the socket. «V mA» «COM» The polarity of the red probe is considered positive. (For current measurements from 10ADC» socket). 200 mA to 10 A, move the red probe to the «... -
Page 7: Battery And Fuse Replacement
TRANSISTOR TEST (hFE) hFE» position. 1. Put the rotary switch to the « 2. Determine whether the transistor is NPN or PNP and identify the emitter terminals, bases and collector. Insert the transistor into the corresponding holes on the front panel connector: "E"... -
Page 8: Manufacturer's Warranty
Importer and EKF trademark service representative: EKF ELECTRICAL SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Rus- sian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld. 9, 5th floor, 127273, Moscow, Russia.
