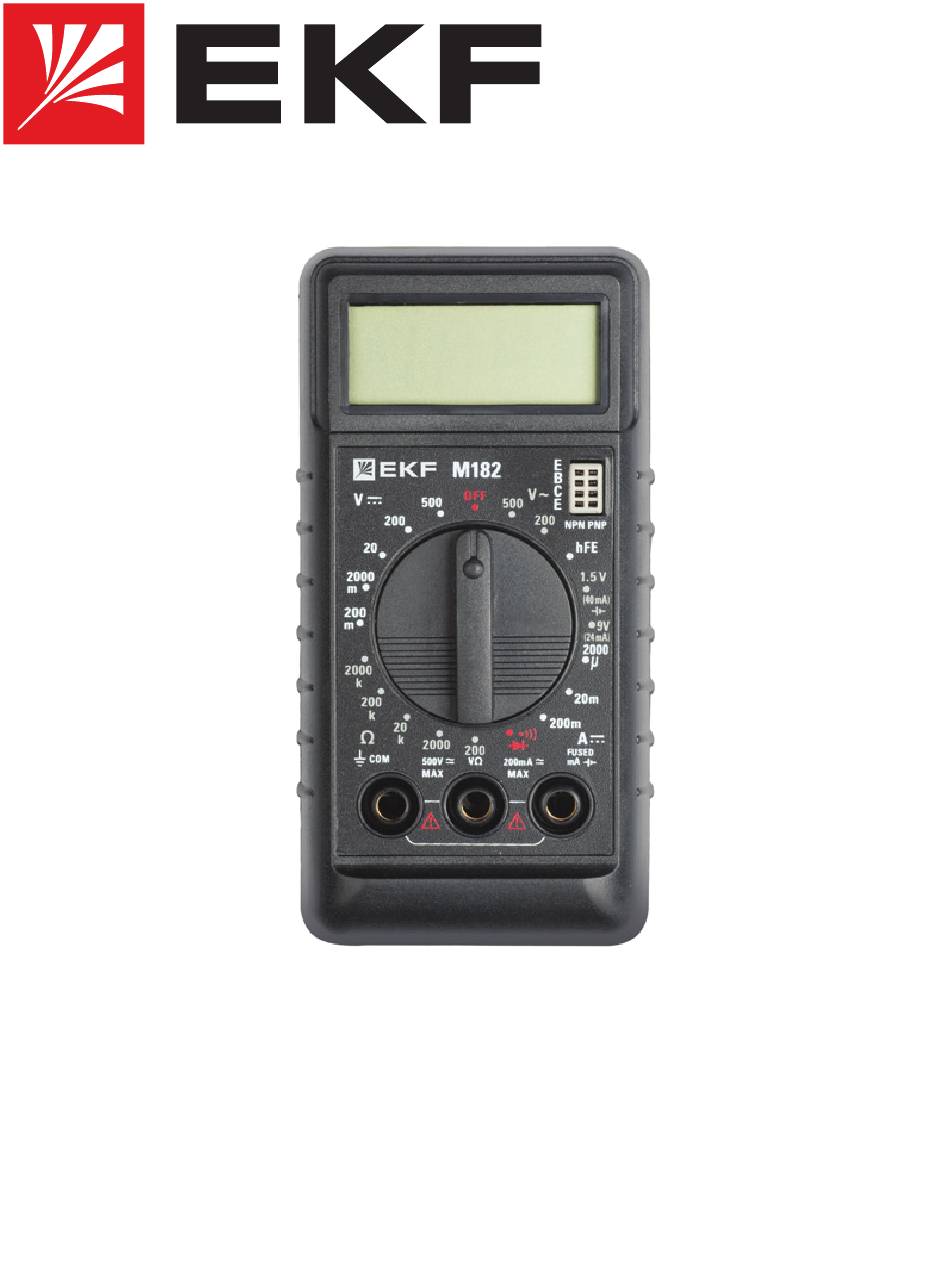

- Page 1 TECHNICAL MANUAL Digital multimeter М182 EKF MASTER...
-
Page 2: Safety Information
SAFETY INFORMATION digital multimeter M182 MASTER complies with IEC 61010-1:2001 in terms of safety requirements, and IEC 61326-2-1:2005 and IEC 61326-2-2:2005 in terms of electromagnetic compatibility. To ensure safe operation of the device, follow the instructions herein. The safety symbols used herein are listed in Table 1. Table 1 Important safety information High voltage may be present... - Page 3 • Do not touch any open sockets when the device is connected to the measured circuit. • If you do not know the measured value order before measuring, set the range switch to the maximum value. • Before turning the range switch, disconnect the probes from the mea- sured circuit.
-
Page 4: Front Panel Elements
1 DESCRIPTION The digital multimeter M182 EKF MASTER is a small-size device with functions as follows: - DC voltage (DCV) measurement - AC voltage (ACV) measurement - Direct current measurement - Electrical resistance measurement - Diode test - Transistor test... -
Page 5: Technical Data
3 TECHNICAL DATA Table 2 Characteristics Value 1999 with automatic polarity Maximum display value detection Measurement method Double-integrated ADC Measurement rate 2 measurements per second Overload indicator «1» on LCD display Low battery indicator symbol on LCD display Polarity indicator sign «... -
Page 6: Direct Current
DC VOLTAGE * D - least significant digit value Range Resolution Accuracy Overload protection: 220 V 200 mV 0,1 mV ± 0,5% ± 3D root-mean-square value (RMS) for 200 mV AC range and 500 V 2000 mV 1 mV DC/AC RMS for all other ranges. 20 V 10 mV ±0,8%±5D... -
Page 7: Other Functions
OTHER FUNCTIONS Function Description Diode test Indicates the direct voltage drop in the diode Range: 0 - 1000 Transistor test Test current Ibase = 10 μA Test voltage Vce = 2,8 V Circuit continuity test If the resistance of the tested circuit is less (buzzer) than 30 ±... -
Page 8: Resistance Measurement
3. Open the tested circuit and connect the probes in series with the load where the current is measured. 4. Read the value and polarity on the display. 5. If the display shows only «1» in the left digit, overload has occurred. Set the range switch to a higher value. -
Page 9: Battery Test
3. Read the hFE value on the display at the base current of 10 μA and collector-emitter voltage Vce of 2,8 V. 4. When the work is finished, put the rotary switch to the «OFF» position. Before testing the transistor, remove the probes from the multimeter sockets. -
Page 10: Delivery Scope
5 DELIVERY SCOPE 1. Multimeter - 1 pc. 2. Set of probes (red/black) - 1 pc. 3. Battery 12 V - 1 pc. 4. Technical and operation manual - 1 pc. 6 TRANSPORTATION AND STORAGE The product shall be transported in compliance with the transportation regulations applicable to each means of transport. - Page 11 Manufacturer: for information, refer to the product package. Importer and EKF trademark service representative: EKF ELECTRICAL SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Russian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld.
-
Page 12: Certificate Of Acceptance
9 CERTIFICATE OF ACCEPTANCE The digital multimeter M182 EKF MASTER has been manufactured in compliance with laws and regulations in force and has been approved for operation. Quality control stamp Date of manufacture: For information, refer to the product package.
