- Page 1 High Pressure Pump Units featuring CAT PUMPS® DU PM650 & DU PM660 Owner’s Manual #0788 V2 06.11.24 Serial Number: Installation Date:...
- Page 2 IMPORTANT Please read and understand this manual. Store in safe location for future reference. Everyone who operates this unit should understand basic operations and safety precautions! The time you take to fully understand the proper installation, maintenance and use of the machine will prolong its service life, and assure you of trouble free operation.
- Page 3 To avoid serious or fatal personal injury or major property damage, read and follow all safety and operation instructions in the manual. This is a Safety Alert Symbol - When you see this symbol in the manual, look for the following signal words & be alert to the potential for personal injury or property damage.

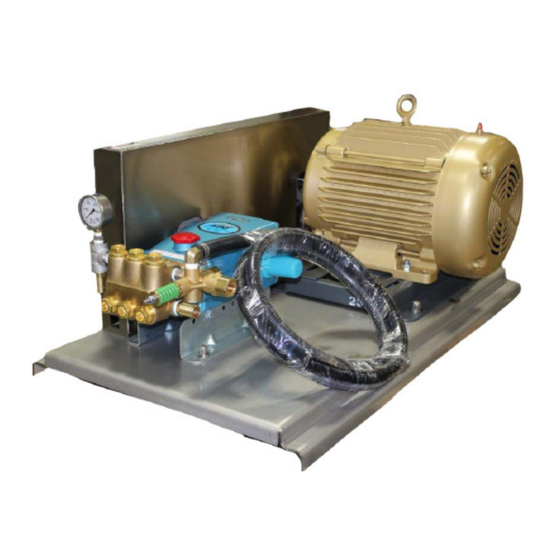

- Page 4 Approx. 42”L x 25”W x 18”H Shipping Weight ..........650- 350lbs/ 660- 535lbs System Features CAT PUMPS® Plunger Pump belt driven by Baldor Motor Heavy Duty Stainless Steel Baseplate & Beltguard Adjustable Motor Baseplate Adjustable Pressure Unloader Safety Pop Off Valve...
- Page 5 When running antifreeze through system, open and figure 1 close trigger gun so entire system is protected. Please refer to the included CAT PUMPS® reference materials for additional information on the Maintenance & Storage of your CAT PUMPS® Pump Unit.
- Page 6 Belts (Model DU PM660 - Not Shown) 3.... CC 650 ....... CAT PUMPS® Plunger Pump ........CC 660 CAT PUMPS® Plunger Pump (Model DU PM660 - Not Shown) 4.... AH 2750-5 ....6000# Glycerin Filled Pressure Gauge .... AH 2640-5 ....
- Page 7 Notice Regarding Manufacturer’s Limited Warranty Dultmeier Sales Limited Liability Company (hereinafter Dultmeier), notifies you that component part(s) carry a manufacturer’s limited warranty provided by the manufacturer of said component part(s). These warranties do not pertain to normal wear of component part(s) that may occur within any specified period. While Dultmeier is not the manufacturer of any of the component part(s), Dultmeier will assist you in processing any and all manufacturer’s warranty claim if applicable and available.
- Page 8 Production Checklist Oil Level Pop-Off Valve Set Clamps Tight Unloader Valve Locked Bolts Tight & Anti-Seized Belts Tight Pump RPM Pulleys Aligned & Torqued to Specifications Motor Amps Fittings Straight Motor Wired For Tested Accessories Winterized Safety Pop Off Valve Trigger Gun High Pressure Hose Injector / Injector Hose...
