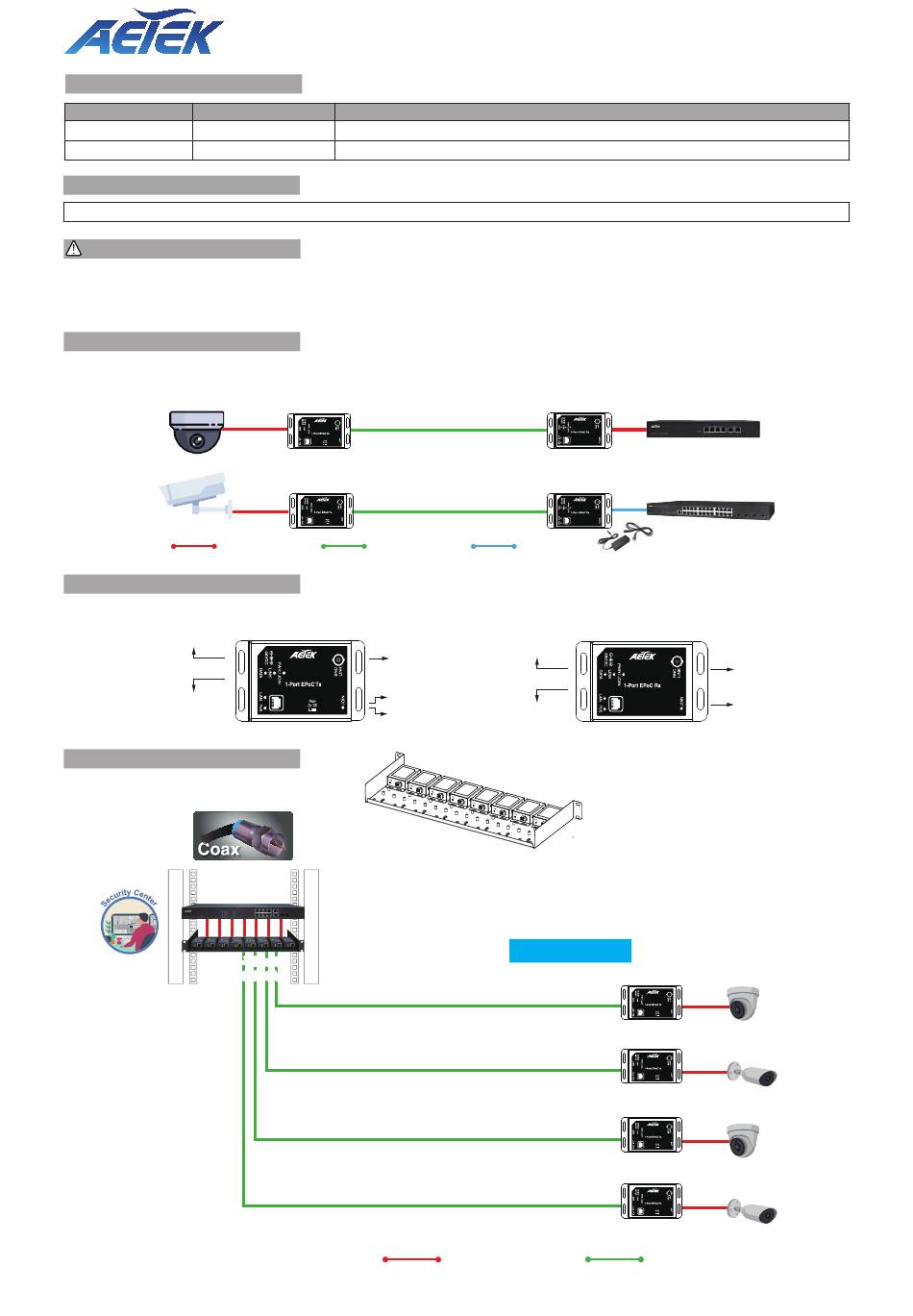

XE10-110-TX-V2 / XE11-110-RX-V2 EPoC Adapter
Quick Installation Guide
INTRODUCTION
Model
Power Source
XE10-110-TX-V2
56VDC or EPoC RX EPoC Tx Adapter, 1x EPoC BNC, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC
XE11-110-RX-V2
56VDC or PoE Input EPoC PoE in Rx Adapter, 1x EPoC BNC, 1x FE RJ45, -20ºC~60ºC
PACKAGE CONTENTS
* 1x Quick Installation Guide
IMPORTANT:
1. Use CAT5e or CAT6 UTP/STP cables,and coaxial. cahle
2. Please avoid using low quality cables, which will seriously limit the cabling distance and power delivery.
3. Make sure the power source is sufficient for your configuration.
CONNECTION
Application :
PoE(Data+Power)
INSTALLATION
Connect 56V/65W
Power Adapter(Option)
Connect to
PoE IP Camera
RACKMOUNT INSTALLATION
CH-110-V2 : For XE11-110-RX-V2 use
C42-084-91-770
CH-110-V2 with
CH-110-V2 with
XE11-110-RX-V2
XE11-110-RX-V2
Description
XE10-110-TX-V2
XE10-110-TX-V2
Coax(Data+Power)
XE10-110-TX-V2
EPoC Link
Connect to
EPoC RX
PoE On/Off Switch
Join Button
1,200m (3,937ft)
1,200m (3,937ft)
1,200m (3,937ft)
1,200m (3,937ft)
XE11-110-RX-V2
RG6 Coax
XE11-110-RX-V2
RG6 Coax
Data
XE11-110-RX-V2
Connect 56V/65W
Power Adapter(Option)
Connect to
PoE Switch
Peer-to-Peer PoE
PoE (Data + Power)
P/N: 5019047101
C42-042-91-380
C60-00F-01
EPoC Link
Connect to
EPoC TX
Join Button
XE10-110-TX-V2
XE10-110-TX-V2
XE10-110-TX-V2
XE10-110-TX-V2
Coax (Data + Power)
Advertisement
Related Manuals for AETEK XE10-110-TX-V2
Summary of Contents for AETEK XE10-110-TX-V2
- Page 1 XE10-110-TX-V2 / XE11-110-RX-V2 EPoC Adapter P/N: 5019047101 Quick Installation Guide INTRODUCTION Model Power Source Description XE10-110-TX-V2 56VDC or EPoC RX EPoC Tx Adapter, 1x EPoC BNC, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC XE11-110-RX-V2 56VDC or PoE Input EPoC PoE in Rx Adapter, 1x EPoC BNC, 1x FE RJ45, -20ºC~60ºC...
- Page 2 DATA Green flash BNC:Data is being transmitted or received. DIP Switch NOTE:The PoE On/Off switch is only available on XE10-110-TX-V2 DIP# Delivery PoE output to PD device No PoE output to PD device ⃰ When Connect PoE Switch Data or PoE port ,The DIP Switch need off.
