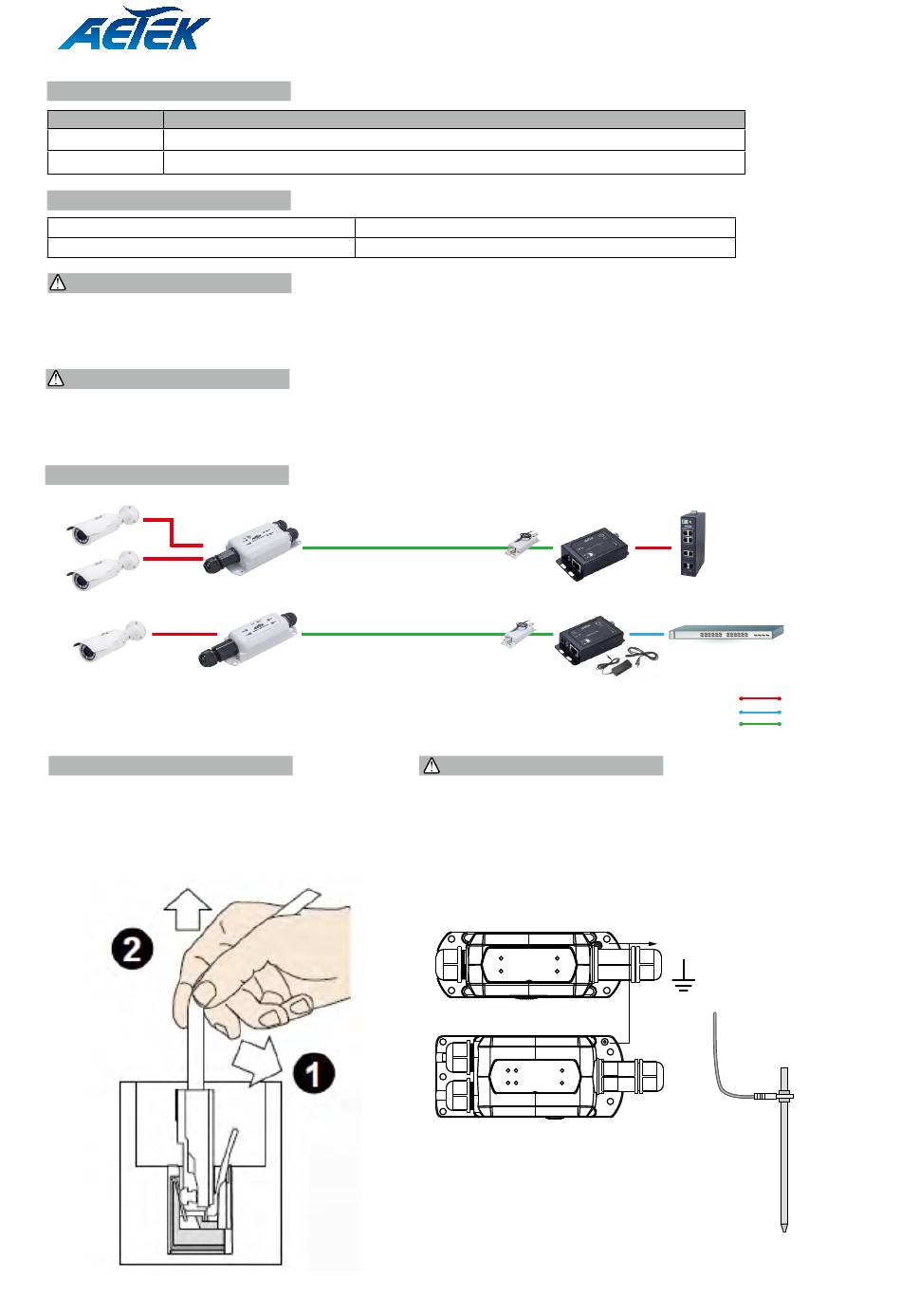

AETEK XE22-110-TX Quick Installation Manual

INTRODUCTION

Model Description

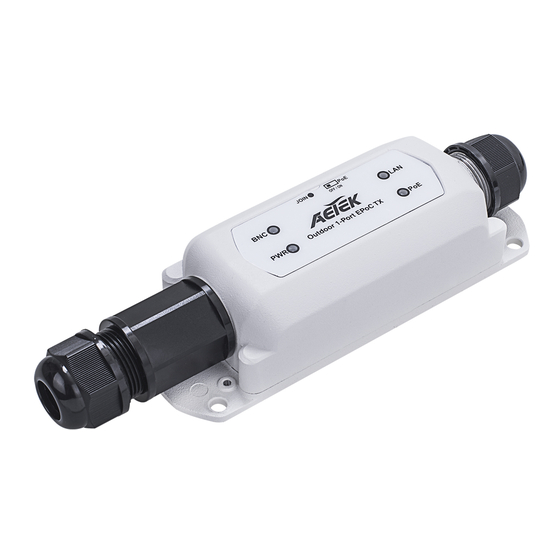

XE22-110-TX Outdoor 1 port EPoC Tx Adapter, 1x BNC, 1x FE RJ45, -30ºC~60ºC
XE22-120-TX Outdoor 2 port EPoC Tx Adapter, 1x BNC, 2x FE RJ45, -30ºC~60ºC

PACKAGE CONTENTS

* 1x Outdoor EPoC Adapter
* 1x Gray Rubber for 6~8mm coaxial cable

IMPORTANT:

1. Use CAT5e or CAT6 UTP/STP cables and RG6 coaxial cables.
2. Please avoid using low quality cables, which will seriously limit the cabling distance and power delivery.
3. Make sure the ventilation openings on the EPoC Adapter are not blocked.

INSTALLED LOCATION:

For further protection against water ingress and high temperature , it is recommended to locate the unit where possible:
• Horizontal installation
• Shaded from sunlight & rainfall

CONNECTION

XE22-120-TX
NOTE:
To disconnect a LAN cable, loosen the cable
gland and pull the cable against the socket
wall towards the side of the locking tab.
XE22-110-TX / XE22-120-TX Outdoor EPoC Adapter
Quick Installation Guide
* 1x Quick Installation Guide
* 1x Black Rubber for 4.5~6.5mm coaxial cable
1200m(3937ft)
XE22-110-TX
1200m(3937ft)
XE11-110-RX
SD-301
Surge Protector
XE10-110-RX
SD-301
Surge Protector
IMPORTANT:
NOTE:
The Outdoor EPoC Adapter & SD-301 Surge Protector must be
grounded using a ground wire between the ground screw and
earth ground.
XE22-110-TX:
XE22-120-TX:
H30-044-90
Network Switch
Ethernet w/PoE
Ethernet
Coax w/Power
Ground screw
* Make sure the grouning
resistance is lower than
0.5Ω.
