INTRODUCTION

Model
Power Source
2E10-110-RX
DC
2E10-110-TX
2E11-110-RX
PoE

PACKAGE CONTENTS

* 1x Quick Installation Guide
IMPORTANT:
1. Use CAT5e or CAT6 UTP/STP cables and 2 wires cables.
2. Please avoid using low quality cables, which will seriously limit the cabling distance and power delivery.
3. Make sure the power source is sufficient for your configuration.
Caution !
You must turn off the 48VDC input on the line from the telephone company before you install EPo2 over existing
telephone line
You must turn off the power input on the doorbell line from the your power box of room controller before you install EPo2
over existing doorbell line
2E10-110-TX

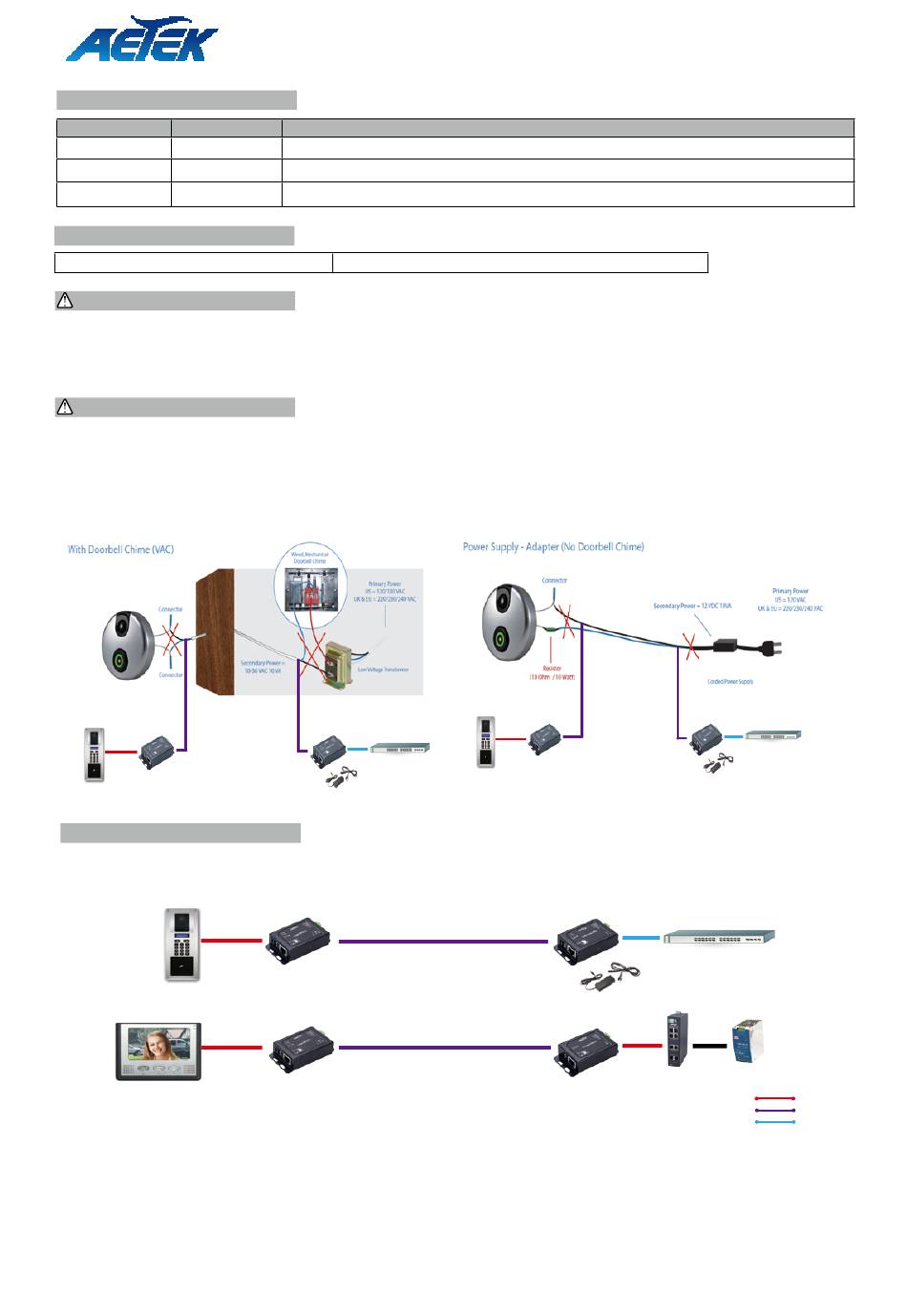

CONNECTION

Application :
2E10-110-RX / 2E11-110-RX / 2E10-110-TX EPo2 Adapter
Quick Installation Guide
Description
EPo2 DC in Rx Adapter, 1x BNC, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC
EPo2 Tx Adapter, 1x BNC, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC
EPo2 PoE in Rx Adapter, 1x BNC, 1x FE RJ45, -20ºC~60ºC
* 1x 56VDC/65W Power Adapter (2E10-110-RX only)
2 wires
Doorbell wire
2E10-110-RX
Network Switch
2E10-110-TX
Telephone line
2E10-110-TX
Doorbell wire
Telephone line
2E10-110-TX
2E10-110-RX
2 wires
Doorbell wire
or
2E11-110-RX
2 wires
or
2 wires
Doorbell wire
2E10-110-RX
Network Switch
Network Switch
NDR-240-48
H30-044-90
240W Power Supply
UPoE Swich
PoE (Data + Power)
2 wires Cables (Data + Power)
Ethernet (Data)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2E11-110-RX and is the answer not in the manual?

Questions and answers

Summary of Contents for AETEK 2E11-110-RX

  • Page 1 2E10-110-RX / 2E11-110-RX / 2E10-110-TX EPo2 Adapter Quick Installation Guide INTRODUCTION Model Power Source Description 2E10-110-RX EPo2 DC in Rx Adapter, 1x BNC, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC 2E10-110-TX EPo2 Tx Adapter, 1x BNC, 1x FE RJ45, 1 DC Jack, -20ºC~60ºC 2E11-110-RX EPo2 PoE in Rx Adapter, 1x BNC, 1x FE RJ45, -20ºC~60ºC...
  • Page 2 ⃰ When Connect PoE Switch Data or PoE port ,The DIP Switch need off. All specifications are subject to change without noice. Copyright © 2018 AETEK INC. All rights reserved. AETEK INC. 3F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
